Battery

Starter battery

Updated 1/14/2020

The electrical system is single-pole and uses the chassis and engine casing as a conductor.

The starter battery is used to start up the electrical system and drive the starter motor as well as other electrical equipment in the car.

The starter battery should be replaced by a workshop.

The car has a voltage-regulated AC alternator.

The starter battery is a 12 V AGM battery, designed for the carbon dioxide reducing functions, Start/Stop and regenerative charging, and to support the functionality of the car's different systems.

The service life and function of the starter battery is influenced by factors such as the number of starts, discharging, driving style, driving conditions, climatic conditions etc.

  • Never disconnect the starter battery when the engine is running.
  • Check that the cables to the starter battery are correctly connected and properly tightened.

Warning

  • The battery can generate oxyhydrogen gas, which is highly explosive. A spark can be formed if a jump lead is connected incorrectly, and this can be enough for the battery to explode.
  • The battery contains sulphuric acid, which can cause serious burns.
  • If sulphuric acid comes into contact with eyes, skin or clothing, flush with large quantities of water. If acid splashes into the eyes - seek medical attention immediately.

When connecting an external starter battery or battery charger, use the car's charging points in the engine compartment. The battery terminals on the car's starter battery in the cargo area must not be used.

During charging, both the starter battery and the support battery are charged.

Positive charging point
Negative charging point

Important

When charging the starter battery and the support battery, only use a modern battery charger with controlled charging voltage. Fast charging function must not be used since it may damage the battery.

Important

If the following instruction is not observed then the energy saving function for infotainment may be temporarily disengaged, and/or the message in the driver display about the starter battery's state of charge may be temporarily inapplicable, following the connection of an external starter battery or battery charger:

  • The negative battery terminal on the car's starter battery must never be used for connecting an external starter battery or battery charger - only the car's negative charging point may be used as the grounding point.

Note

The life of the battery is shortened if it becomes discharged repeatedly.

The life of the battery is affected by several factors, including driving conditions and climate. Battery starting capacity decreases gradually with time and therefore needs to be recharged if the car is not used for a longer time or when it is only driven short distances. Extreme cold further limits starting capacity.

To maintain the battery in good condition, at least 15 minutes of driving/week is recommended or that the battery is connected to a battery charger with automatic trickle charging.

A battery that is kept fully charged has a maximum service life.

The starter battery is located in the cargo area.

The starter battery is located in the cargo area.

The following table shows specifications for the starter battery, which is available in two variants, depending on car's model variant.

Battery

H7 AGM

H8 AGM

Voltage (V)

12

12

Cold start capacityAccording to EN standard. - CCACold Cranking Amperes. (A)

800

850

Size , L×W×H (mm)

315×175×190

353×175×190

Capacity (Ah)

80

95

Important

The H8 AGM battery has a retaining strap. Make sure the retaining strap is properly tightened.

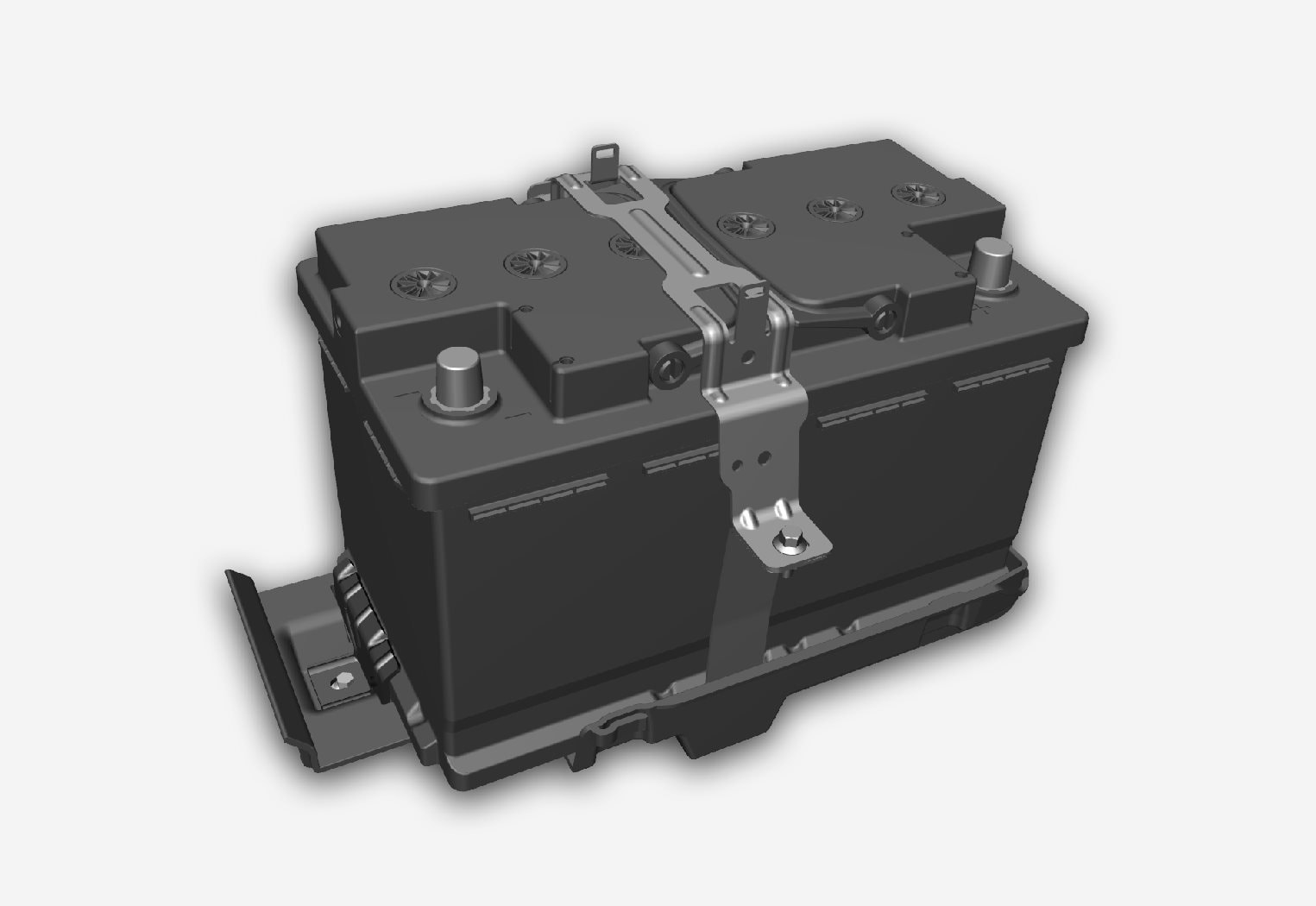

H8 AGM battery with straps.

H8 AGM battery with straps.

There are no straps for the H7 AGM battery.

H7 AGM battery.

H7 AGM battery.

Volvo recommends entrusting battery replacement to an authorised Volvo workshop.

Important

When replacing the starter battery or support battery, a battery of AGMAbsorbed Glass Mat. type must be fitted.

Important

If the starter battery is replaced, make sure you replace it with a battery with the same cold starting capacity and type as the original battery (see the label on the battery).

Note

The starter battery's container size must be consistent with the dimensions for the original battery.
