Manual charging cable release for non-responsive key (hybrid vehicles)


When the door is open after being unlocked using the key blade, the alarm is triggered.
Px-22w23-Latest info-Emeregency open door handle

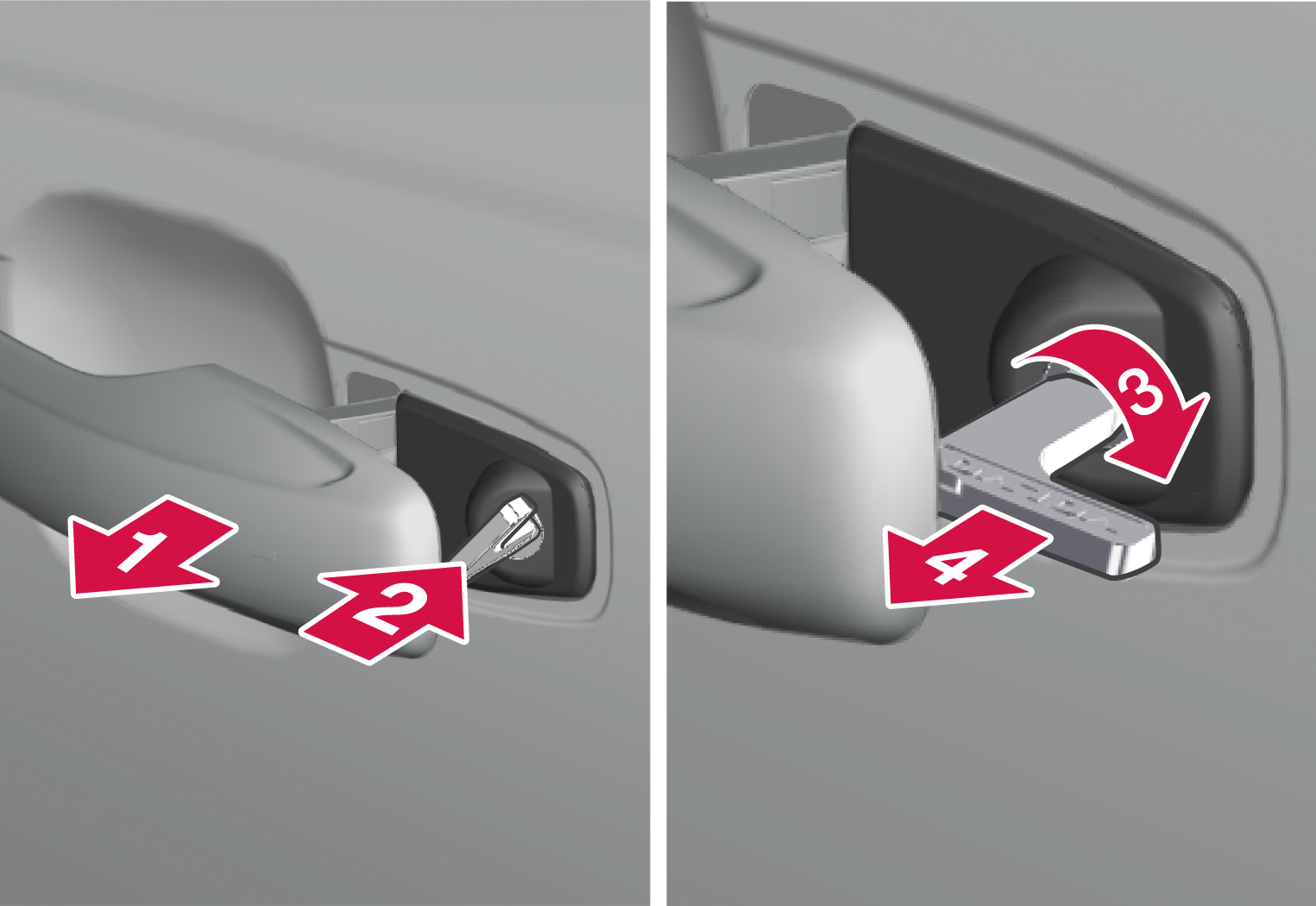

Pull the front left-hand door handle to its end position to access the lock cylinder.

Insert the key blade in the lock cylinder.
Turn the key clockwise 45 degrees so that the key blade is pointing straight rearward.
Turn the key blade back 45 degrees to its starting position. Remove the key blade from the lock cylinder and release the handle so that the rear section of the handle is resting against the vehicle again.
Open the door.
Now the alarm is triggered, proceed with the next step to deactivate it.
P5-22w23-Latest information-Key compartment

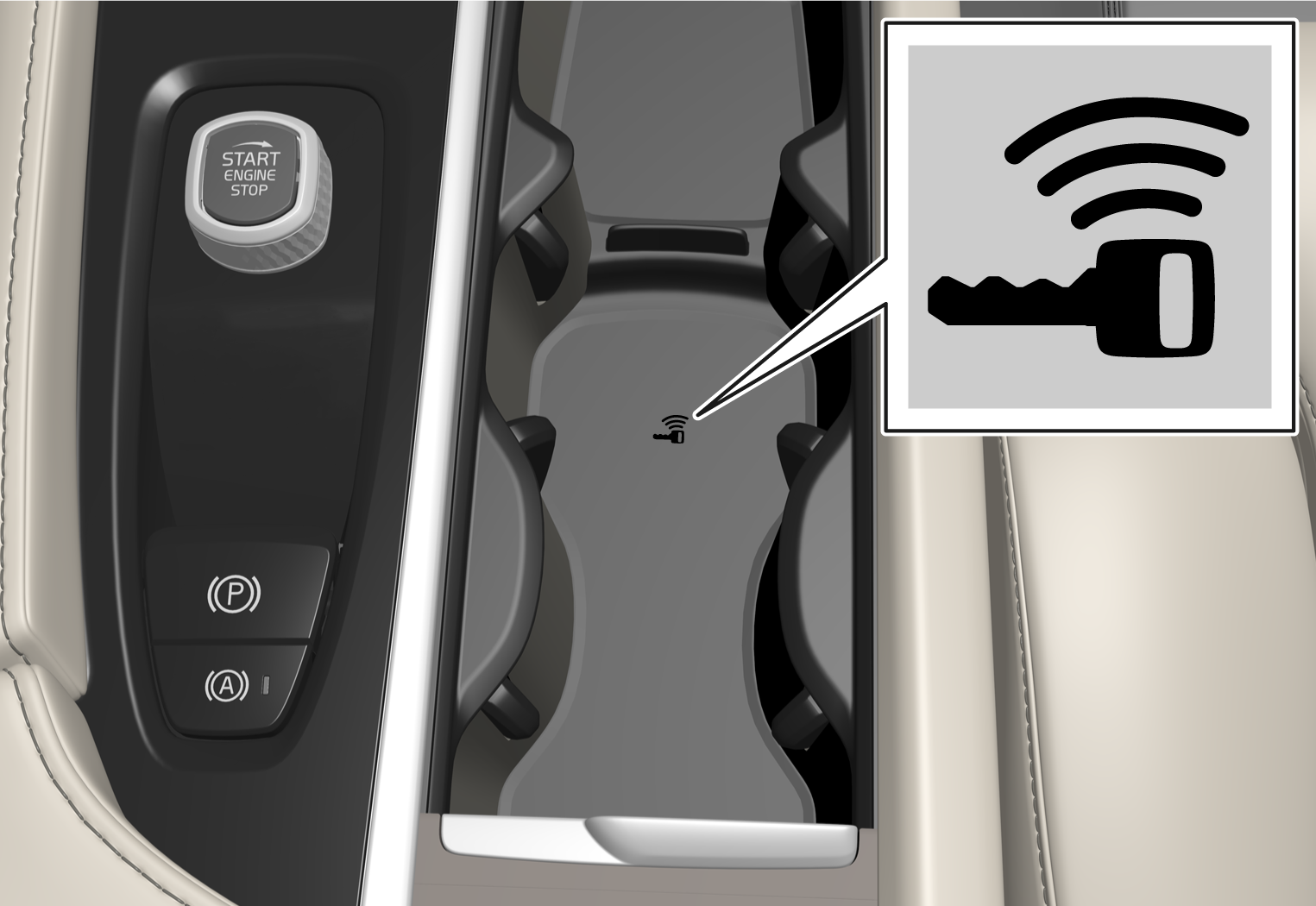

Place the remote control key on the symbol in the storage compartment.

P5-22w23-Latest information-Engine start button

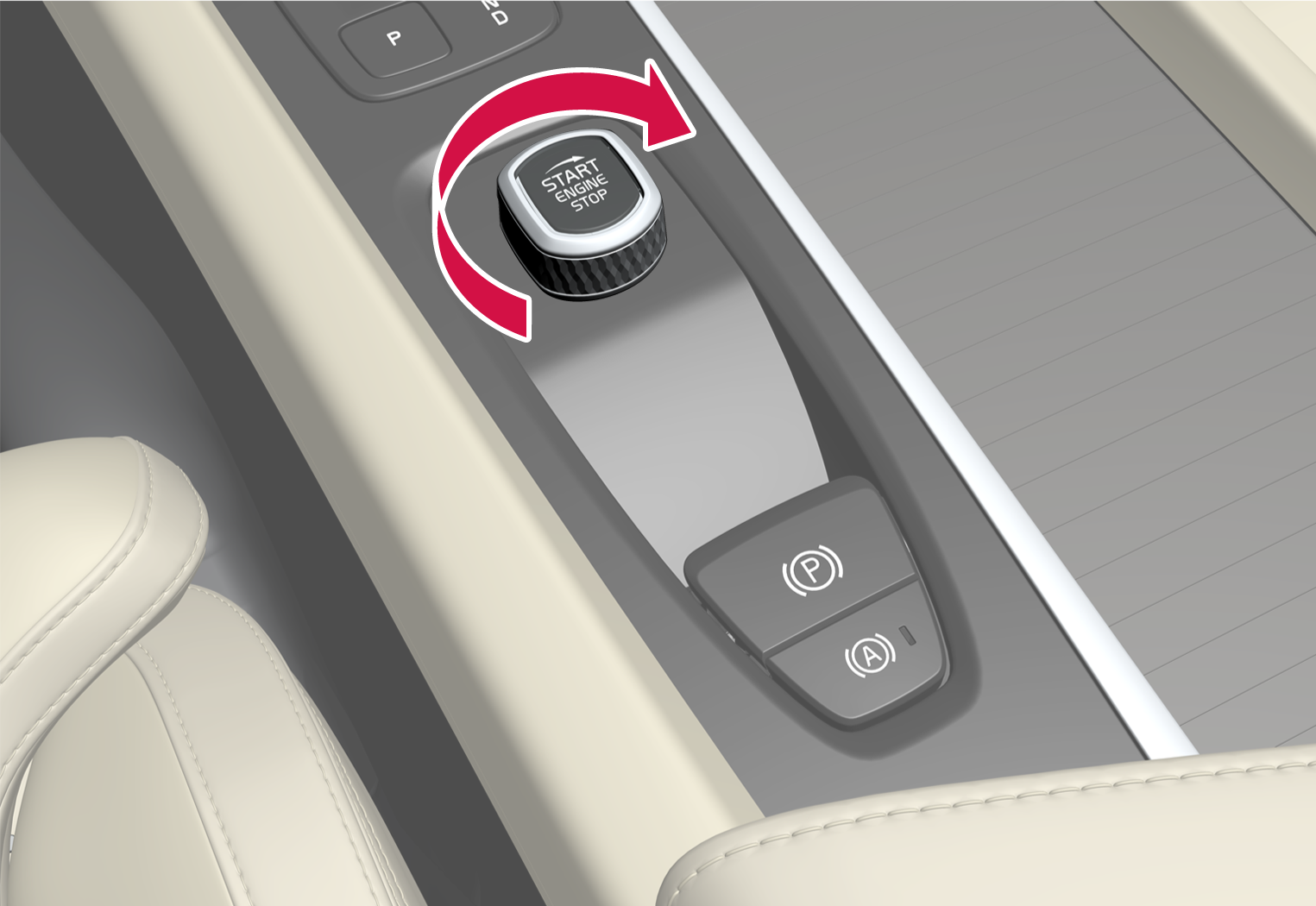

Turn the start knob as shown

It is important that you do not press the brake pedal at this point.

Px-22w23-Latest information-Central lock button

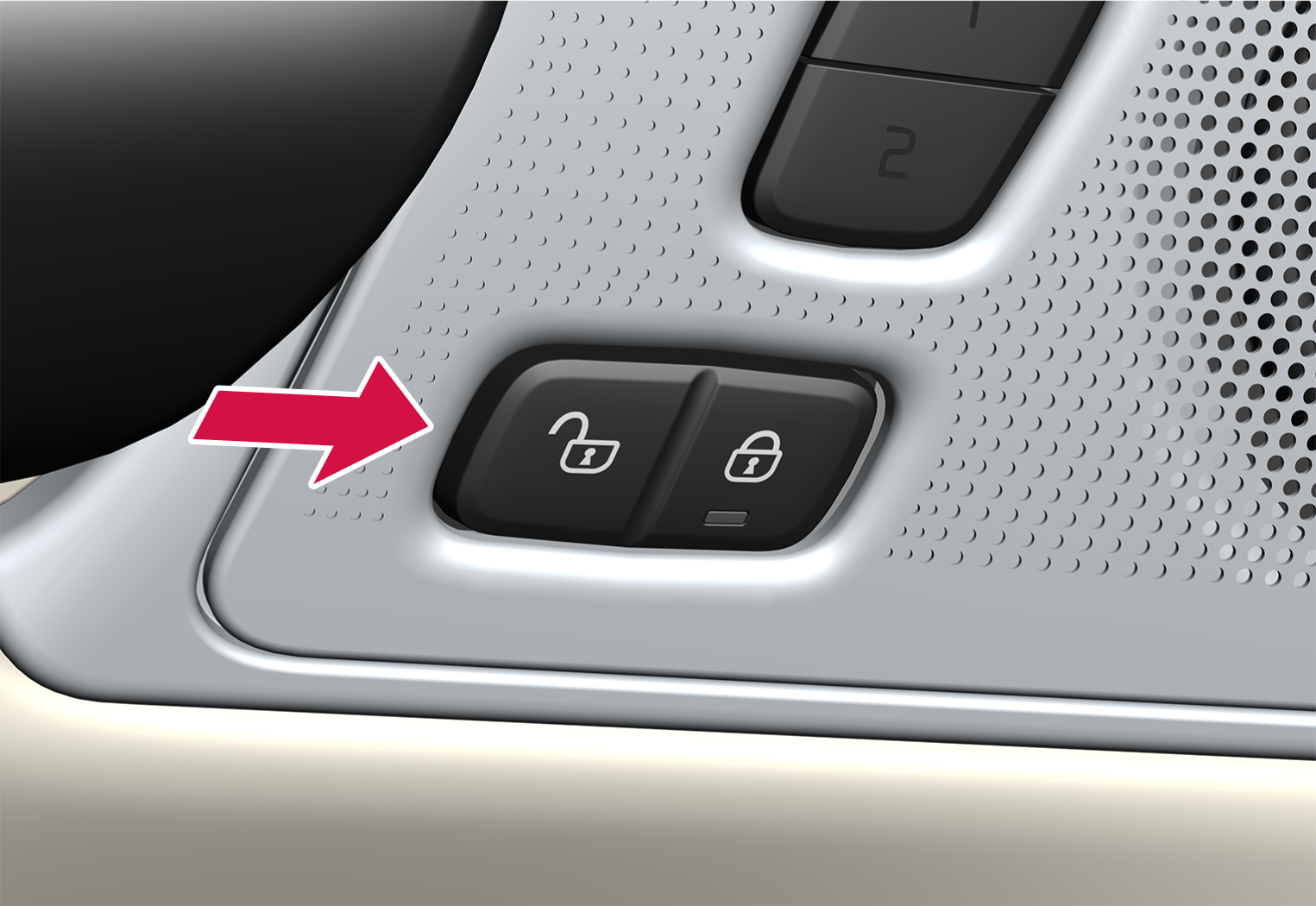

Press the central lock button as shown.

Now you can unplug the charging cable. If you are not, please repeat the procedure from step 6 to step 8.
