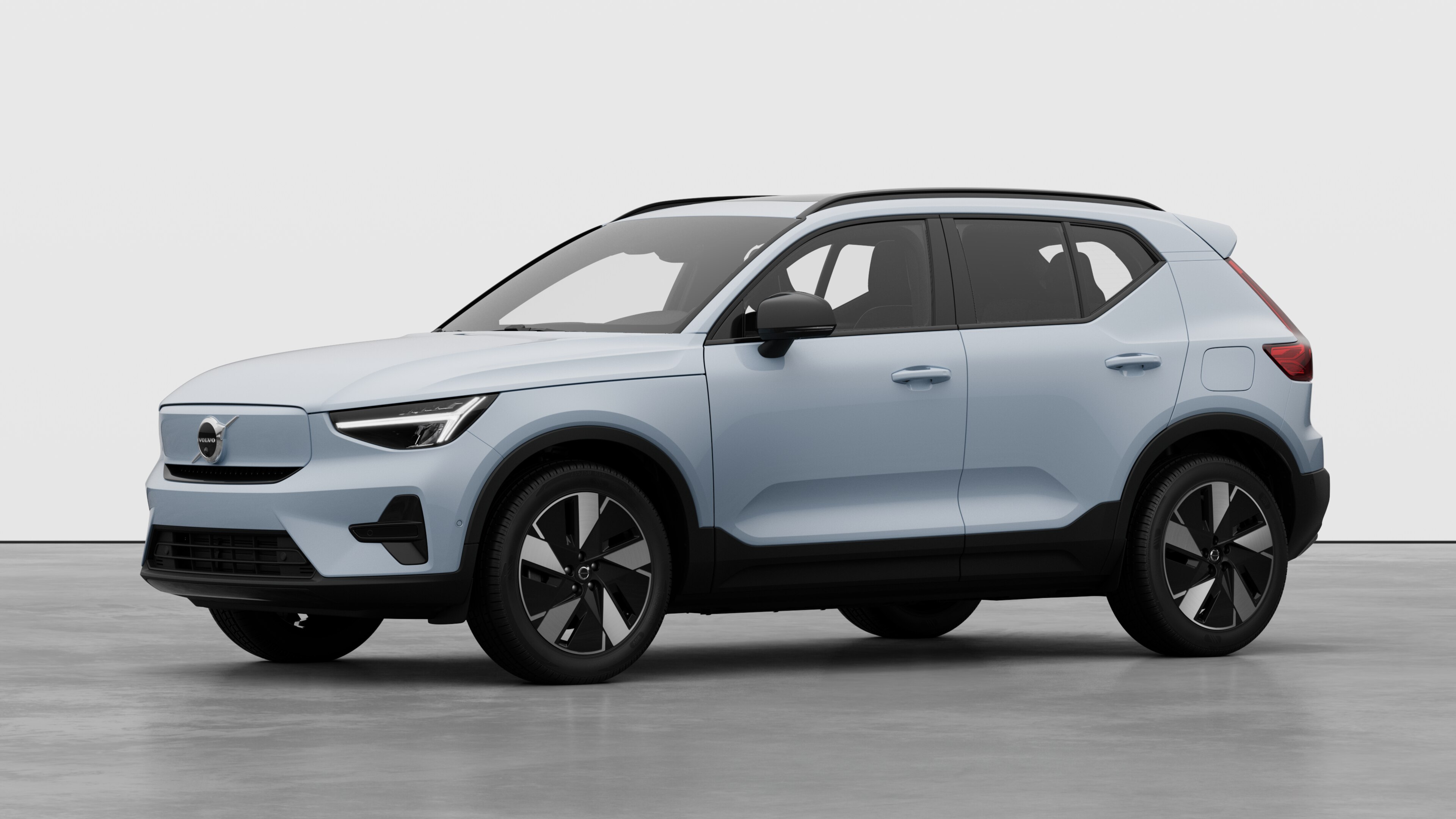

Explore EX40 specifications
Powertrain options. Key dimensions. Standard features and upgrades. All you need to find the right Volvo car for you.
Car dimensions
Exterior
- Vehicle height at curb weight with one person
- 1.647 mm
- Width (mirrors incl)
- 2.034 mm
- Front track width
- 1.601 mm
- Width
- 1.873 mm
- Width (mirrors folded)
- 1.938 mm
- Rear track width
- 1.608 mm
- Vehicle length
- 4.440 mm
- Wheelbase
- 2.702 mm
- Turning circle
- 11 m
Interior
- Head room front with panoramic roof
- 955 mm
- Shoulder room rear
- 1.429 mm
- Hip room front
- 1.390 mm
- Head room rear with panoramic roof
- 974 mm
- Leg room front
- 1.040 mm
- Hip room rear
- 1.388 mm
- Shoulder room front
- 1.440 mm
- Leg room rear
- 917 mm
Storage
- Cargo floor width between wheel housing
- 1.004 mm
- Second seatback to tailgate - top of second seatback
- 676 mm
- First seatback to tailgate - top of first seatback
- 1.527 mm
- Luggage capacity (open) - second row up
- 410 l
- Luggage capacity (open) - seats folded
- 965 l
- Luggage capacity (max) - second row up
- 536 l
- Luggage capacity (max) - seats folded
- 1.400 l
- Cargo capacity (front)
- 31 l
Platform
Platform
- Fuel Type
- Electric
- Driveline
- RWD
- Transmission
- Automatic
- Number of seats
- 5
- Weight (running order mass)
- 2.040 kg
- Gross vehicle weight
- 2470 kg
- Trailer max weight
- 1.500 kg
- Roof load max weight
- 75 kg
Performance
- Electric range
- Up to 565 km
- Electric energy consumption
- 16.8 kWh/100km
- Power
- 175 kW / 238 hp
- Max torque
- 420 Nm
- 0-100 km/h
- 7.3 s
- Top speed
- 180 km/h
- Environmental classification
- Euro6e
Charging
- Battery energy (nominal)
- 69 kWh
- Battery charging duration 0-100% (3-phase 16A)
- 8 h
- Battery charging duration 10-80% (DC 200kW)
- 33 m
Features and upgrades
Equipment level
Category
Not included
Optional
Included
Safety & Security
Tech & Sound
Climate
Drivers support
Exterior
Seats
Charging
Performance
Interior
Pack & Load
Features depicted may not be standard or available for all markets, equipment levels and powertrain options. Google services are enabled through a digital services package that is included for four years. After this period, new terms and fees will apply if you choose to renew. Google, Google Maps and Google Play are trademarks of Google LLC.
