Fuses under glovebox

Fuses under the glovebox protect, amongst other things, the 230 V socket, displays and door modules.

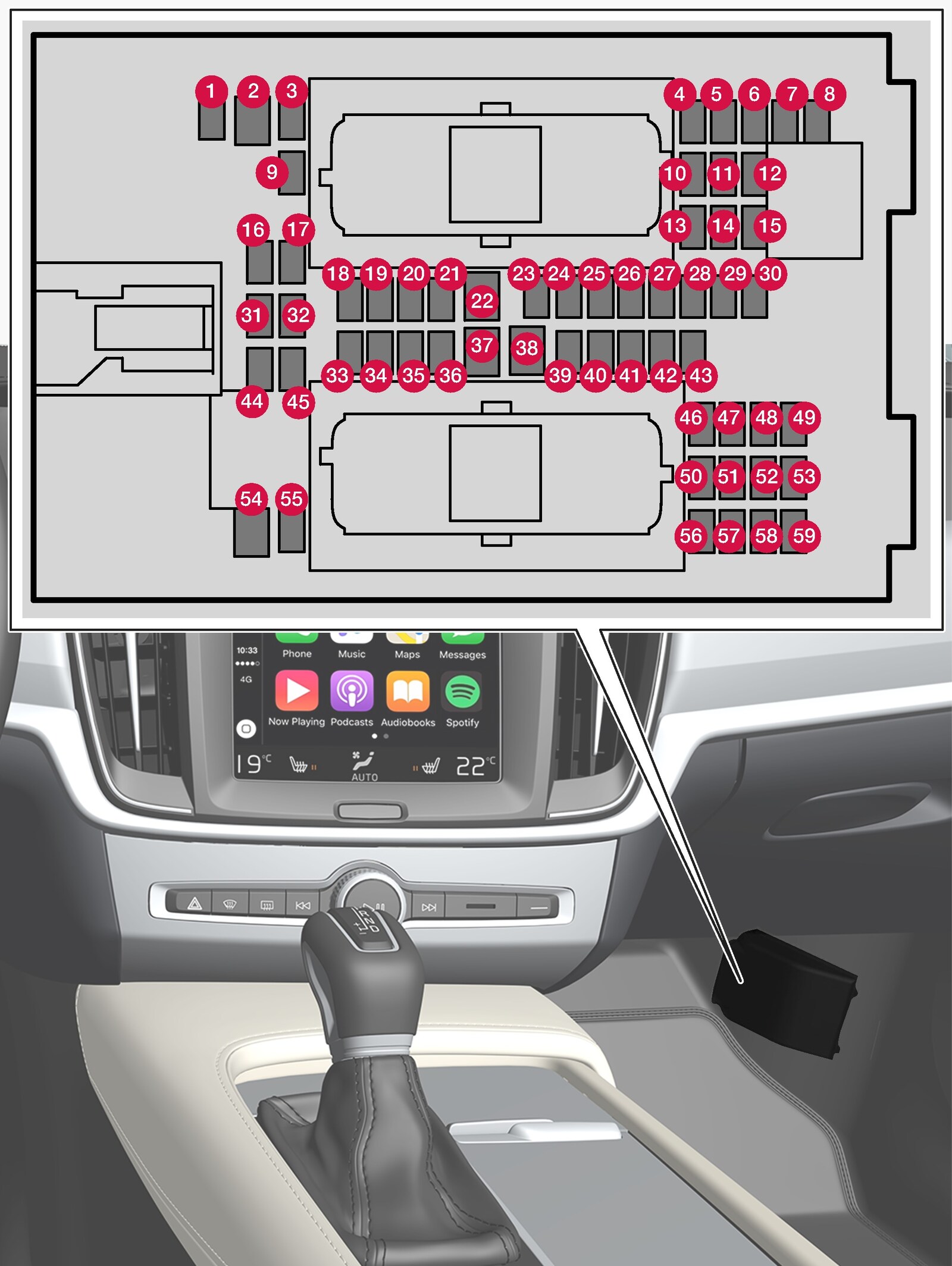

P5-1617-S90/V90 CJB Fuses

On the inside of the cover there are tweezers that facilitate the procedure for the removal and fitting of fuses.

The fuse box in the engine compartment also provides space for several spare fuses.


  • Fuses 1, 3-21, 23-36, 39-53 and 55-59 are of the "Micro" type.
  • Fuses 2, 22, 37-38 and 54 are of the "MCase" type and should be replaced by a workshop 1.
230 V socket in tunnel console, by legroom for rear seat*30
Movement detector*5
Media player5
Driver display5
Keypad in centre console5
Sun sensor5
Steering wheel module5
Module for start knob and for parking brake control5
Steering wheel module for heated steering wheel*15
Control module for climate control system10
Steering lock7.5
Diagnostic socket OBDII10
Centre display5
Fan module for climate control system, front40
Controls lighting; Interior lighting; Dimming of interior rearview mirror*; Rain and light sensor*; Keypad in tunnel console, by legroom for rear seat*; Power front seats*; Control panels in rear doors7.5
Control module for driver support functions5
Head-up display*5
Passenger compartment lighting5
Display in roof console (Seatbelt reminder/Indicator for airbag on the front passenger seat)5
Humidity sensor5
Door module in right-hand rear door20
Fuses in cargo area10
Control module for Internet-connected car; Control module for telematics5
Door module in left-hand rear door20
Audio control module (amplifier) (certain variants)40
Module for multi-band antenna5
Modules for seat comfort (massage) front*5
Control module for fuel pump15
Seat heating, driver's side front15
Seat heating, passenger side front15
Coolant pump10
Door module in left-hand front door20
Control module for suspension (active chassis)*20
Sensus control module10
Door module in right-hand front door20
TV* (certain markets)5
Primary fuse for fuses 53 and 5815
  1. 1 An authorised Volvo workshop is recommended.
  2. 2 Ampere
  3. * Option/accessory.
