Door and seatbelt reminder

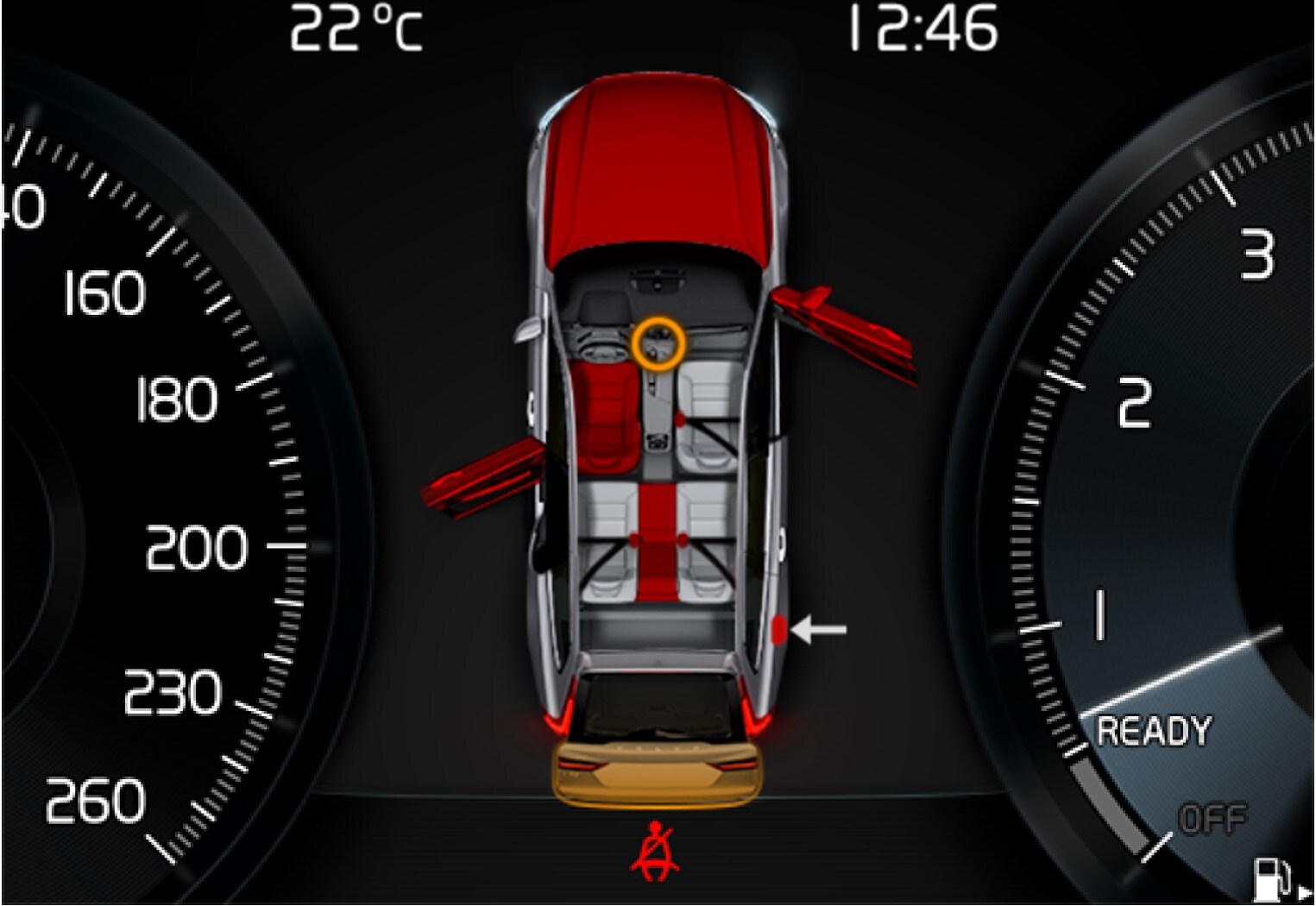

Driver display graphics
The driver display's graphics show which seats in the car are occupied by belted and unbelted passengers.
The same graphic also shows if the bonnet, boot lid, fuel filler flap or any door is open.
The graphic can be acknowledged by pressing the O button on the right-hand steering wheel keypad.

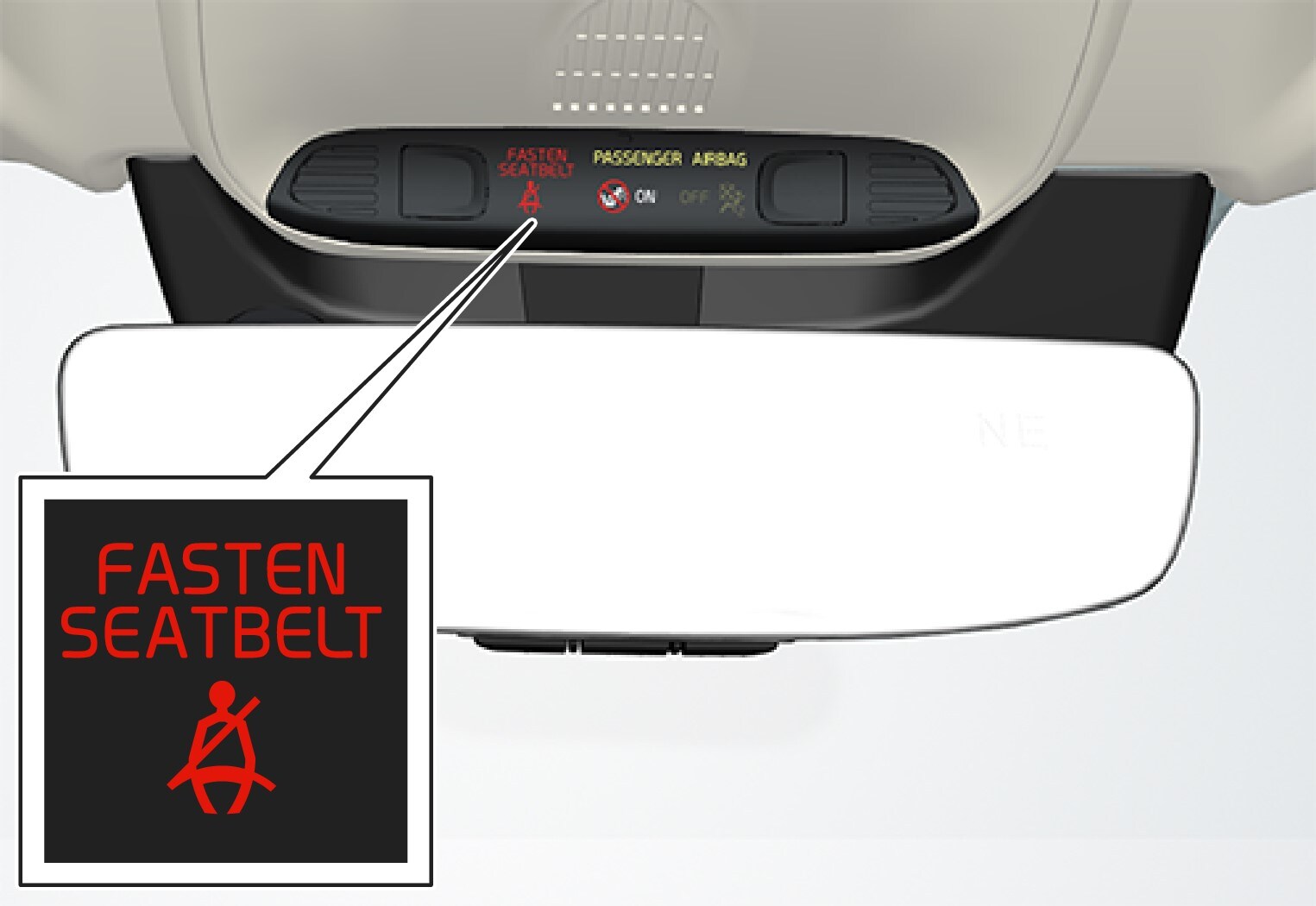

A visual reminder is given in the roof console and by means of the warning symbol in the driver display.
The acoustic reminder is dependent on speed, driving time and distance.
The belt status of the driver and passengers is shown in the driver display graphics when a belt is buckled or unbuckled.
Child seats are not covered by the seatbelt reminder system.
A visual and acoustic reminder remind the driver and front seat passenger to use a seatbelt if either of them is not wearing one.
- Provides information on which seatbelts are being used in the rear seat. The driver display's graphics are shown when the seatbelts are in use.
- Reminding that a seatbelt in the rear seat is unfastened during a journey by means of a visual and acoustic reminder. The reminder will cease once the seatbelt has been put on again.
Reminder for doors, bonnet, boot lid and fuel filler flap
If the bonnet, boot lid, fuel filler flap or any door is not closed properly, the graphic in the driver display shows what is open. Stop the car in a safe place as soon as possible and close the source of the warning.
If the car is driven at a speed lower than approx. 10 km/h (6 mph) then the driver display's information symbol illuminates.
If the car is driven at a speed higher than approx. 10 km/h (6 mph) then the driver display's warning symbol illuminates.
