Specifications for towbar*

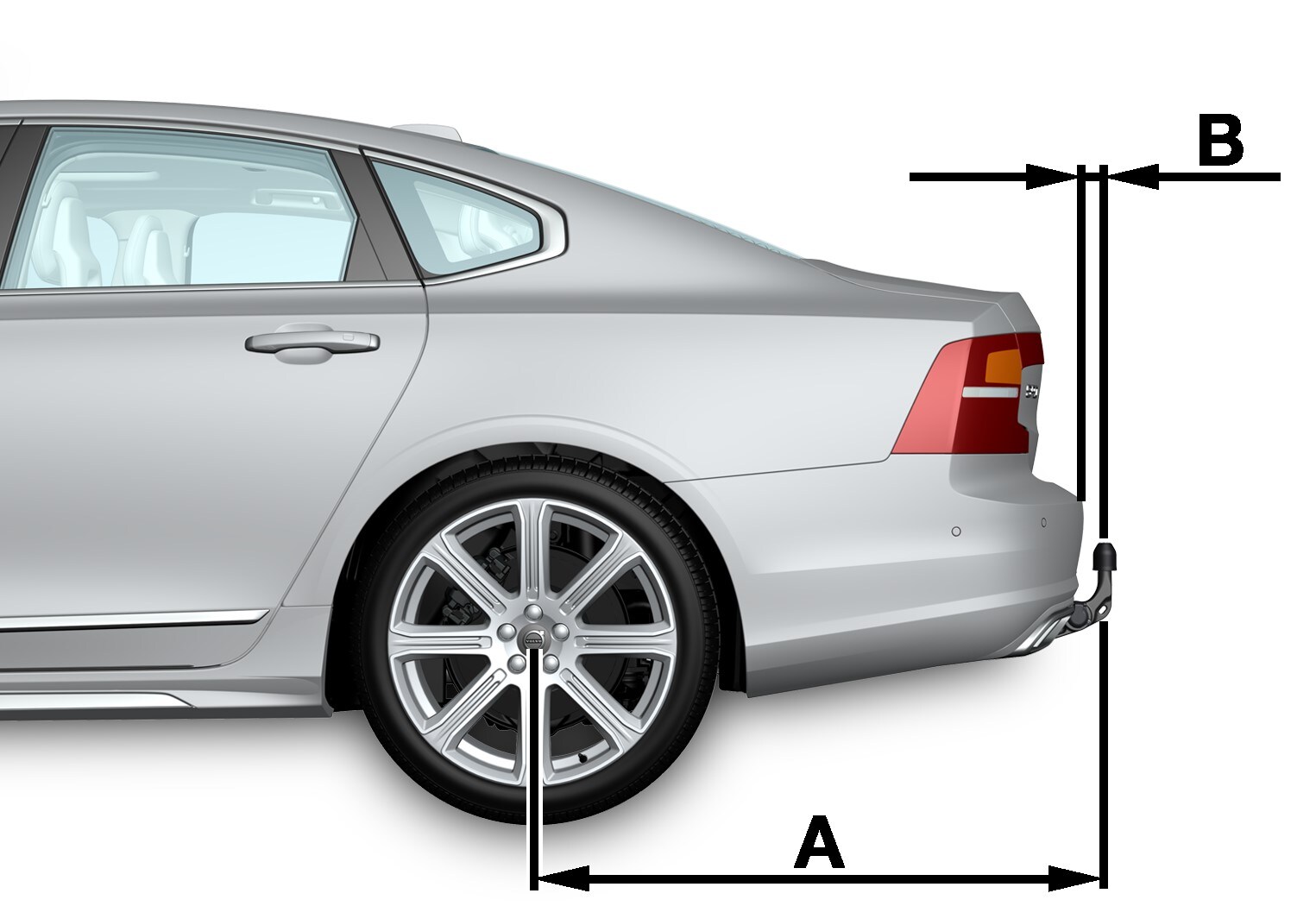

Dimensions and mounting points for towbar.
| Dimensions, mounting points in mm (inches) | |
|---|---|
| A | 1229 (48,4) |
| B | 111,8 (4,4) |
| C | 875 (34,4) |
| D | 437,5 (17,2) |
| E | See the image above |
| F | 310,5 (12,2) |
| G | Ball centre |
S90
2018
2018
| Dimensions, mounting points in mm (inches) | |
|---|---|
| A | 1229 (48,4) |
| B | 111,8 (4,4) |
| C | 875 (34,4) |
| D | 437,5 (17,2) |
| E | See the image above |
| F | 310,5 (12,2) |
| G | Ball centre |
