Instruments and controls in left-hand drive car

The overviews show where the displays and controls near the driver are located.

Steering wheel and instrument panel

16w17 - SPA - Instruments and controls 1 LHD
  1. Position lamps, daytime running lights, dipped beam, main beam, direction indicators, front fog lamps/cornering lights*, rear fog lamp, resetting the trip meter
  2. Steering wheel paddles for manual gear changing in an automatic gearbox*
  3. Head-up display*
  4. Driver display
  5. Wipers and washing, rain sensor*
  6. Right-hand steering wheel keypad
  7. Steering wheel adjustment
  8. Horn
  9. Left-hand steering wheel keypad
  10. Bonnet opening
  11. Display lighting, boot lid unlocking/opening*/closing*, halogen headlamp levelling

Roof console

P5-1507 Instruments and controls 5
  1. Front reading lamps and interior lighting
  2. Sunroof
  3. Display in roof console
  4. Manual dimming of interior rearview mirror

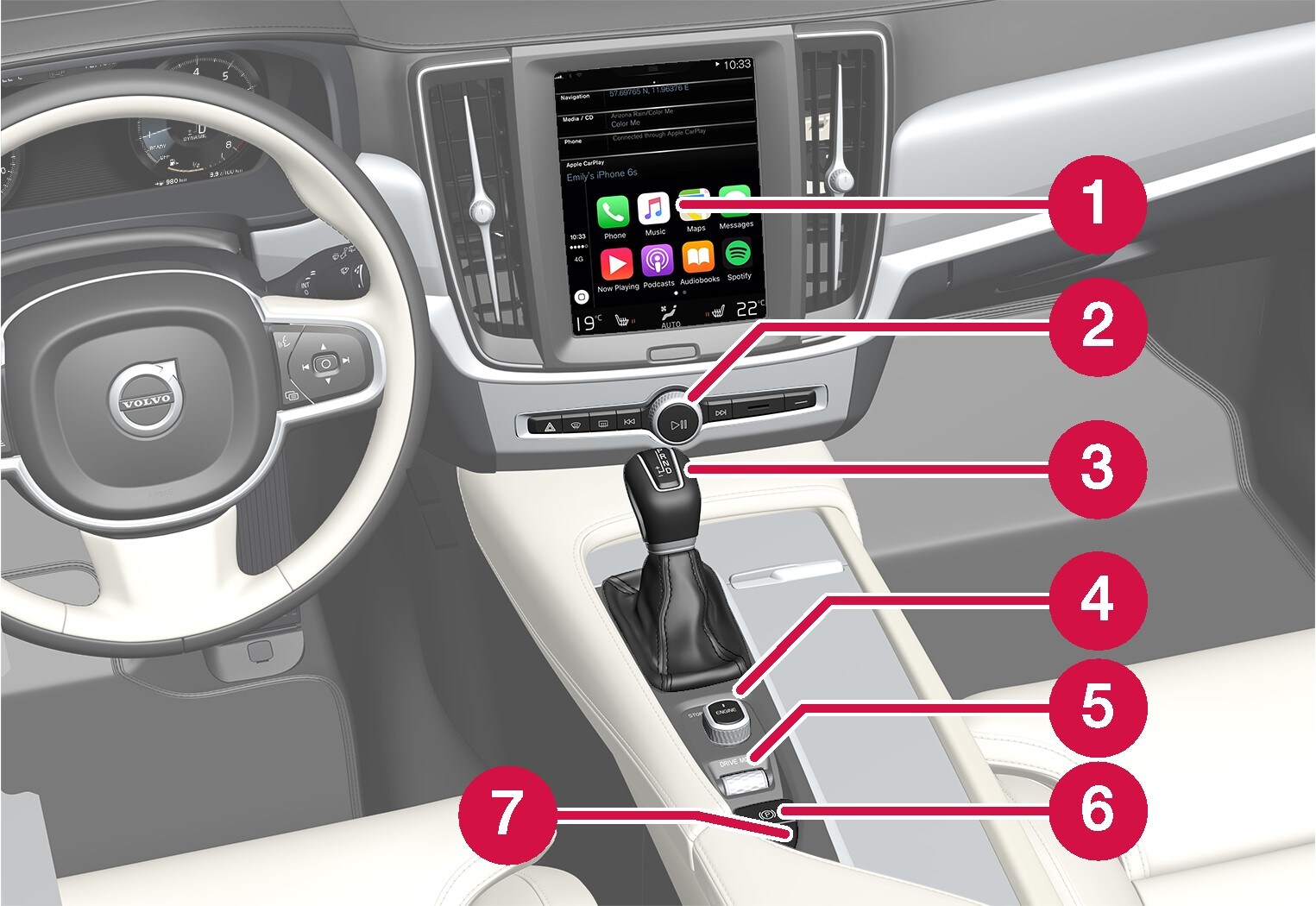

Centre and tunnel console

16w17 - SPA - Instruments and controls 3 LHD
  1. Centre display
  2. Hazard warning flashers, defrosting, media
  3. Gear selector
  4. Start knob
  5. Drive mode control*
  6. Parking brake
  7. Automatic braking when stationary

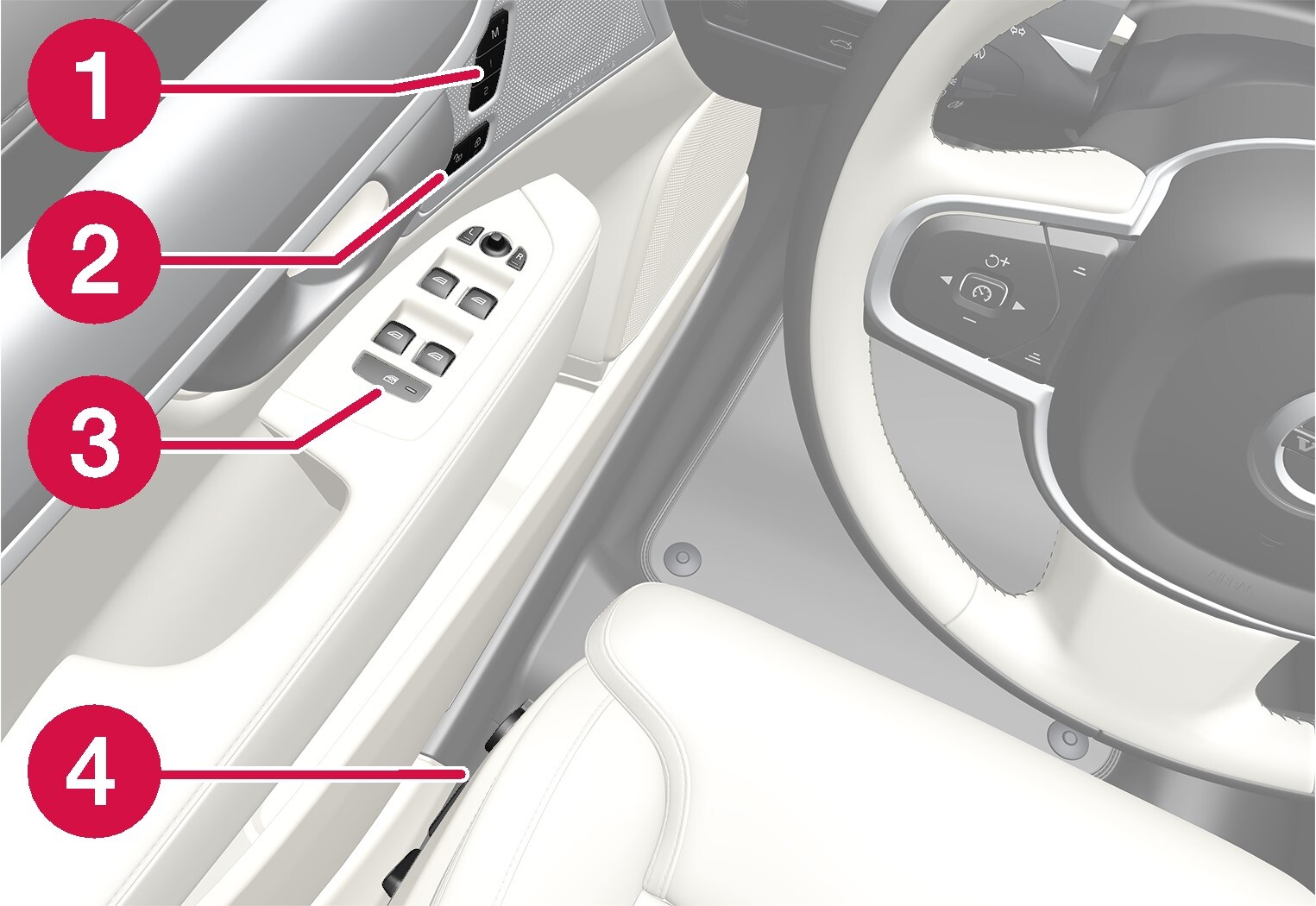

Driver's door

16w17 - SPA - Instruments and controls 4 LHD
  1. Memories for power front seat*, door mirror and head-up display* settings
  2. Central locking
  3. Power windows, door mirrors, electric child safety lock*
  4. Adjusting front seat
  1. * Option/accessory.
