2019 Early

Replacing the main beam lamp

Updated 03/19/2020
The main beam bulb in the halogen headlamp can be replaced without assistance from a workshop.


Never touch the glass part of the bulbs with your fingers. Grease from your fingers is vaporised by the heat, coating the reflector and then causing damage.

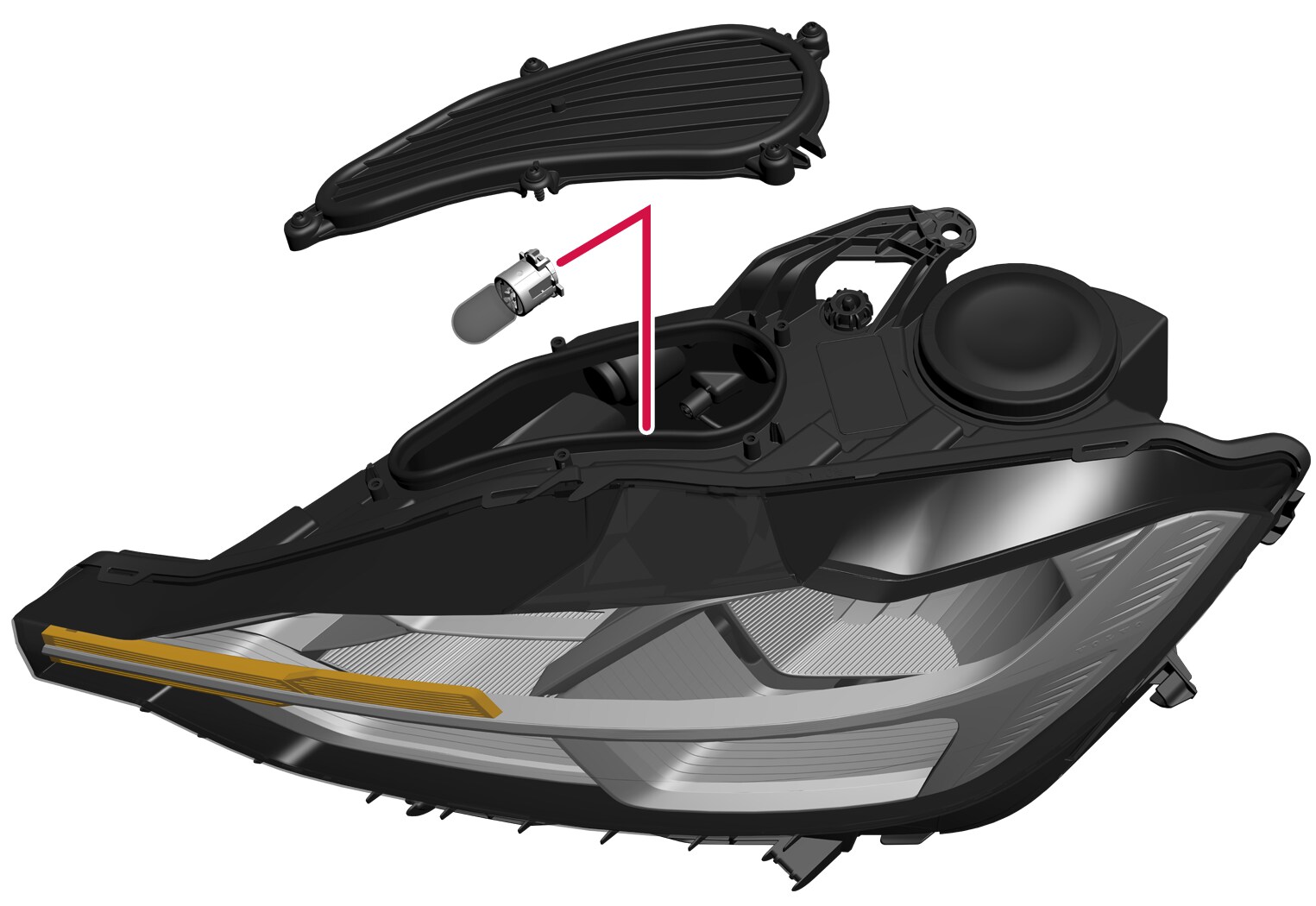

P5-1717-V426-High beam bulb replacement
Left-hand headlamp.
Detach the bulb by turning the bulb holder upward and then pulling straight out.
Carefully prize the plastic cover at the connector's lock lug so that the lock lug releases.
Unplug the connector from the bulb.
Replace the bulb.
Fit the bulb in the socket and turn downward.
