Exterior lamp positions

The exterior lighting of the car uses a number of different lamps. An LED1 type lamp must be replaced by a workshop. An authorised Volvo workshop is recommended.

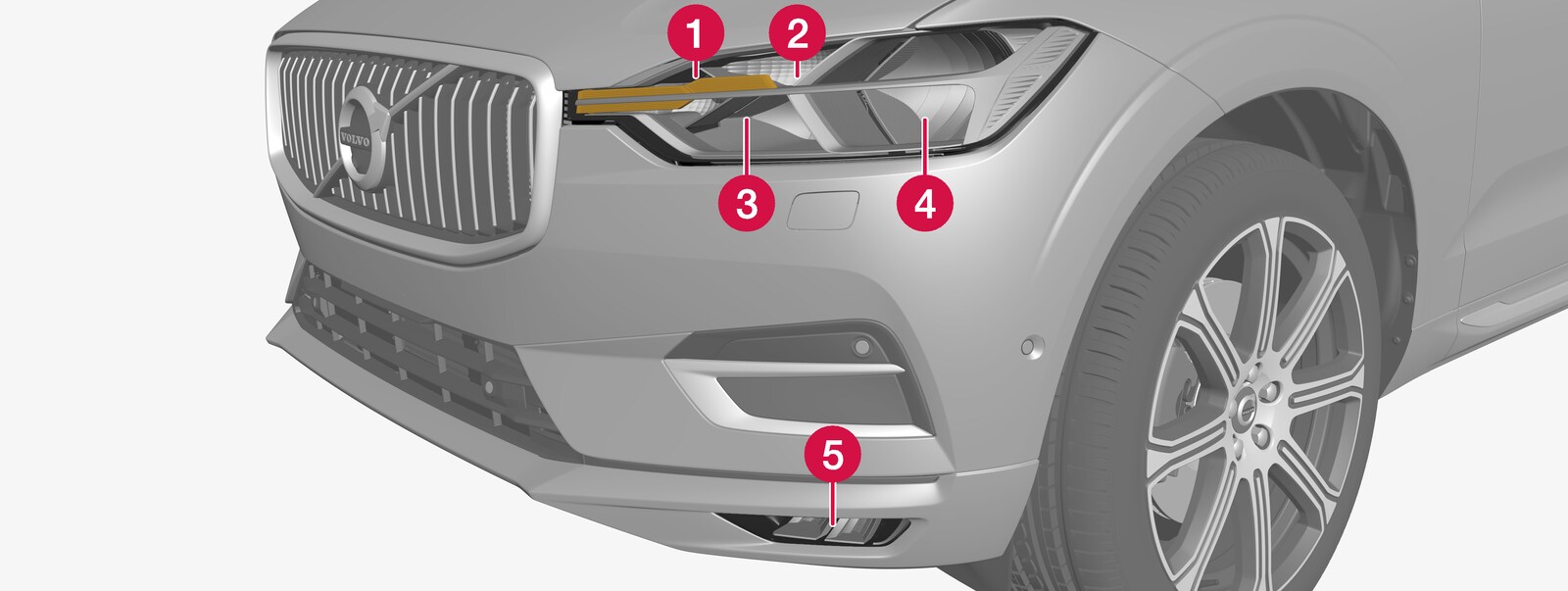

Lamps, front (car with halogen headlamps)

P5-1717-V426-Front lamp positioning
  1. P5-Icon red circle 1Indicator
  2. P5-Icon red circle 2Daytime running lights/position lamps
  3. P5-Icon red circle 3Main beam
  4. P5-Icon red circle 4Dipped beam
  5. P5-Icon red circle 5Front fog lamps/cornering lights* (LED)
  1. 1 LED (Light Emmitting Diode)
  2. * Option/accessory.
