2019 Early

Replacing the dipped beam bulb

Updated 03/19/2020
The dipped beam bulb in the halogen headlamp can be replaced without assistance from a workshop.


Never touch the glass part of the bulbs with your fingers. Grease from your fingers is vaporised by the heat, coating the reflector and then causing damage.

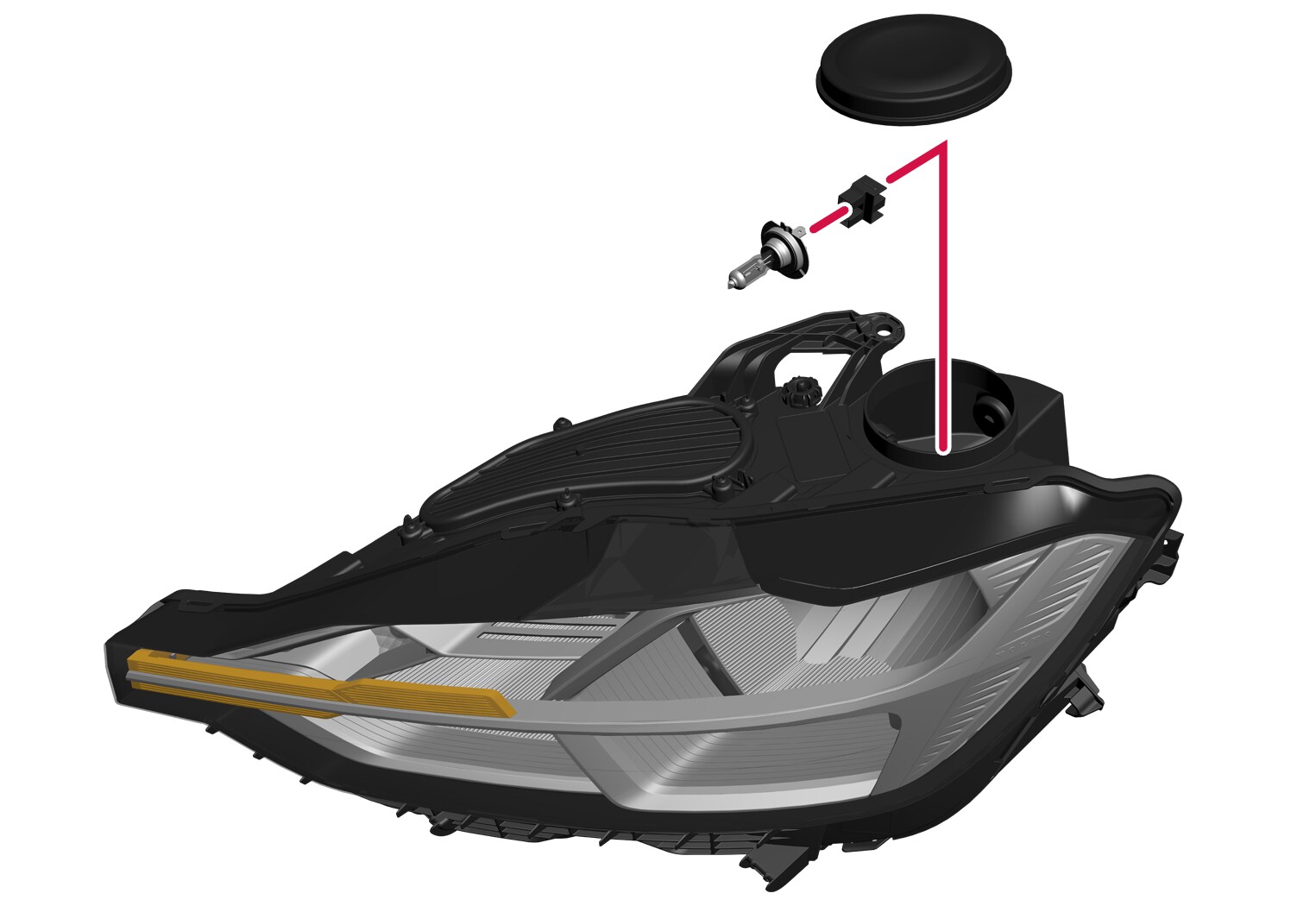

P5-1717-V426-Low beam bulb replacement
Left-hand headlamp.
Detach the headlamp's round rubber cover.
Unplug the connector from the bulb.
Detach the bulb by pushing it gently upwards and pulling it straight out.
Fit a new bulb in the socket. The bulb's guide pin must be aimed straight upwards.
Press in the connector.
Refit the headlamp's round rubber cover.
