Replacing the rear fog lamp bulb should be performed by a workshop - an authorised Volvo workshop is recommended.
The rear fog lamp bulb is replaced as follows:
Rubber casing over the boot lid lock.
Boot lid keypad.
Boot lid closing handle.
Both of the closing handle's lock lugs must be pressed in simultaneously before the handle can be folded out and removed.
The panel's fastening clips.
The rectangular section of the clips is aligned in the longitudinal direction of the car.
The hinge's plastic guard is fitted with a plastic rivet and three latches.
Points to remember when the plastic rivet for the hinge's plastic guard is refitted:
- Before you can use the plastic rivet for refitting, you must first press its centre pin backwards as far as it protrudes from the plastic rivet.
- When the hinge's plastic guard has been fixed in place, press the plastic rivet into the hole in the plastic guard.
- Finally, press the pin into the plastic rivet until the end surface is level with the surface of the plastic rivet.
Rear fog lamp on left-hand side

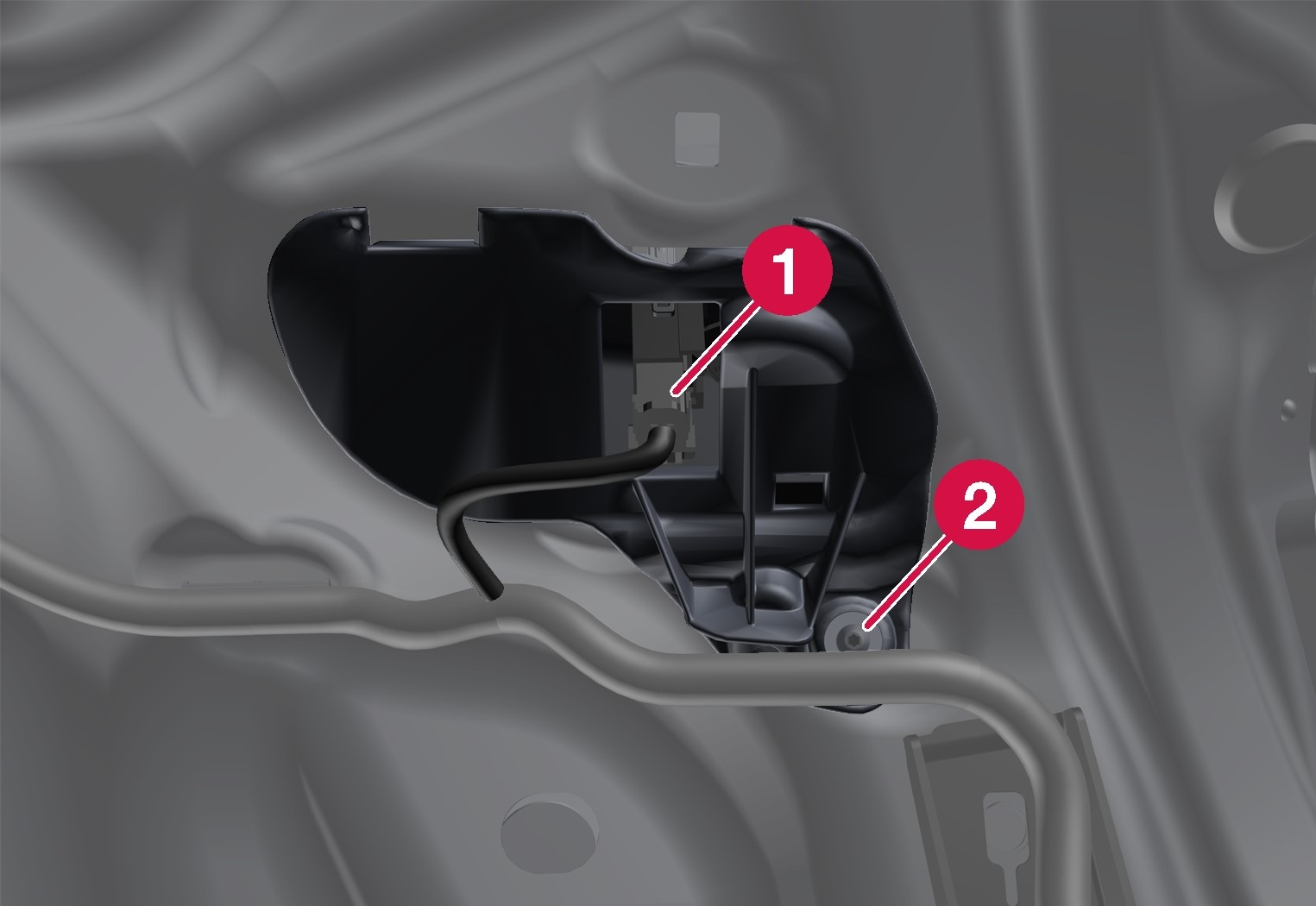

Lamp housing on left-hand side.
Rear fog lamp on right-hand side
Cars with the rear fog lamp on the right-hand side have a cover over the bulb holder - which is why there are several additional steps before the bulb can be replaced.
Lamp housing on the right-hand side with cover.
Lamp housing on right-hand side.
