Lane assistance

Symbols and messages for Lane assistance*

Updated 7/23/2018

A number of symbols and messages regarding the Lane assistance versions Lane Keeping Aid (LKA) and Lane Departure Warning (LDW) can be shown in the driver display.

Symbol in the driver display

Lane assistance is visualised by symbols in the driver display depending on the situation.

Here are some examples of symbols and the situations in which they are shown:

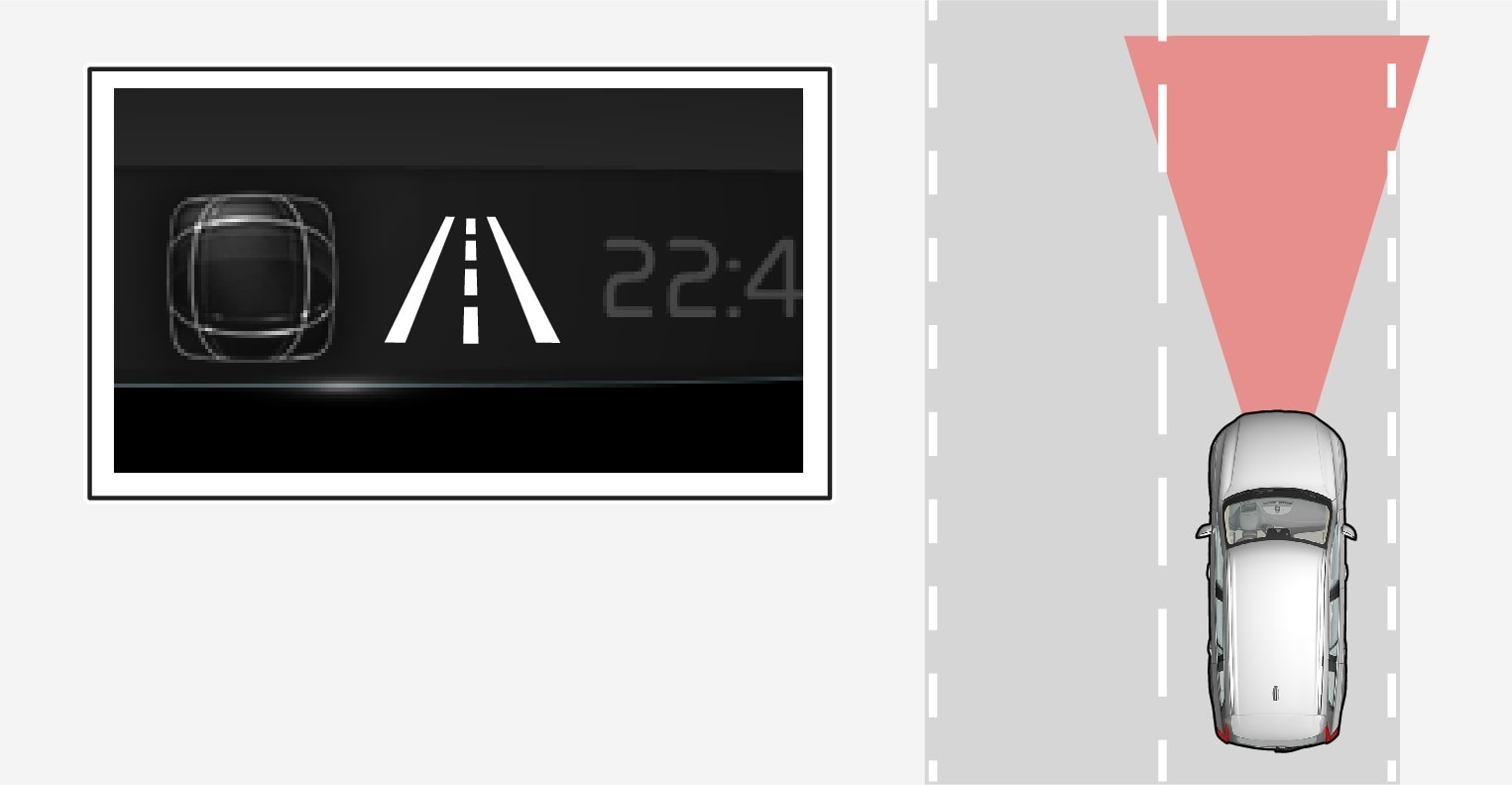

Available

Available — the lane lines in the symbol are white.

Available — the lane lines in the symbol are white.

Lane assistance is scanning one or both lane lines.

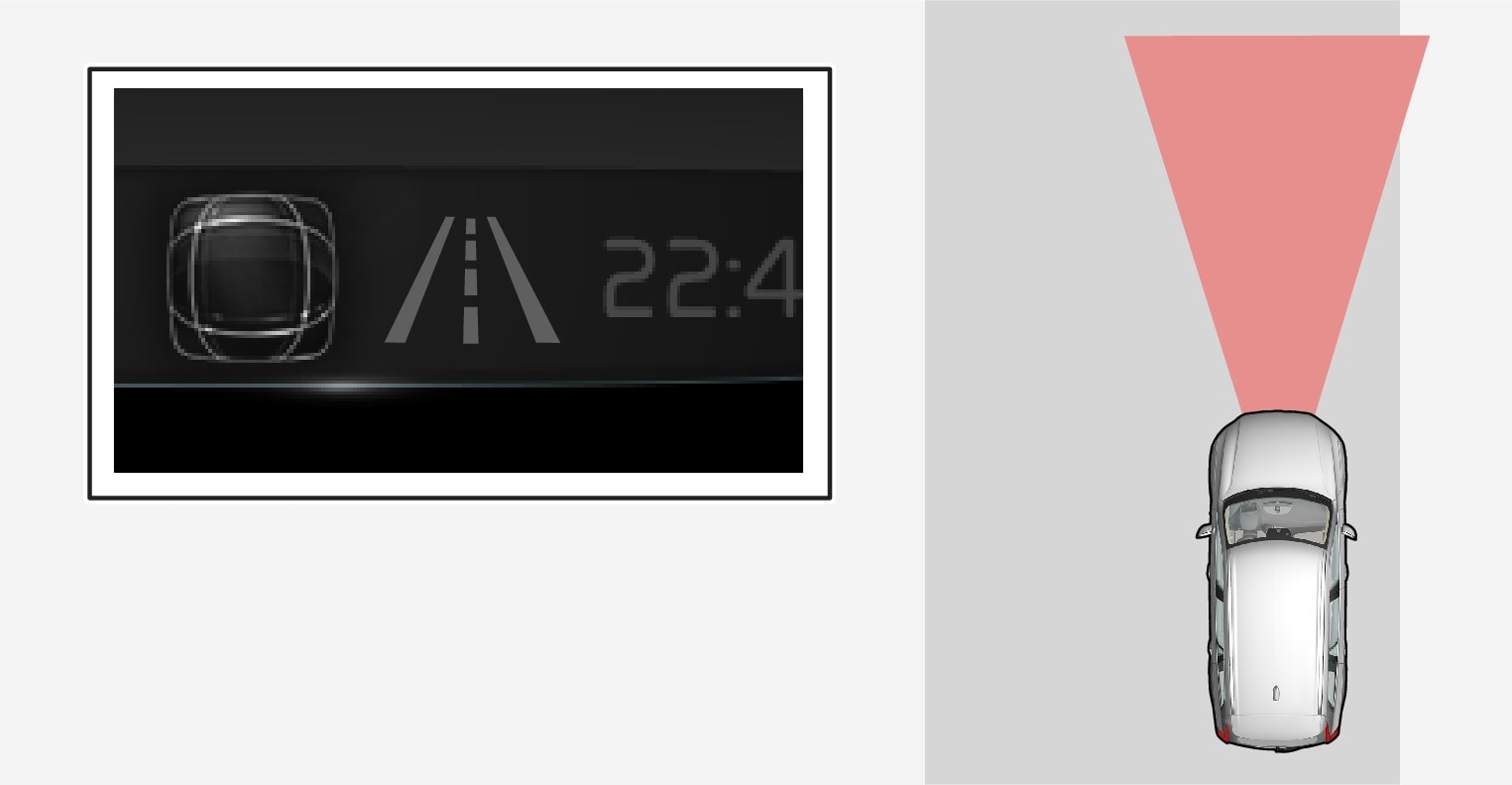

Unavailable

Unavailable — the lane lines in the symbol are grey.

Unavailable — the lane lines in the symbol are grey.

The Lane assistance cannot detect the lane lines, the speed is too low or the road is too narrow.

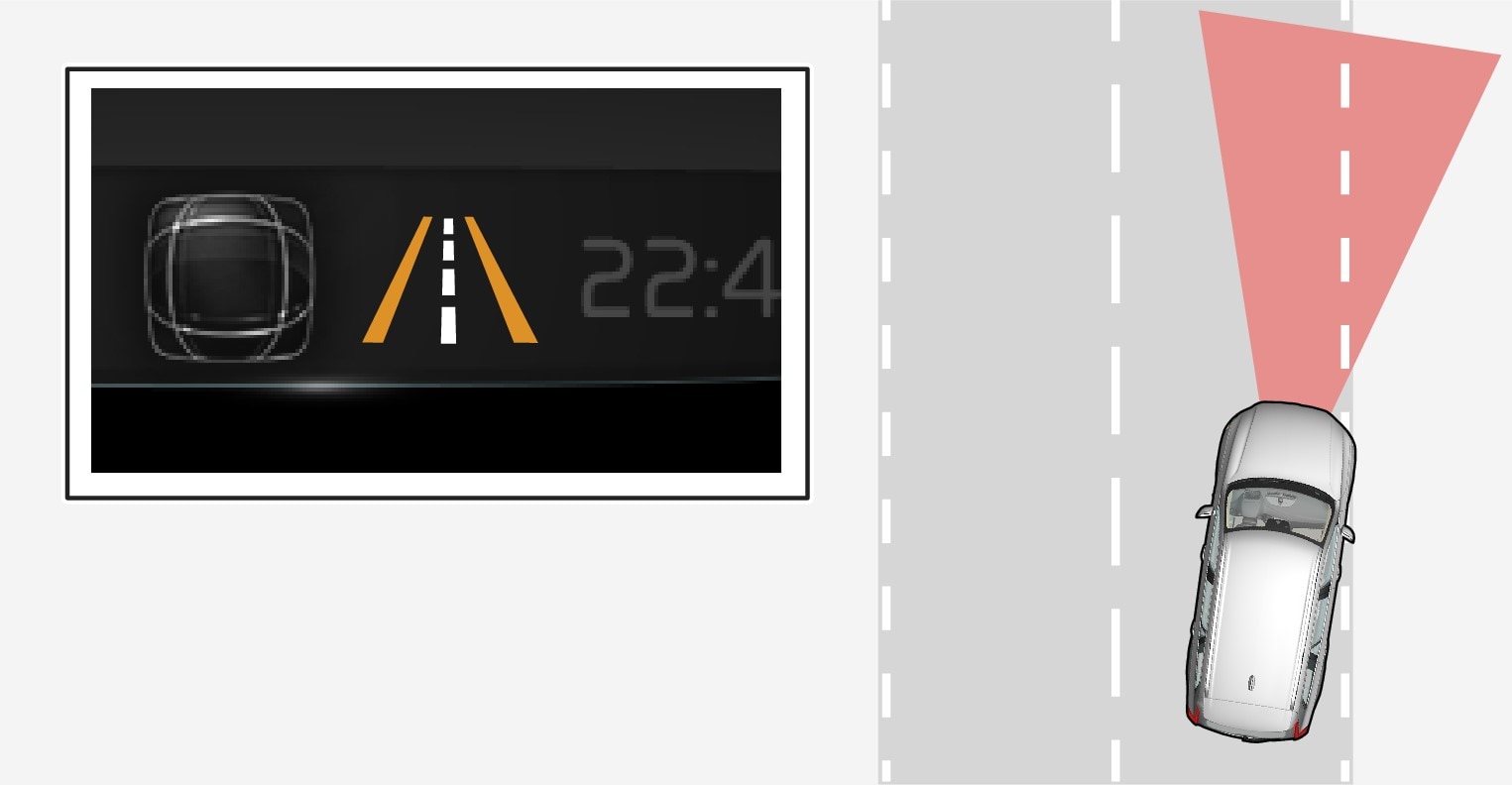

Indication of steering assistance/warning

Steering assistance/warning - the lane lines in the symbol are in colour.

Steering assistance/warning - the lane lines in the symbol are in colour.

Lane assistance indicates that the car is about to leave the lane. With LKA the system also indicates when LKA attempts to steer the car back into the lane.

Symbols and messages

The following table shows some examples.

Symbol

Message

Specification

Driver support system

Reduced functionality Service required

The system does not function as it should. A workshop should be contacted - an authorised Volvo workshop is recommended.

Windscreen sensor

Sensor blocked, see Owner's manual

The ability of the camera to scan the roadway in front of the car is reduced.

Lane Assistance

Apply steering

The LKA steering assistance does not function if the driver does not hold the wheel. Follow the instruction and steer the car.
