Fuses

Fuses in cargo area

업데이트됨 7/23/2018

Fuses in the cargo area protect, amongst other things, power seats*, airbags and seatbelt tensioners.

P5-1617-V90 RJB Fuses

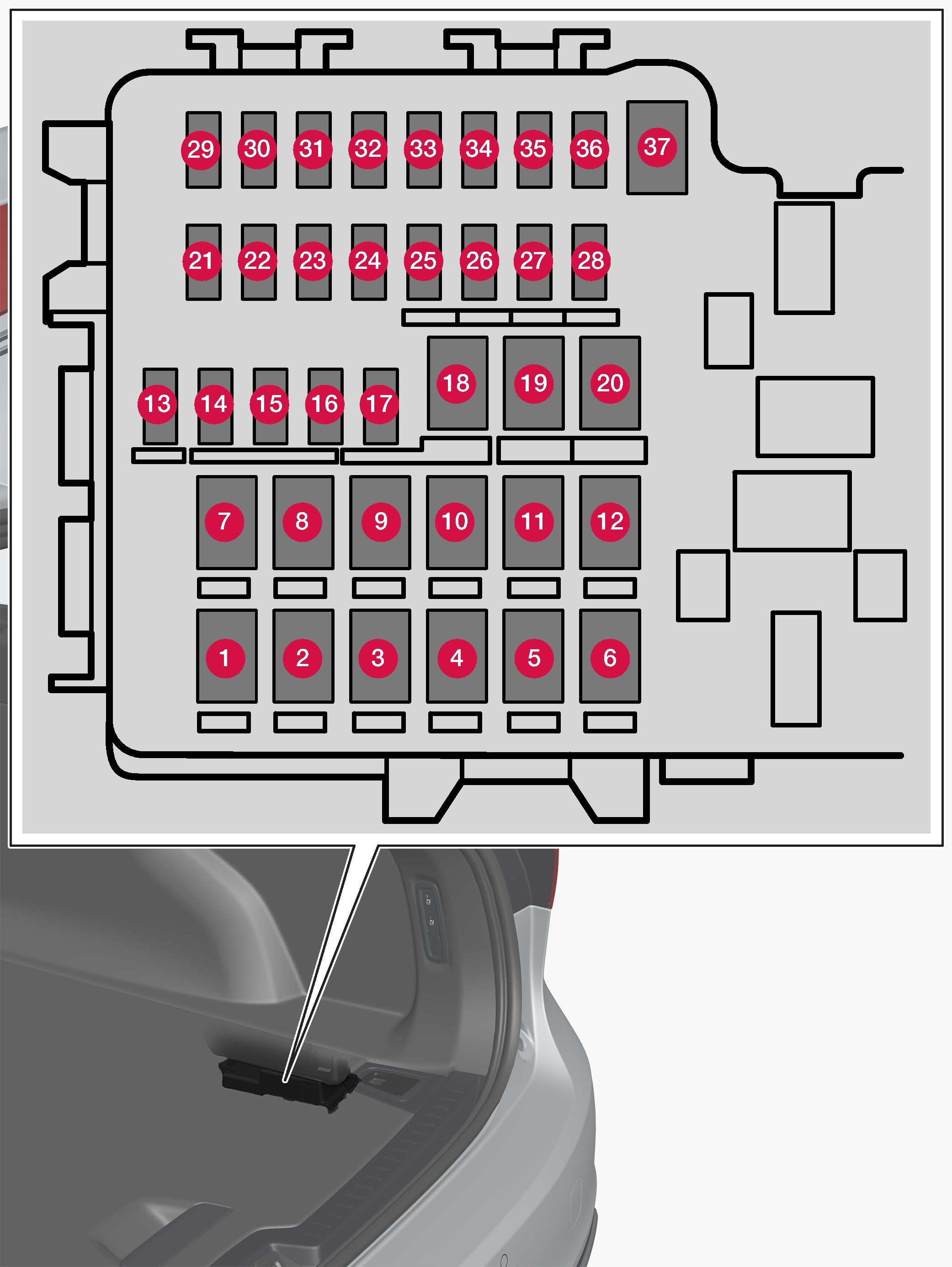

The central electrical unit is located on the right-hand side.

On the inside of the cover there are tweezers that facilitate the procedure for the removal and fitting of fuses.

The fuse box in the engine compartment also provides space for several spare fuses.

Positions

  • Fuses 13-17 and 21-36 are of the "Micro" type.
  • Fuses 1-12, 18-20 and 37 are of the "MCase" type and should be replaced by a workshop

    An authorised Volvo workshop is recommended.

    .

Function

AAmpere

Rear window defroster

30

-

-

Compressor for air suspension*

40

Lock motor for backrest on rear right-hand side

15

-

-

Lock motor for backrest on rear left-hand side

15

-

-

-

-

Power operated tailgate*

25

Electrically operated front passenger seat*

20

Towbar control module*

40

Seatbelt pretensioner module, right-hand side

40

Internal relay coils

5

-

-

Module for detecting foot movement* (for opening the power operated tailgate)

5

-

-

-

-

Towbar control module*

25

Power driver seat*

20

Seatbelt pretensioner module, left-hand side

40

Parking camera*

5

-

-

-

-

-

-

-

-

Control module for airbags and seatbelt tensioners

5

-

-

Seat heating left-hand side rear*

15

-

-

Blind Spot Information (BLIS)*

5

-

-

Seatbelt pretensioner modules

5

Actuator for exhaust gases (petrol, certain engine variants)

5

-

-

AWD control module*

15

Seat heating right-hand side rear*

15

-

-
