Lamps

Replacing the reversing lamp bulb

업데이트됨 7/23/2018

The bulbs for the reversing lamp are located behind the panel in the tailgate.

P5-1617-V90 Tailgate hatch removal
1.
Detach the panel on the inside of the tailgate by first turning the two knobs a quarter turn anticlockwise and then unhooking the panel. Place the panel to one side.

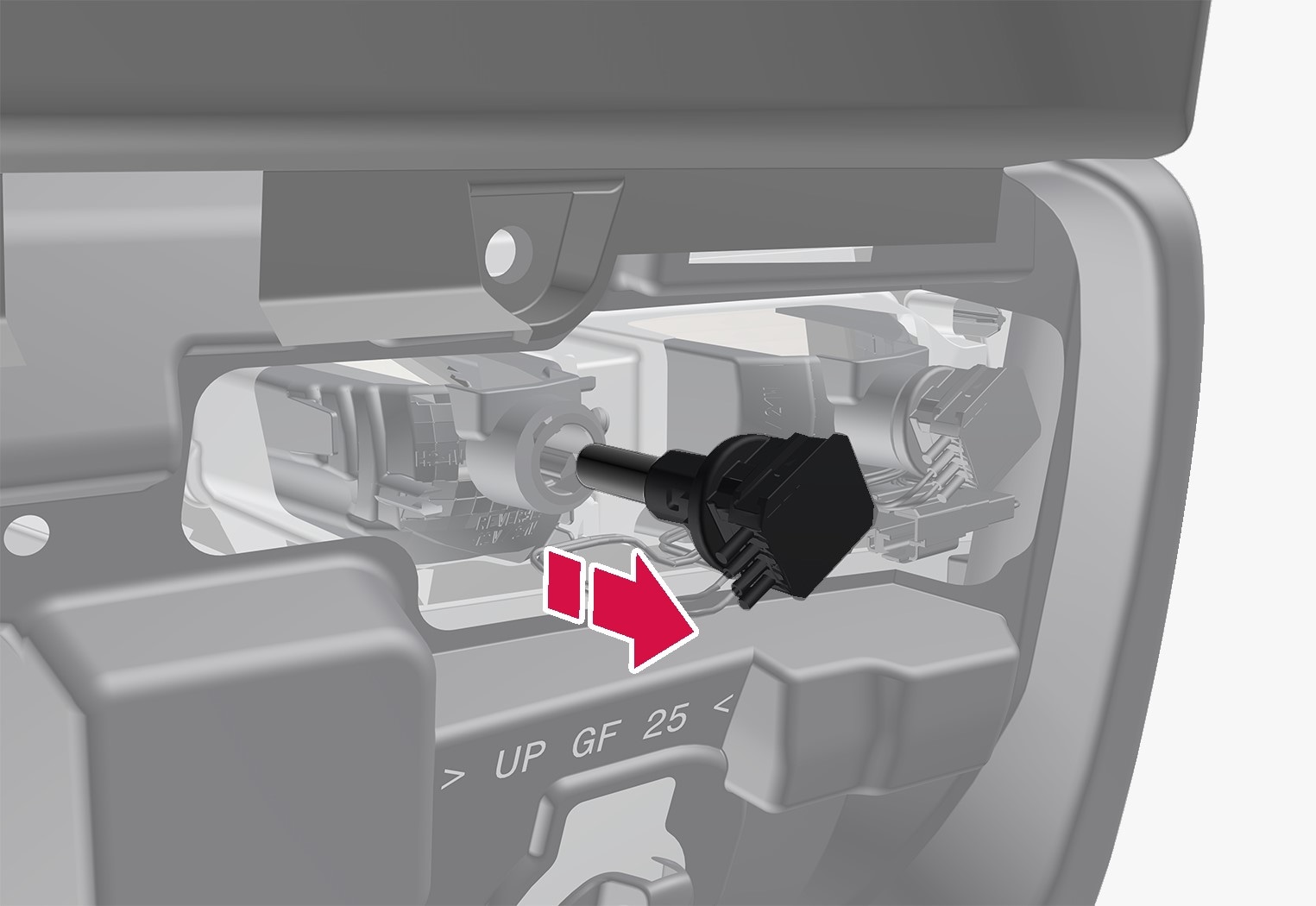

P5-1617-V90 Reverse light bulb replacement

Lamp housing on left-hand side.

2.
Undo the bulb holder by turning it anticlockwise and pulling it out.
3.
Remove the blown bulb by pressing it in and turning anticlockwise.
4.
Fit a new bulb by pressing it in and turning it clockwise.
5.
Attach the bulb holder by turning it clockwise.
6.
Hook on the panel and turn the knobs a quarter turn clockwise.
