Filling washer fluid

Washer fluid is used for cleaning the headlamps and windows. Washer fluid with antifreeze must be used when the temperature is under the freezing point.

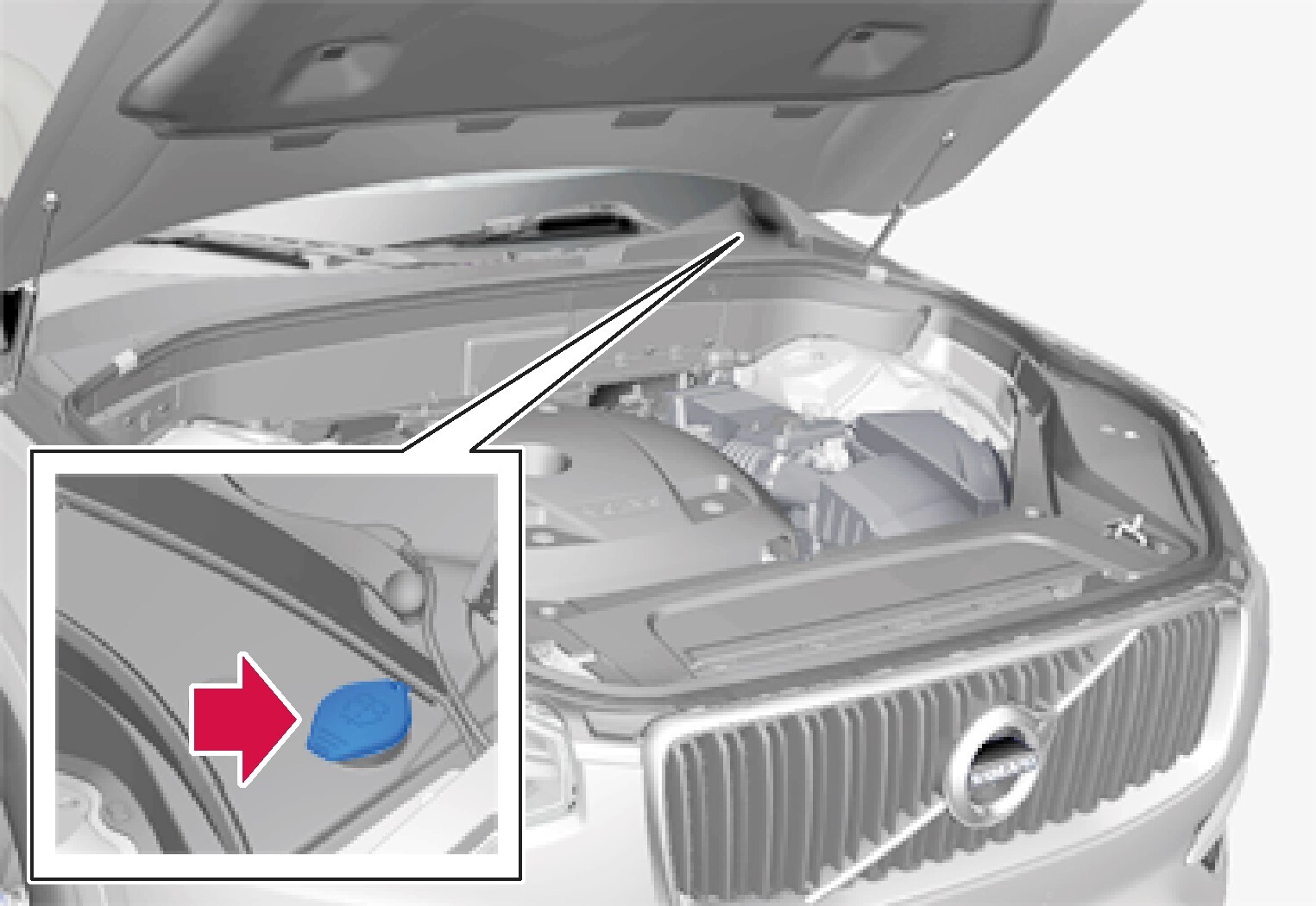

P5-1507-Refiling washer fluid

Washer fluid is filled by opening the blue cap.

 Note

When approx. 1 litre of washer fluid remains in the reservoir the message Washer fluid Level too low, refill is shown in the driver display together with the symbol P5-1507-Washer fluid-symbol.

Prescribed grade: Washer fluid recommended by Volvo - with frost protection during cold weather and below freezing point.

 Important

Use Volvo genuine washer fluid or equivalent with a recommended pH of between 6 and 8, in working dilution (e.g. 1:1 with neutral water).

 Important

Use washer fluid with antifreeze when the temperature is below freezing to avoid freezing in the pump, reservoir and hoses.

Volume:

  • Cars with headlamp washing: 5.5 litres.
  • Cars without headlamp washing: 3.5 litres.
