Folding up the integrated booster cushion*

The integrated booster cushion on the centre seat in the second seat row folds up for use.
P5-1507–Safety–Integrated booster cushion raise 1
P5-Icon gray box 1

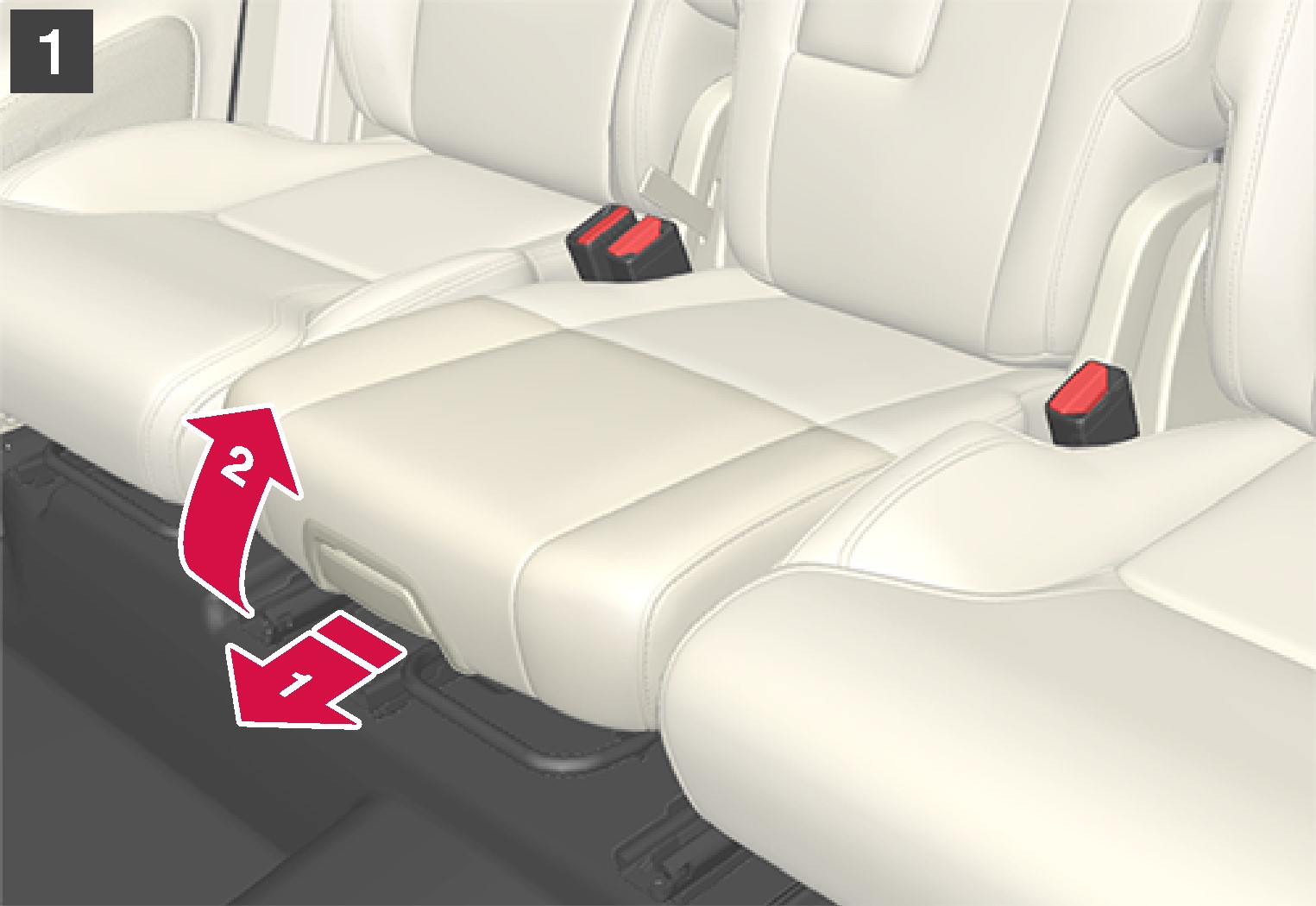

Pull the handle forward and up in order to release the booster cushion.

P5-1507–Safety–Integrated booster cushion raise 2
P5-Icon gray box 2

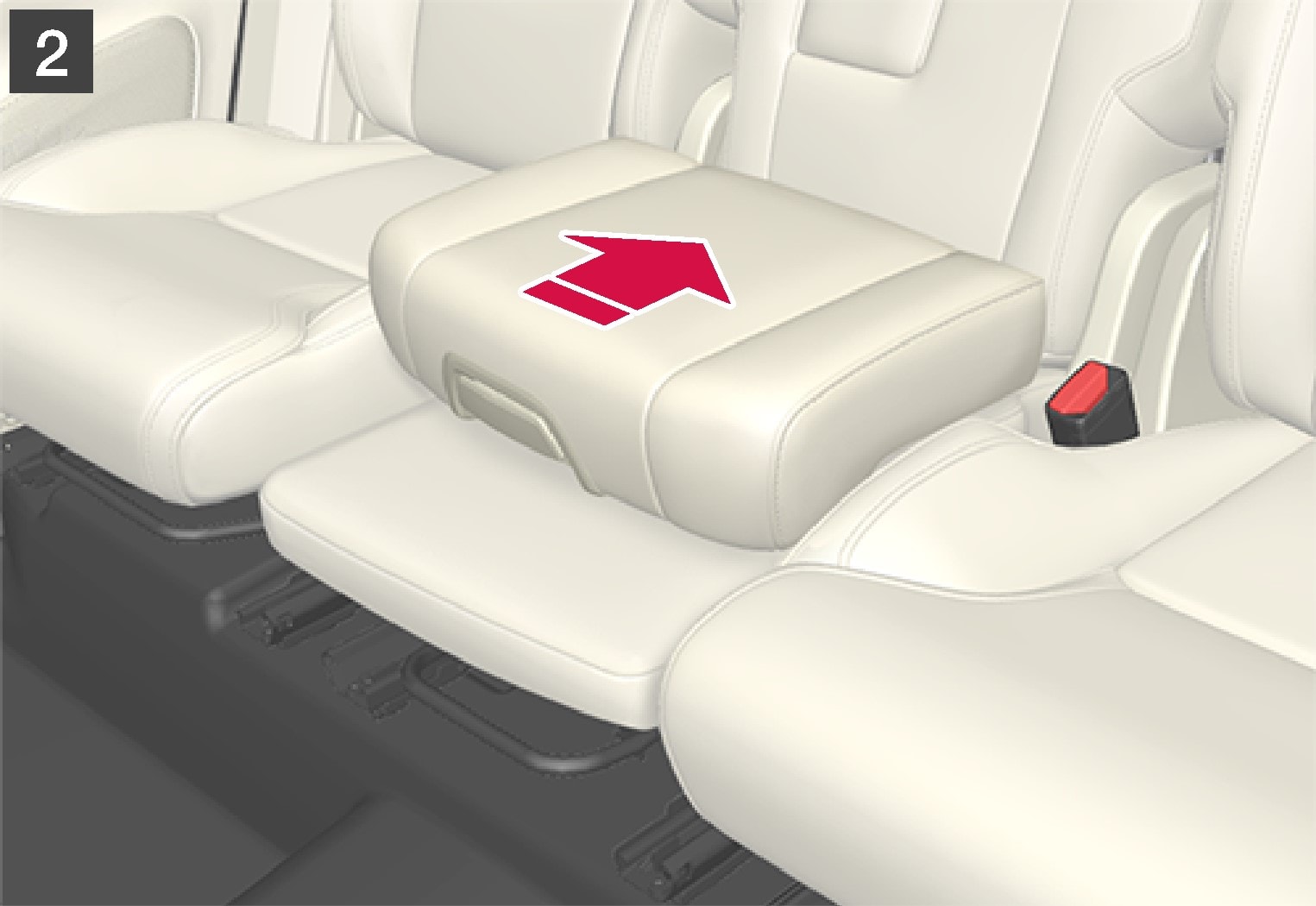

Press the booster cushion backwards to lock.

 Warning

If the instructions for the integrated booster cushion are not followed then the child could sustain serious injury in the event of an accident.
  1. * Option/accessory.
