Driver display graphics

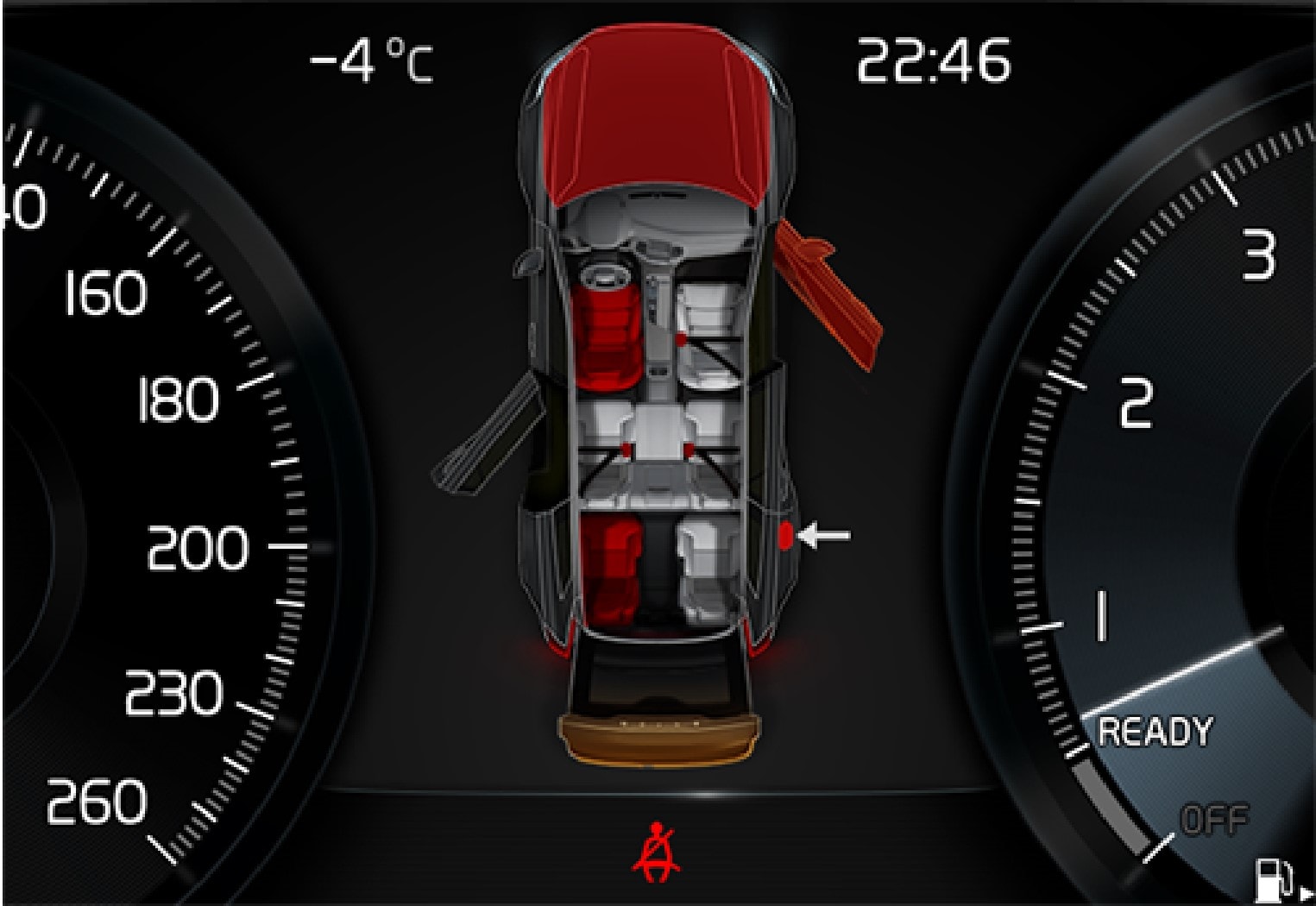

Graphics in the driver display with different types of warnings. The warning colour on the door and tailgate is dependent on the vehicle's speed.
The driver display's graphics show which seats in the car are occupied by belted and unbelted passengers.
The same graphic also shows if the bonnet, tailgate, fuel filler flap or any door is open.
The graphics are cleared automatically after approximately 30 seconds of driving, or by pressing on the right-hand the steering wheel keypad's O button.
Visual reminder in the roof console.
A visual reminder is given in the roof console and by means of the warning symbol in the driver display.
The acoustic reminder is dependent on speed, driving time and distance.
The belt status of the driver and passengers is shown in the driver display graphics when a belt is buckled or unbuckled.
Child seats are not covered by the seatbelt reminder system.
A visual and acoustic reminder remind the driver and front seat passenger to use a seatbelt if either of them is not wearing one.
The seatbelt reminder in the rear seat has two subfunctions:
- Provides information on which seatbelts are being used in the rear seat. The driver display's graphics are shown when the seatbelts are in use.
- Reminding that a seatbelt in the rear seat is unfastened during a journey by means of a visual and acoustic reminder. The reminder stops when the seatbelt is refastened, or it can be acknowledged manually by pressing the O button on the right-hand steering wheel keypad.
Reminder for doors, bonnet, tailgate and fuel filler flap
If the bonnet, tailgate, fuel filler flap or a door is not closed properly, the driver display's graphics show what is open. Stop the car in a safe place as soon as possible and close the source of the warning.
If the car is driven at a speed lower than approx. 10 km/h (6 mph) then the driver display's information symbol illuminates.
If the car is driven at a speed higher than approx. 10 km/h (6 mph) then the driver display's warning symbol illuminates.
