Towing eye

Use the towing eye if the car shall tow another vehicle. The towing eye is screwed into a threaded socket behind a cover on the right-hand side of the rear bumper.

 Note

If the car is equipped with a towing bracket, there is no rear mounting for a towing eye.

Fitting the towing eye

P5-1507 Towing eyelet storage
P5-Icon gray box 1

Take out the towing eye from the foam block under the floor hatch in the cargo area.

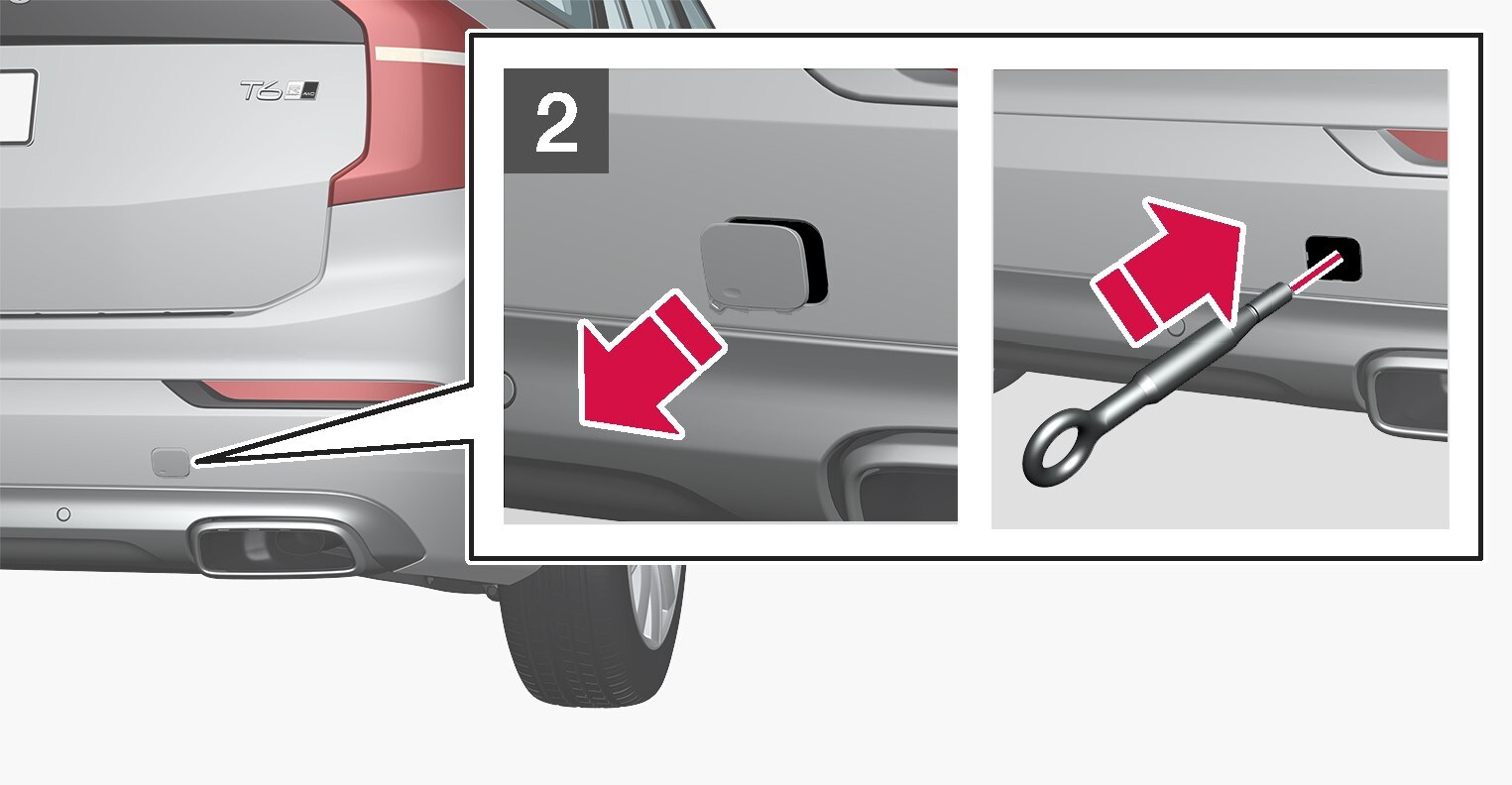

P5-1617-XC90 H-towing eyelet back step 2
P5-Icon gray box 2

Remove the cover - press on the marking with a finger and, at the same time, fold out the opposite side/corner using a coin or similar.

The cover pivots around its centre line and can then be removed.
Screw the towing eye right in until it stops. Tighten the towing eye firmly e.g. using the wheel wrench*.

After use, unscrew the towing eye and return it to its place.

Finish by refitting the cover onto the bumper.

 Important

It is important that the towing eye is firmly screwed into place - right in until it stops.
  1. * Option/accessory.
