Folding up the integrated child seat

The integrated child seats are part of the outer rear seat cushions and need to be folded up before use.

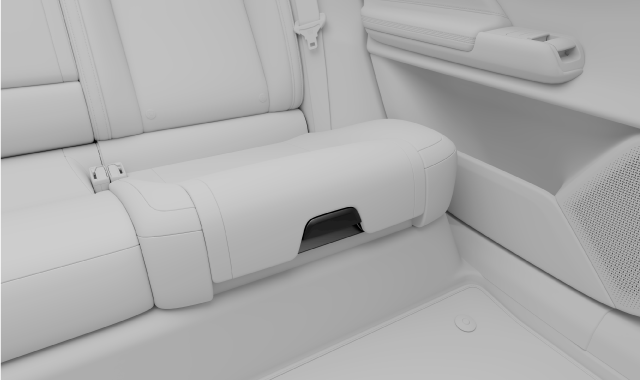

  1. The release handle on the integrated child seat

    Pull the handle on the front of the outer seat cushion to release the lock.

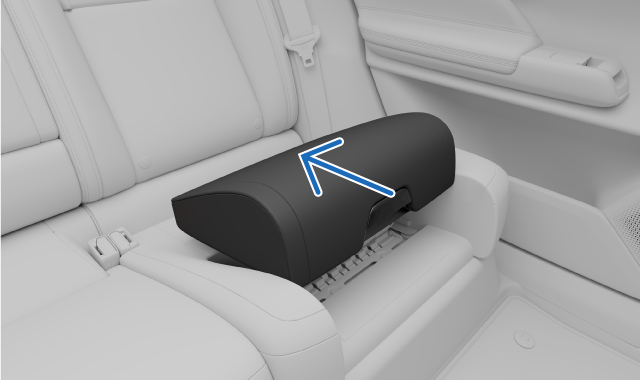

  2. Movement path of the child seat
    Lift and push the front of the child seat to guide it all the way to the backrest until you hear a click.
    The child seat locks into place.

Warning

Take extra care to follow the instructions for the child seat. If you do not, it could lead to serious injury otherwise avoided in the event of a collision.
