The fuel tank is fitted with a coverless fuel filler system.
Refuelling the car at a petrol station
Switch off the car and open the fuel filler flap.
Choose fuel that is approved for use in the car. See information on approved fuels in the sections on "Petrol" and "Diesel" respectively.

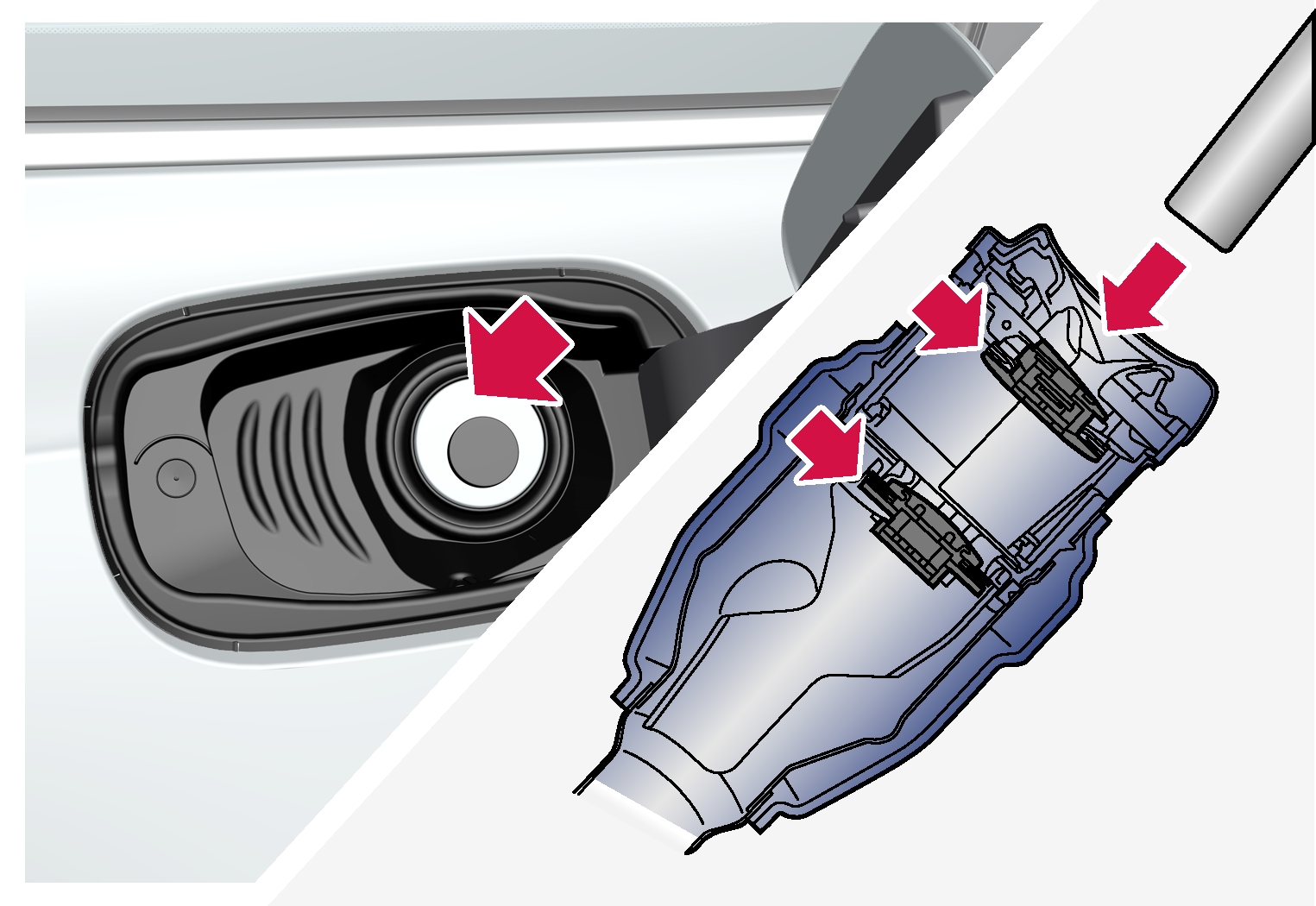

Insert the pump nozzle in the fuel filler opening. The filler pipe has two opening caps. The pump nozzle must be pushed past both caps before refuelling is started.
Do not overfill the tank but fill until the pump nozzle cuts out the first time.
The tank is full.
Overfilled fuel in the tank can overflow in hot weather.
Topping up fuel from a fuel can
When filling with a fuel can, use the funnel located in the foam block under the floor hatch in the cargo area.
Open the fuel filler flap.
Insert the funnel in the fuel filler opening. The filler pipe has two opening caps. The funnel's pipe must be pushed past both caps before filling can be started.

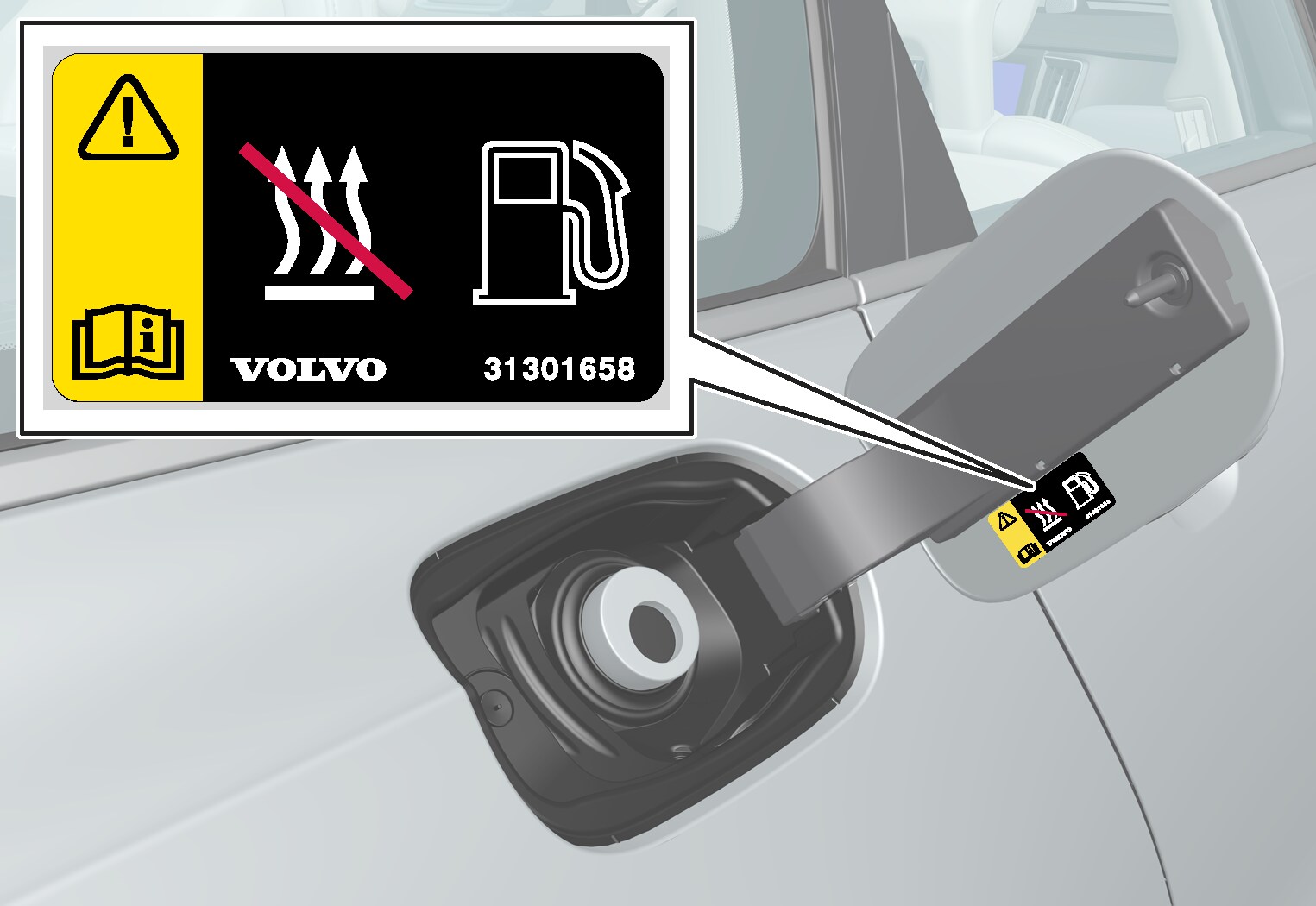

Applicable to cars with fuel-driven auxiliary heater*
Never use the fuel-driven heater when the car is in a filling station area.
