Handling the spare wheel

Follow these instructions for handling the spare wheel.
P5-1617-S90-V90-spare wheel storage

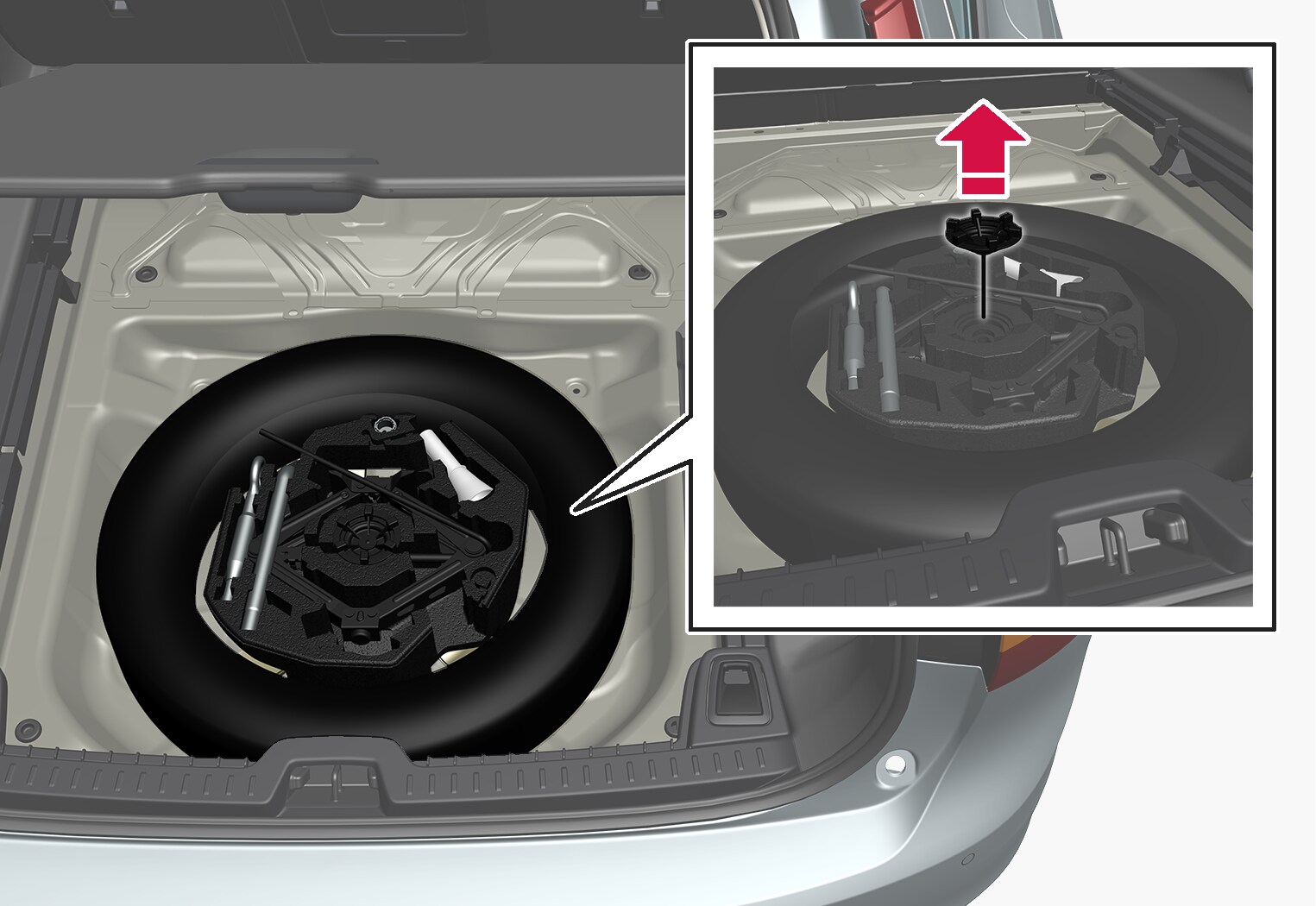

The spare wheel is located in the spare wheel well with the outside down. The same bolt runs through to secure the spare wheel and the foam block. The foam block contains all the tools for changing a wheel.

Fold up the cargo area floor, from the rear and forwards.
Undo the retaining screw.
Lift out the foam block with its tools.
Lift out the spare wheel.

Storing the punctured tyre

Place the punctured tyre back in the space for the spare wheel.
Put the tools back in their right place in the foam block and lift it back into the car.
Screw in the foam block using the mounting screws and then fold down the cargo area floor.


If the lower attachment of the mounting screw loosens from the body underneath the spare wheel, refit it in the hole and turn clockwise to reattach it.
Place the punctured tyre in the cargo area.
