Replacing windscreen wiper blades

The wiper blades sweep water away from the windscreen. Together with the washer fluid, they clean the windscreen and ensure visibility for driving. The wiper blades can be replaced.

Replacing a windscreen wiper blade

P5-1507-Change windshield wiper blades - step 1
P5-1507-Change windshield wiper blades - step 2
P5-Icon gray box 1

Fold up the wiper arm when it is in service position. Service position is activated/deactivated via the function view in the centre display when the car is stationary and the windscreen wipers are not on. Press the button located on the wiper blade mounting and pull straight out parallel with the wiper arm.

P5-Icon gray box 2

Slide in the new wiper blade until a "click" is heard.

Check that the blade is firmly installed.
Fold the wiper arm back towards the windscreen.

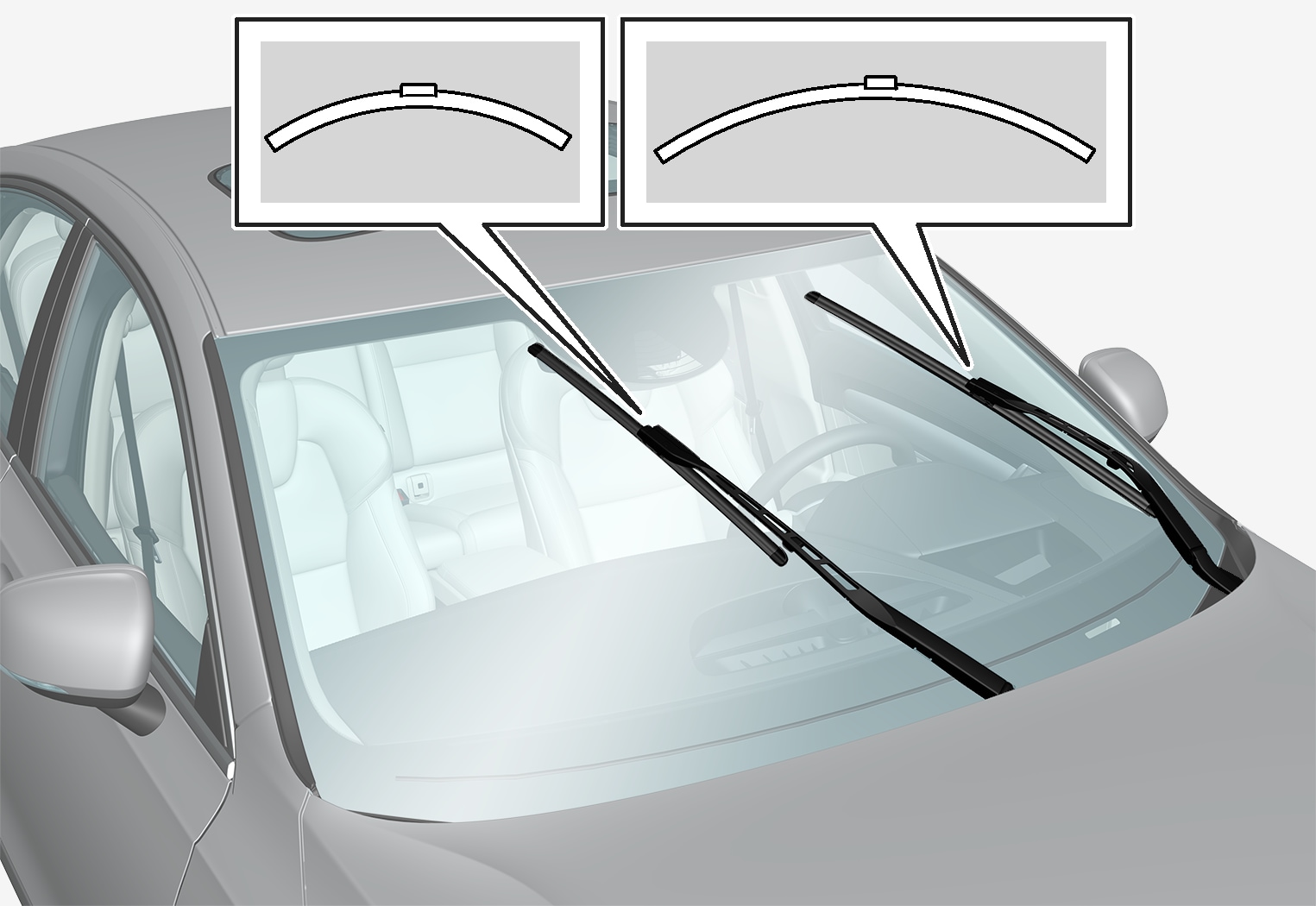

The wiper blades are different lengths

P5-1617-S90 V90-Wiper blades diffrent length


When replacing the wiper blades, note that they have different lengths. The blade on the driver's side is longer than on the passenger side.
