Audio and media - operating the system

The audio and media system is controlled from the centre console, with steering wheel buttons, voice recognition or remote control*. The information is presented on the screen in the upper section of the centre console.

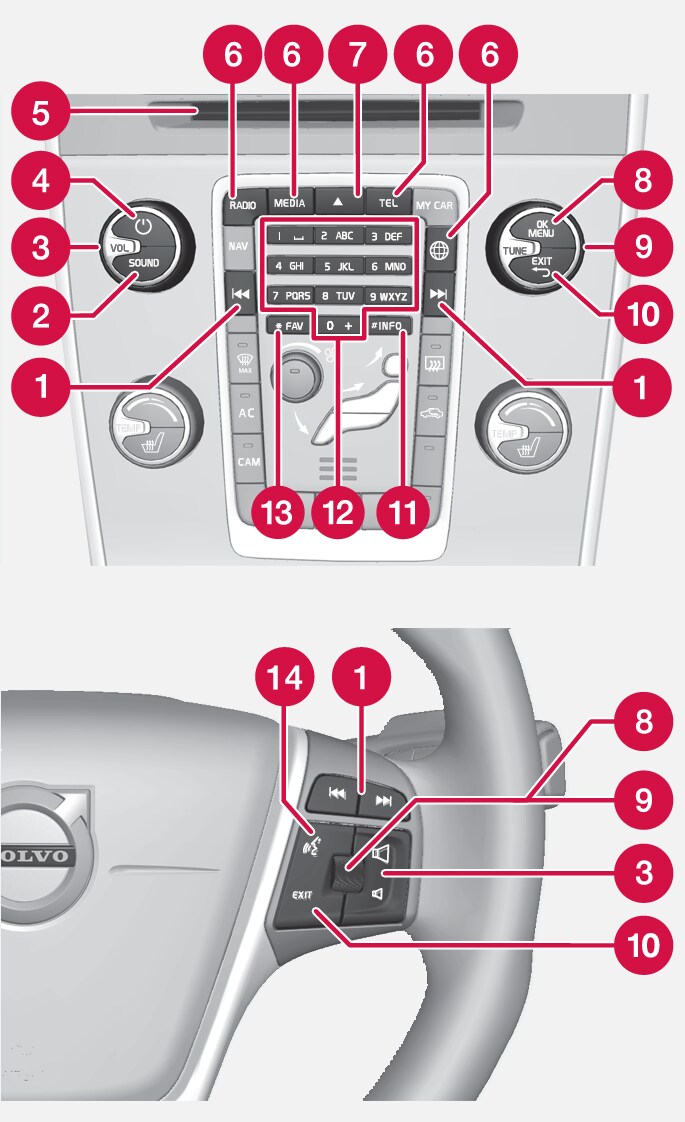

P3P4-1817-Infotainment handling (Melco)
  1. Ikon röd cirkel 1 Scroll/fast wind/search Short press scrolls between disc tracks, preset radio stations1 or chapter2. A long press fast-winds disc tracks or searches for the next available radio station.
  2. Ikon röd cirkel 2 SOUND - press for access to audio settings (bass, treble, etc.). For more information, see general audio settings.
  3. Ikon röd cirkel 3VOL - raise or lower the volume.
  4. Ikon röd cirkel 4P3-1020-S60/V60 On-/Off symbol InfotainmentON/OFF/MUTEshort press starts the system and long press (until the screen is off) switches off. Note that the whole of the Sensus system (including navigation*- and phone functions) starts/switches off at the same time. Briefly press to mute the sound (MUTE) or restore the sound if it had been switched off.
  5. Ikon röd cirkel 5 Disc insert and eject slot.
  6. Ikon röd cirkel 6Main sources – press to select the main source (e.g. RADIO, MEDIA). Last active source is shown (e.g. FM for radio). If you are in a source and press the main source button, a shortcut menu is shown.
  7. Ikon röd cirkel 714w46–P3/P4–Eject button symbol - disc eject. A disc remains in the ejected position for about 12 seconds, after which it is inserted back into the player for safety reasons.
  8. Ikon röd cirkel 8 OK/MENU - press the thumbwheel in the steering wheel or the button in the centre console to accept selections in menus. If you are in the normal view and press OK/MENU a menu is shown for the selected source (e.g. RADIO or MEDIA). Arrow to the right of the screen is shown when there are underlying menus.
  9. Ikon röd cirkel 9TUNE - turn the thumbwheel in the steering wheel or the knob in the centre console to scroll between disc tracks/folders, radio and TV* stations, phone contacts or navigate between the options on the display screen.
  10. Ikon röd cirkel 10EXITshort press leads upwards in the menu system, interrupts current function, interrupts/rejects phone calls or erases entered characters. A long press leads to the normal view or if already in the normal view, to the highest menu level (main source menu) which is the same as the main source buttons in the centre console (6).
  11. Ikon röd cirkel 11INFO - If more information than can be shown on the screen is available, press the INFO button to see the remaining information.
  12. Ikon röd cirkel 12 Preset buttons – input of numbers and letters.
  13. Ikon röd cirkel 13FAV - in certain sources it is possible to link a function to the FAV button. A linked function is then activated simply by pressing the FAV button, see Favourites.
  14. Ikon röd cirkel 14 Voice recognition – press to activate voice recognition.


P3-1346-x60-Menu handling_Flow chart
The example shows navigation to different functions when the media is played from the car's hard disc drive.
  1. Ikon röd cirkel 1 Main source button – press to change the main source or to show the shortcut menu in the active source.
  2. Ikon röd cirkel 2Normal view – normal mode for the source.
  3. Ikon röd cirkel 3Shortcut menu – shows frequent menu selections.
  4. Ikon röd cirkel 4 Quick menu – fast mode when TUNE is turned, e.g. for changing disc tracks, radio station, etc.
  5. Ikon röd cirkel 5Source menu – functions and settings in the active source.
  6. Ikon röd cirkel 6Source selection menu3 – shows the sources that can be selected.
  7. Ikon röd cirkel 7 Main source menu – displays main sources, which can also be selected with the main source keypad (1).

Appearance depends on source, equipment in the car, settings, etc.

Select main source by pressing a main source button (1) (e.g. RADIO, MEDIA). To navigate through the source menus, use the controls TUNE, OK/MENU, EXIT or the main source button (1).

If the text in a menu bar is light grey then it is not possible to select this option. This may be because the function is not available in the car, that the source is not active or connected, or does not contain anything.

For available functions, see Audio and media - menu overview.

  1. * Option/accessory.
  2. 1 Does not apply to DAB (Digital Audio Broadcasting).
  3. 2 Only applies to DVD discs.
  4. 3 Only available in those main sources that have several sources.
