Bonnet - opening and closing

The bonnet can be opened when the handle in the passenger compartment has been turned clockwise and the lock by the radiator grille has been moved to the left.

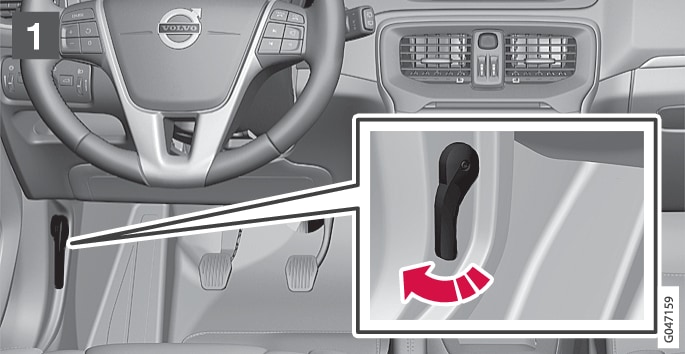

P4-1246 Opening bonnet, inside
The handle for bonnet opening is always on the left-hand side.

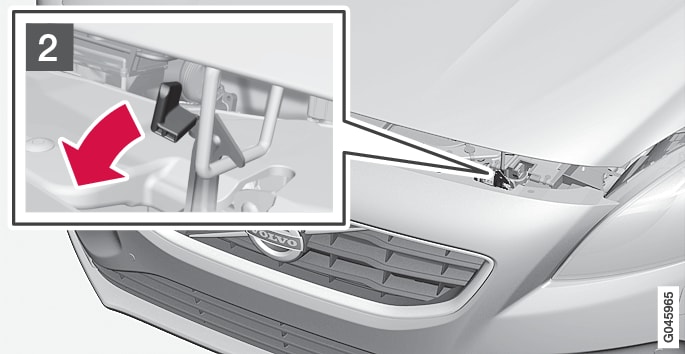

P4-1220-Y55X-Opening and closing bonnet, outside
Ikon grå fyrkant 1

Turn the handle about 20-25 degrees clockwise. You will hear when the catch releases.

Ikon grå fyrkant 2

Move the catch to the left and open the bonnet. (The catch hook is located between the headlamp and radiator grille, see illustration.)


Check that the bonnet locks properly when closed.
