Park Assist Pilot (PAP)* - operation
The combined instrument panel uses symbols, graphics and text for when the different steps are to be carried out.

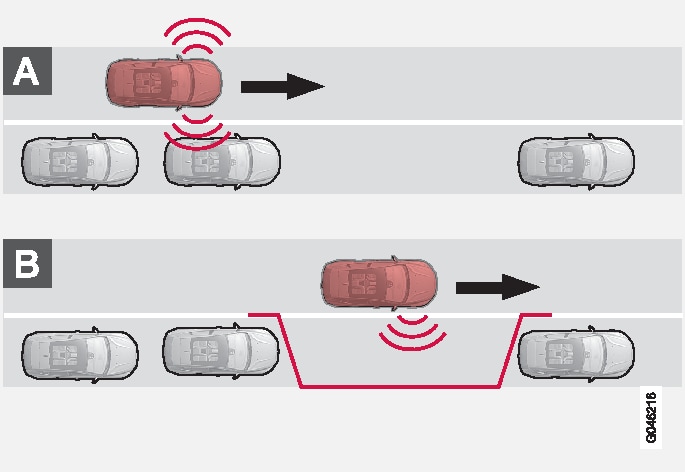

1 - Searching and checking measurements
The PAP function searches for a parking space and checks whether it is big enough. Proceed as follows:
1. Activate PAP by pressing this button and do not drive faster than 30 km/h.
|2.||Keep an eye on the combined instrument panel and be prepared to stop the car when the graphics and text so request.|
|3.||Stop the car when the graphics and text so request.|

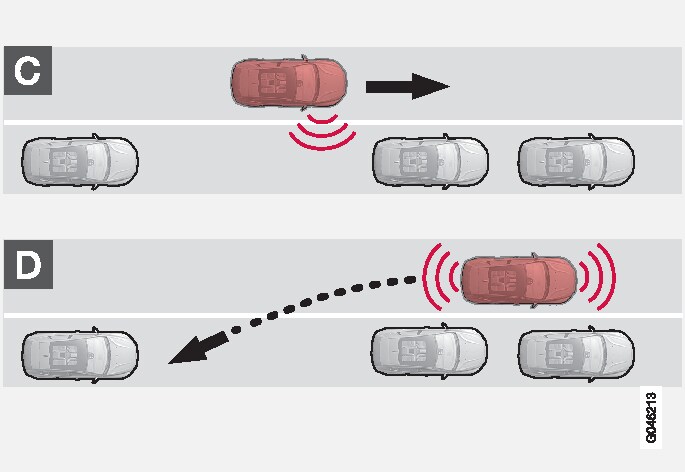

PAP searches the area for a parking space, displays instructions and guides the car in on its passenger side. But if required the car can also be parked on the driver's side of the street:
- Activate the direction indicator for the driver's side - the car is then parked on that side of the street instead.
2 - Reversing in
During the Reversing step, PAP will steer the car into the parking space. Proceed as follows:
- Check that the area behind the car is clear, then engage reverse gear.
- Reverse slowly and carefully without touching the steering wheel - and no faster than approx. 7 km/h.
- Keep an eye on the combined instrument panel and be prepared to stop the car when the graphics and text so request.
- Keep your hands away from the steering wheel when the PAP function is activated.
- Make sure that the steering wheel is not hindered in any way and can rotate freely.
- To achieve optimum results - wait until the steering wheel is fully turned before starting to drive backward/forward.

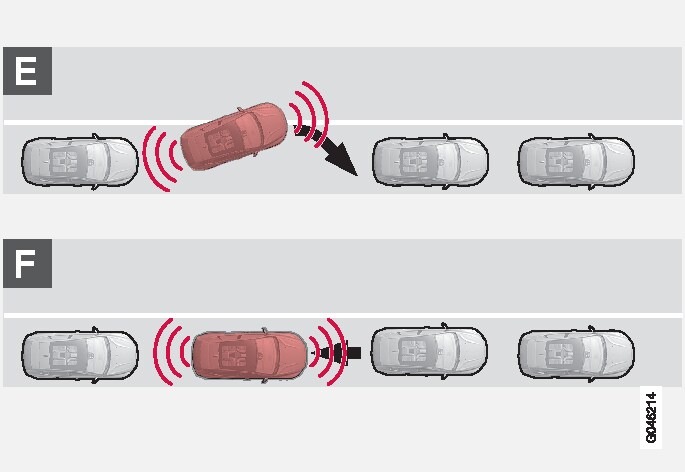

3 - Straightening up
When the car has reversed into the parking space, it must be straightened up and stopped.
- Engage first gear or D position, wait until the steering wheel has been turned, then drive slowly forwards.
- Stop the car when the graphics and text message so request.
- Engage reverse gear and drive backwards slowly until the graphics and text message tell you to stop.
The function is disengaged automatically when parking is complete, and the graphics and text message show that parking is complete. It may be necessary for the driver to correct the positioning. Only the driver can determine whether the car is properly parked.
