V40

2016 Early

Lamp replacement - dipped beam

The dipped beam bulb is fitted inside the headlamp's larger cover.

 Note

Applies to cars with halogen headlamps.
P4-1220-Y55-Low beam (Halogen)
Detach the headlamp.
Undo the cover.

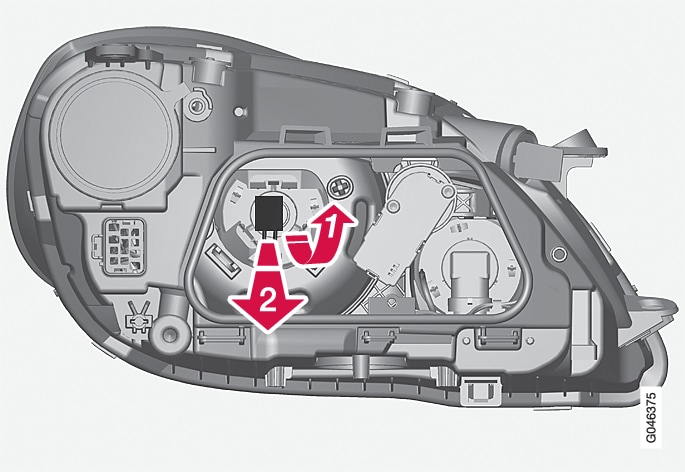

Ikon röd pil 1 Press the bulb holder upwards until it releases.

Ikon röd pil 2Pull out the bulb holder.

Replace the bulb and put back the parts in reverse order.
