Electronic climate control - ECC

ECC (Electronic Climate Control) maintains the temperature selected in the passenger compartment and can be set separately for the driver's side and passenger side.

The auto function is used to automatically control temperature, air conditioning, fan speed, recirculation and air distribution.

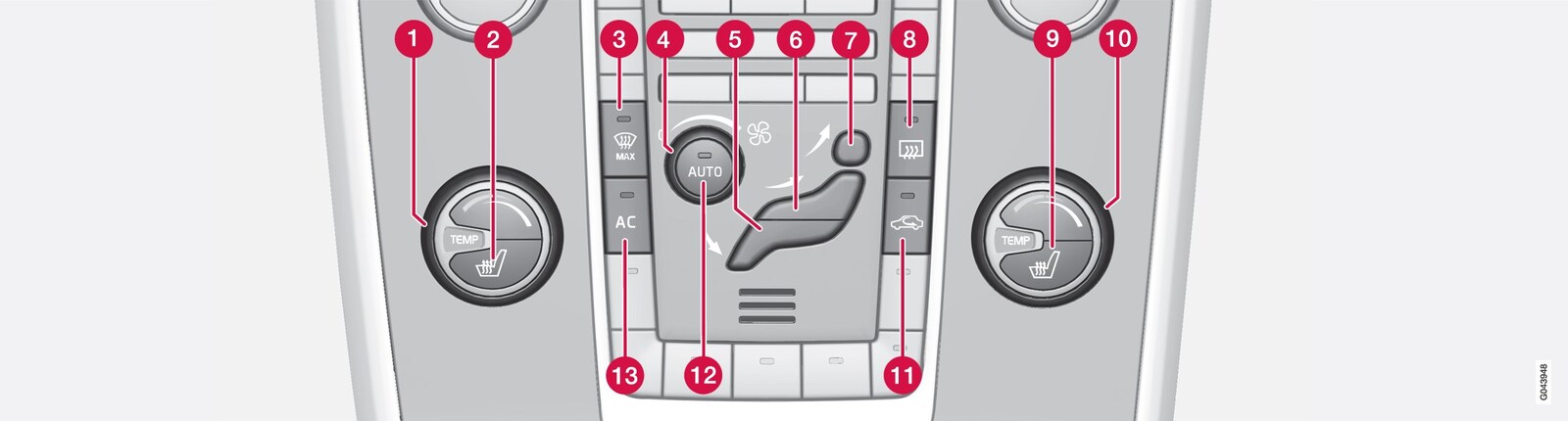

  1. Temperature control , left-hand side
  2. Electrically heated front seat , left side
  3. Max. defroster
  4. Fan
  5. Air distribution - ventilation floor
  6. Air distribution - air vent instrument panel
  7. Air distribution - defroster windscreen
  8. Rear window and door mirror defrosters
  9. Electrically heated front seat , right side
  10. Temperature control , right-hand side
  11. Recirculation
  12. AUTO - Automatic climate control
  13. AC - Air conditioning on/off
