Lamp replacement - headlamps

All of the headlamp bulbs are replaced via the engine compartment. First loosen and remove the whole headlamp.

Removing the headlamp

Set the car's electrical system in key position 0, see Key positions - functions at different levels.

P3-1320-XC60 Headlight removal 2

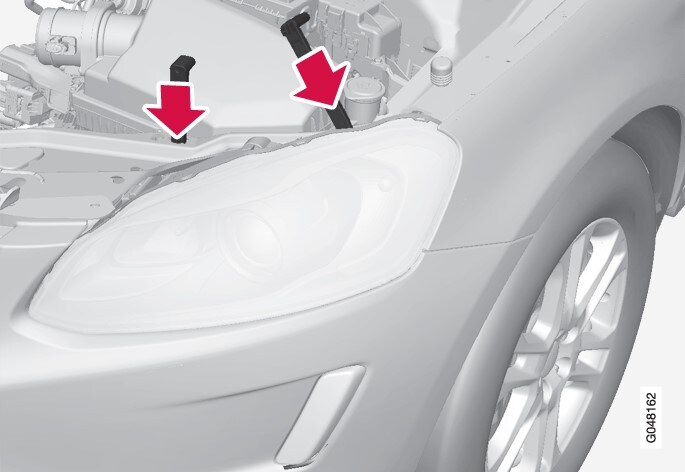

Ikon röd pil 1Pull out the headlamp's locking pins.
Ikon röd pil 2Pull the headlamp straight forward.

 Important

Do not pull the electrical cable, only the connector.
P3-1320-XC60 Headlight removal 3
Ikon röd pil 3 Detach the headlamp connector by pressing down the clip with your thumb.
Ikon röd pil 4 At the same time, guide out the connector with your other hand.
5.Lift out the headlamp and place it on a soft surface to avoid scratching the lens.
6.Replace the bulb in question.

Securing the headlamp

P3-1320-XC60 Headlight fastening

When securing, check that the long lock pin is engaged - it should be engaged in both eyes.

Plug in the connector, a clicking sound should be heard.
Reinstall the headlamp and locking pins. Check that they are correctly inserted.
Check the lighting.

The headlamp must be mounted and the connector correctly installed before the lighting is switched on or the remote control key is inserted into the ignition switch.
