Power windows

All power windows can be operated using the control panel for the driver's door - the control panels for the other doors operate their respective power window.
P3-0835 XC60 Driver's door control panel
Driver's door control panel.
  1. Ikon röd cirkel 1Switch for electric child safety locks* and disengaging rear power window buttons; see Child safety locks - electrical activation*.
  2. Ikon röd cirkel 2Rear window controls
  3. Ikon röd cirkel 3Front window controls

 Warning

Check that no rear seat passengers are trapped when the windows are closed from the driver's door.

 Warning

Check that children or other passengers are not trapped if the windows are closed, even when the remote control key is used.

 Warning

If there are children in the car - remember to always switch off the power supply to the power windows by selecting key position 0 and then take the remote control key with you when leaving the car. For information on key positions - see Key positions - functions at different levels.

Operating

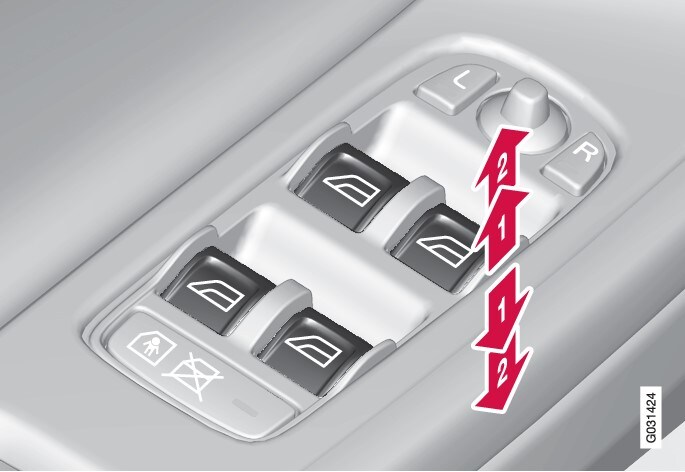

P3-0835 XC60 Driver's door control panel - operating
Operating the power windows.
  1. Ikon röd pil 1Operating without auto
  2. Ikon röd pil 2Operating with auto

All power windows can be operated using the control panel for the driver's door - the control panels for the other doors can only each operate their respective power window. Only one control panel can be operated at a time.

In order for the power windows to be used, the key position must be at least I - see Key positions - functions at different levels. The power windows can be operated for a few minutes after the engine has been switched off and after the remote control key has been removed - although not after a door has been opened.

Closing of the windows is stopped and the window is opened if anything prevents its movement. It is possible to force the pinch protection when closing has been interrupted, e.g. with ice, by continuously holding the button up until the window is closed. The pinch protection is reactivated after a brief pause.

 Note

One way to reduce the pulsating wind noise when the rear windows are open is to also open the front windows slightly.

Operating without auto

Move one of the controls up/down gently. The power windows move up/down as long as the control is held in position.

Operating with auto

Move one of the controls up/down to the end position and release it. The window runs automatically to its end position.

Operating with the remote control key and central locking

To remotely operate the power windows from the outside with the remote control key or from inside with central locking, see Remote control key with key blade and Locking/unlocking - from the inside.

Resetting

If the battery is disconnected then the function for automatic opening must be reset so that it can work correctly.
Gently raise the front section of the button to raise the window to its end position and hold it there for one second.
Release the button briefly.
Raise the front section of the button again for one second.

 Warning

A reset must take place for pinch protection to work.
  1. * Option/accessory.
