Replacing the rear fog lamp bulb
Left-hand drive cars have the fog lamp on the left-hand side, right-hand drive cars on the right-hand side.

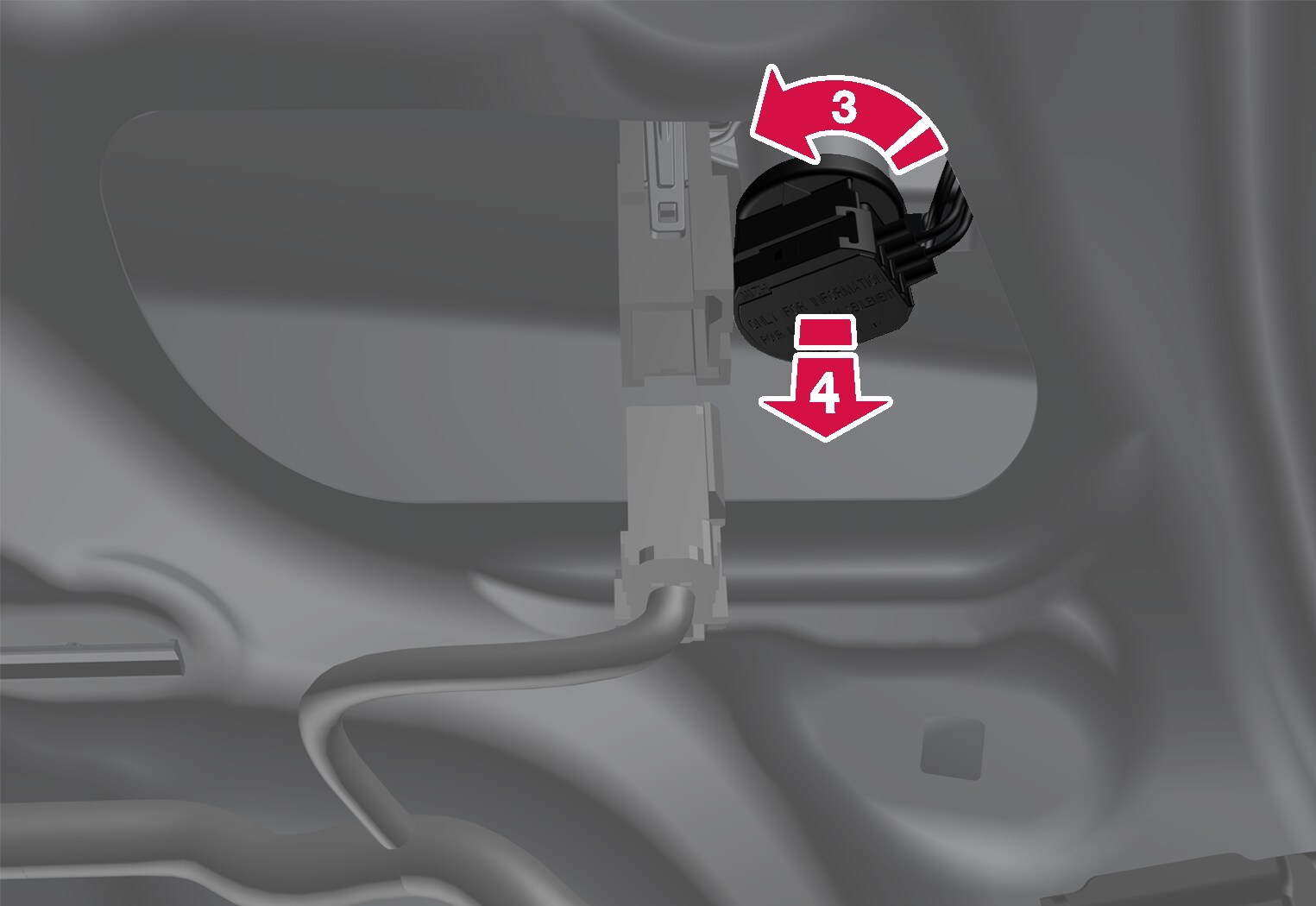

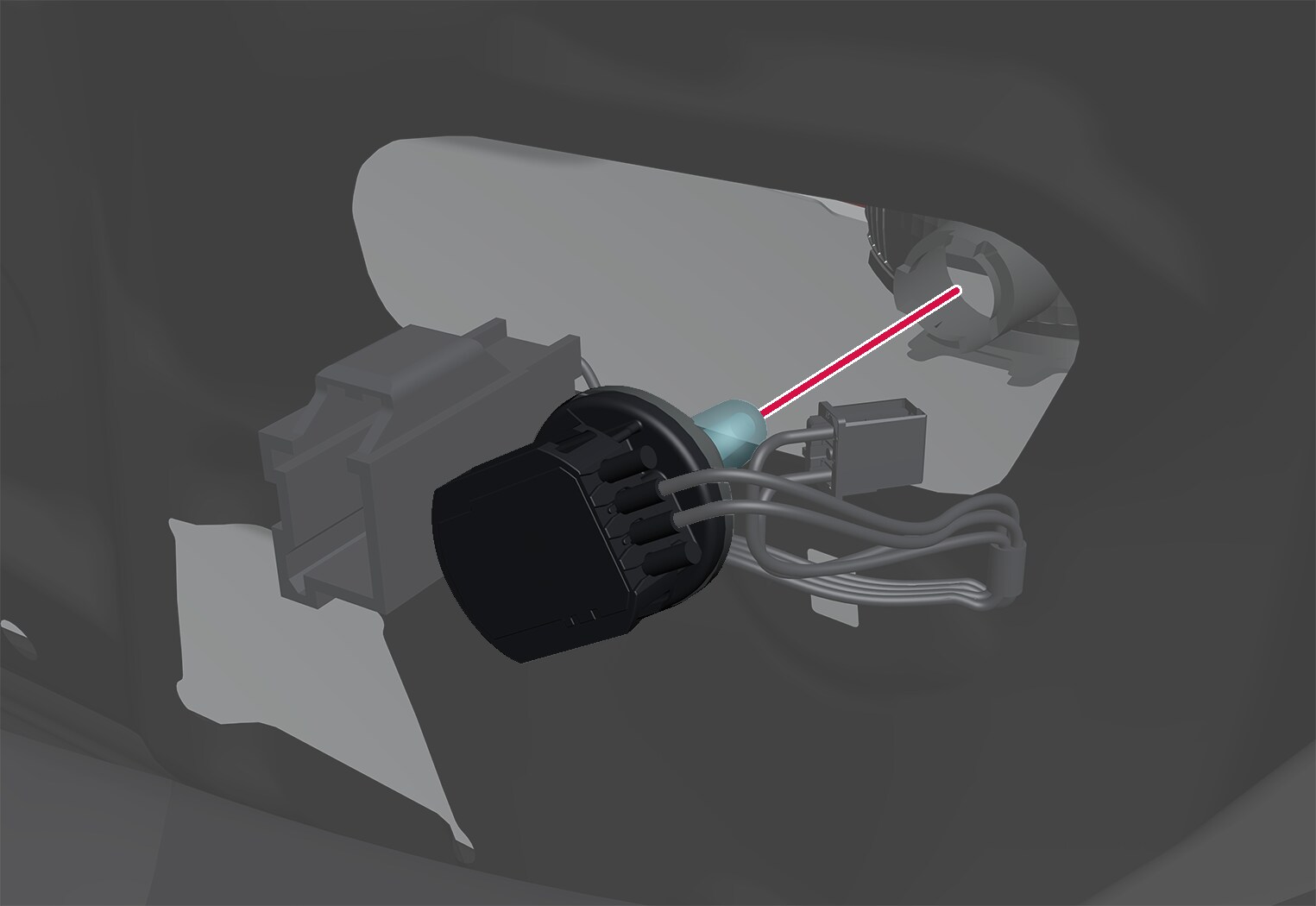

The rear fog lamp bulb is replaced as follows:

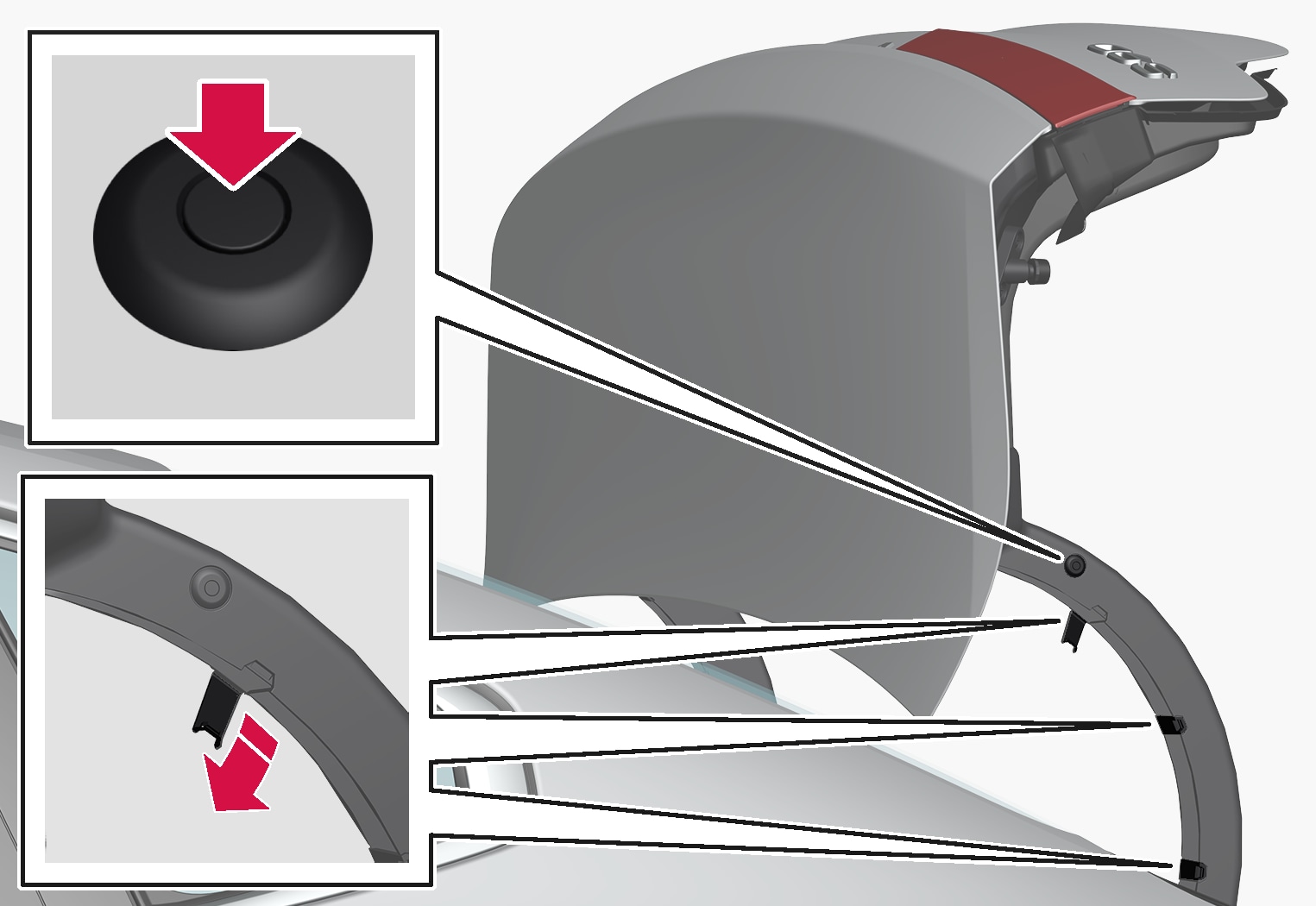

Points to remember when the plastic rivet for the hinge's plastic guard is refitted:
- Before you can use the plastic rivet for refitting, you must first press its centre pin backwards as far as it protrudes from the plastic rivet.
- When the hinge's plastic guard has been fixed in place, press the plastic rivet into the hole in the plastic guard.
- Finally, press the pin into the plastic rivet until the end surface is level with the surface of the plastic rivet.
Rear fog lamp on left-hand side
Rear fog lamp on right-hand side

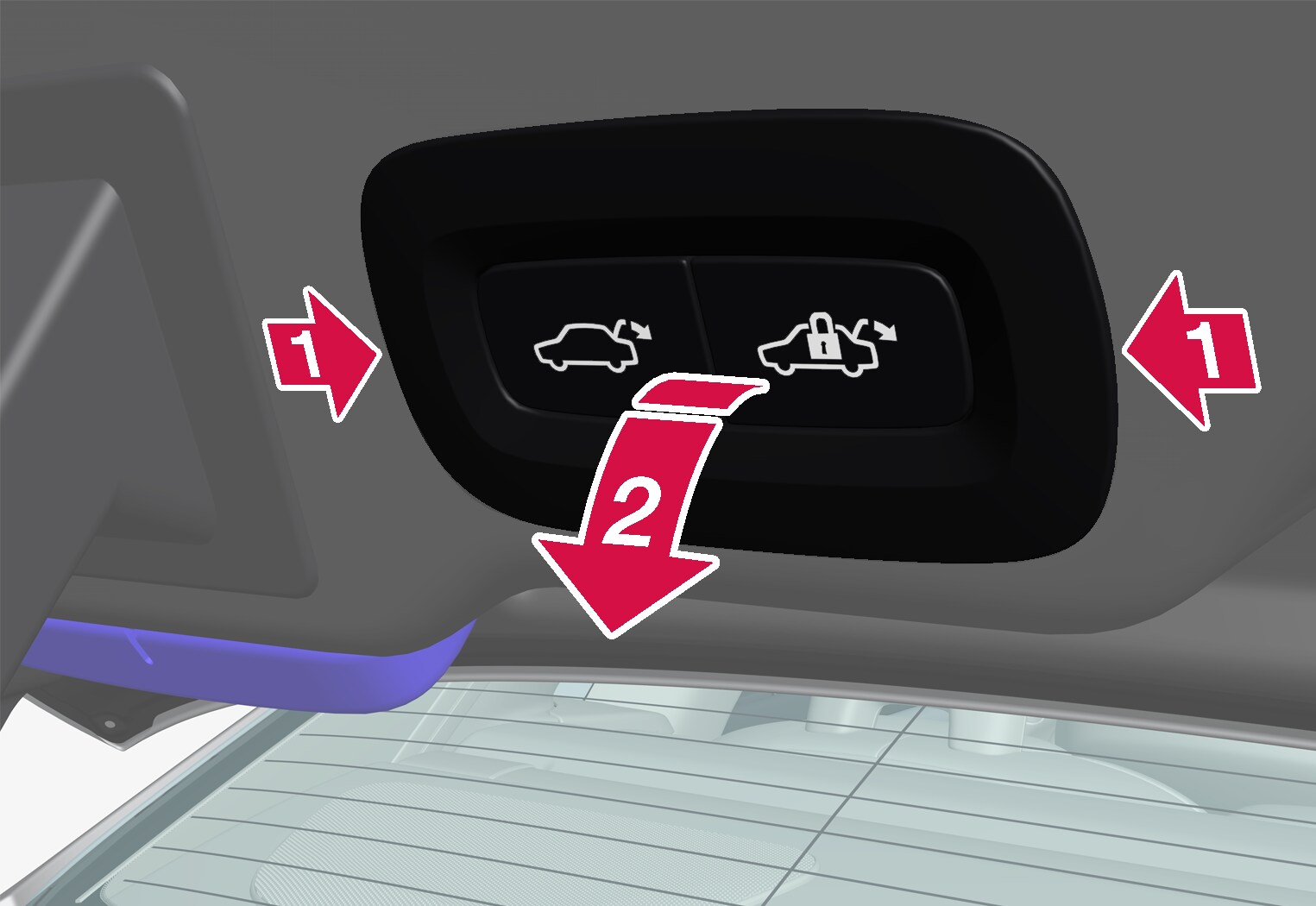

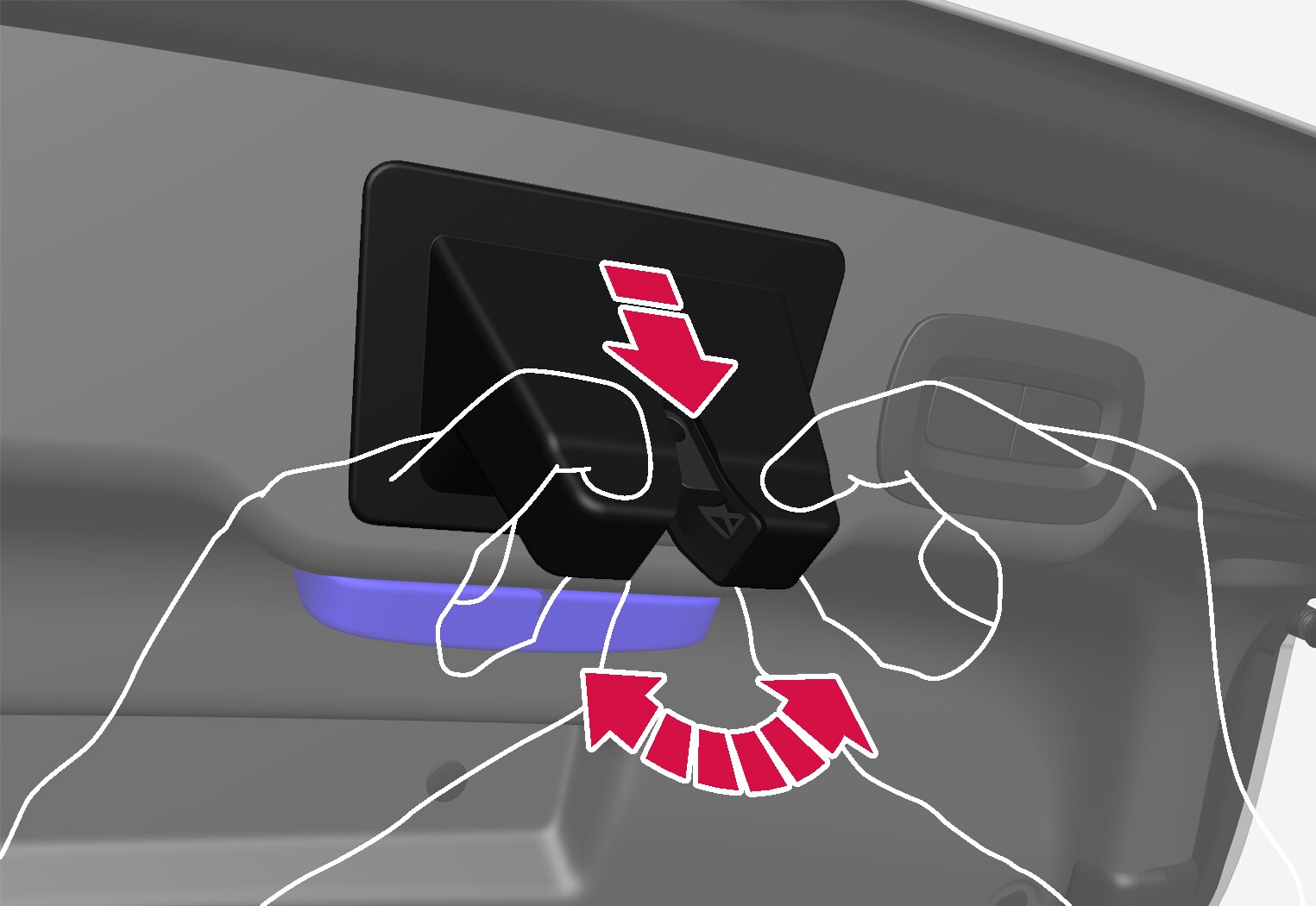

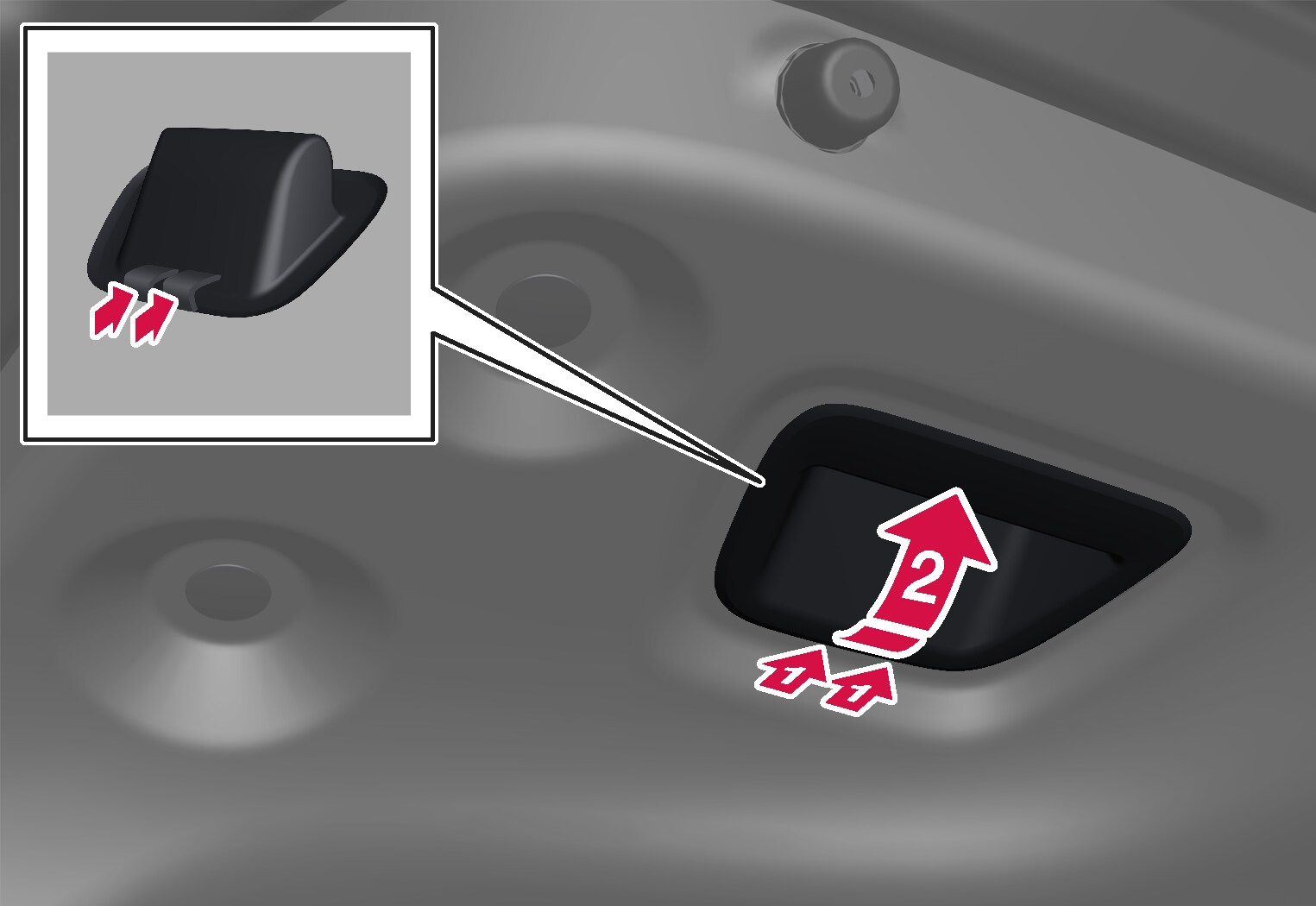

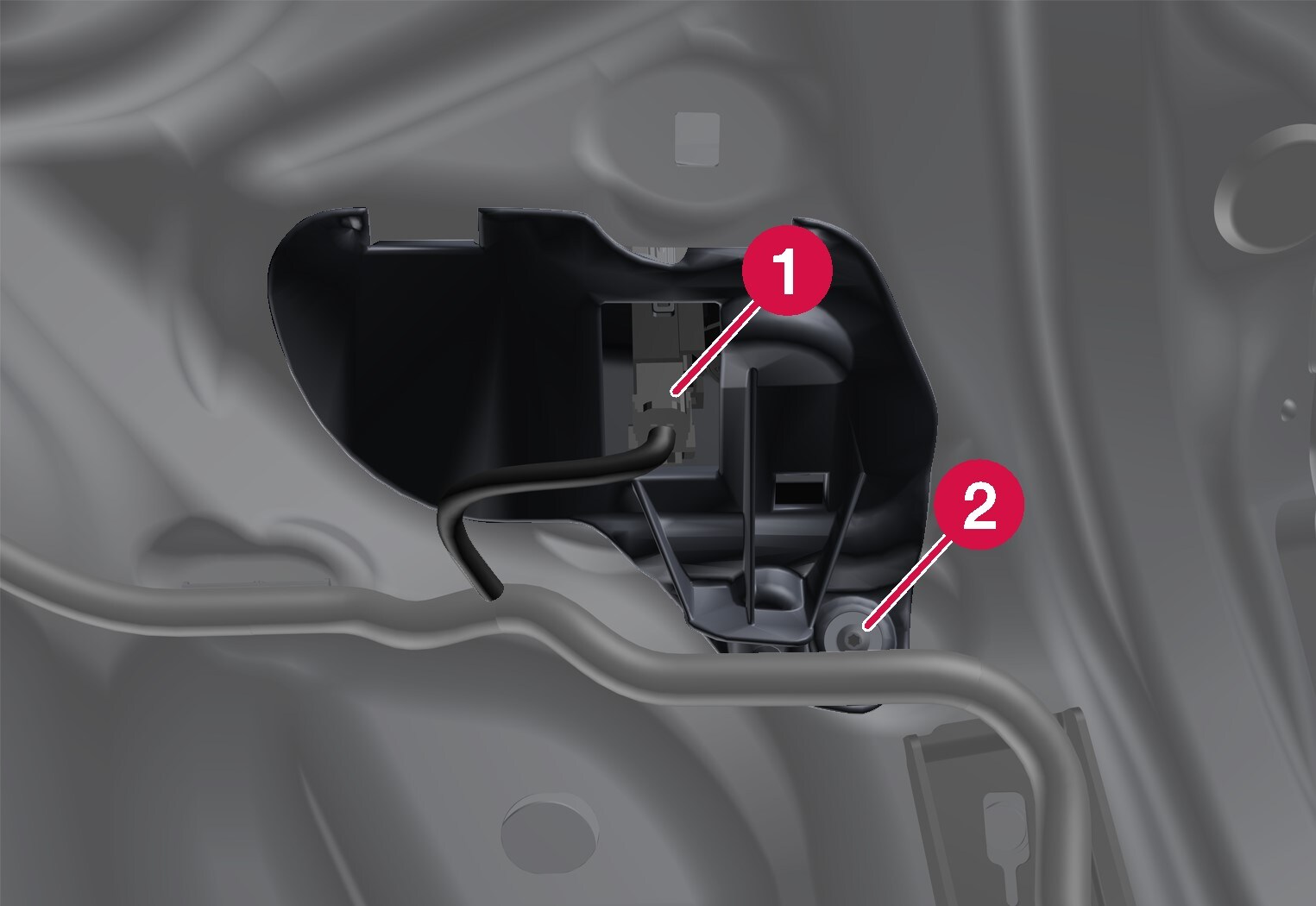

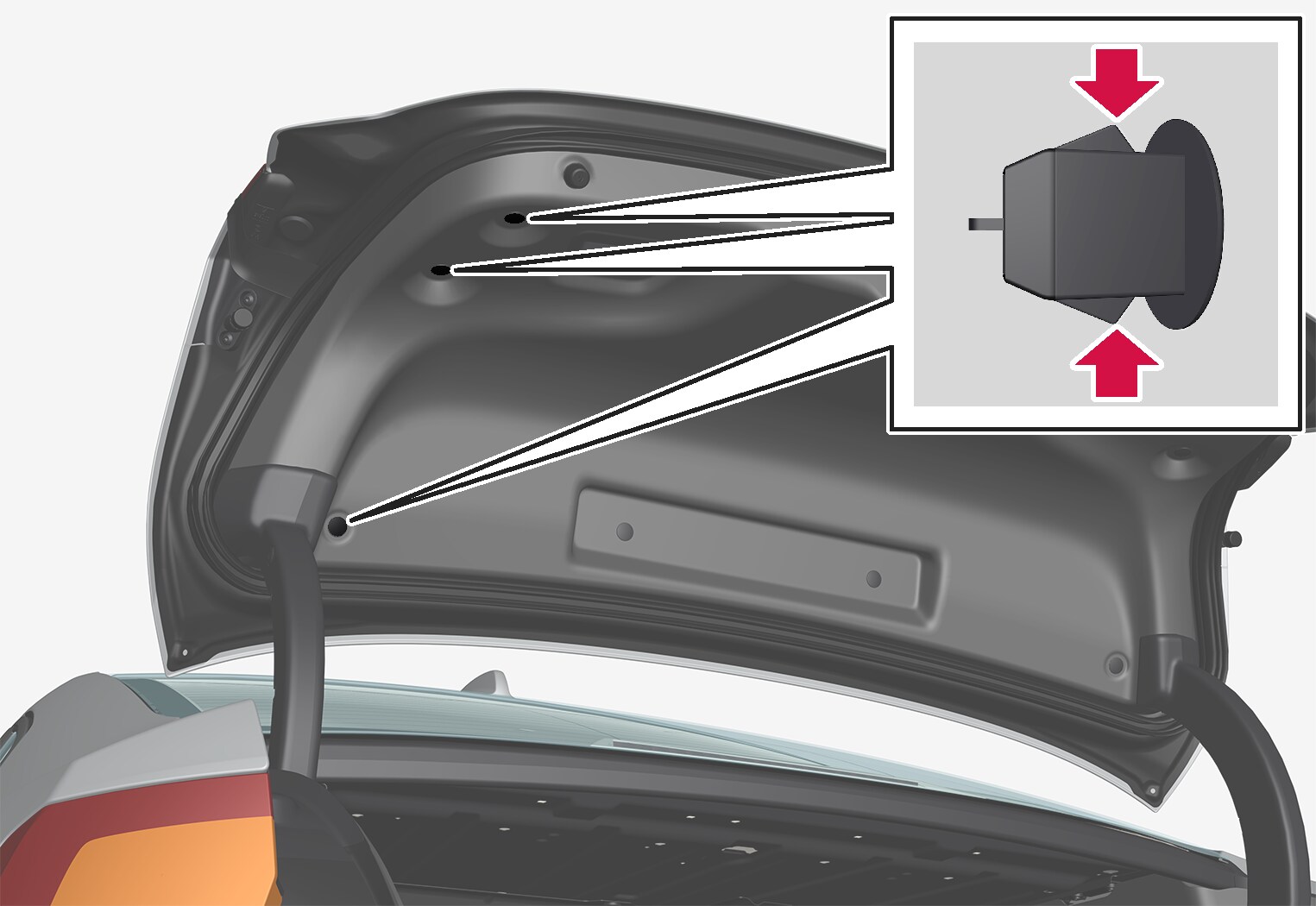

Cars with the rear fog lamp on the right-hand side have a cover over the bulb holder - which is why there are several additional steps before the bulb can be replaced.
