Fuses in engine compartment

Fuses in the engine compartment protect engine and brake functions, amongst other things.
P5-1617-S90/V90 EJB Fuses

On the inside of the cover there are tweezers that facilitate the procedure for the removal and fitting of fuses.

The fuse box also provides space for several spare fuses.

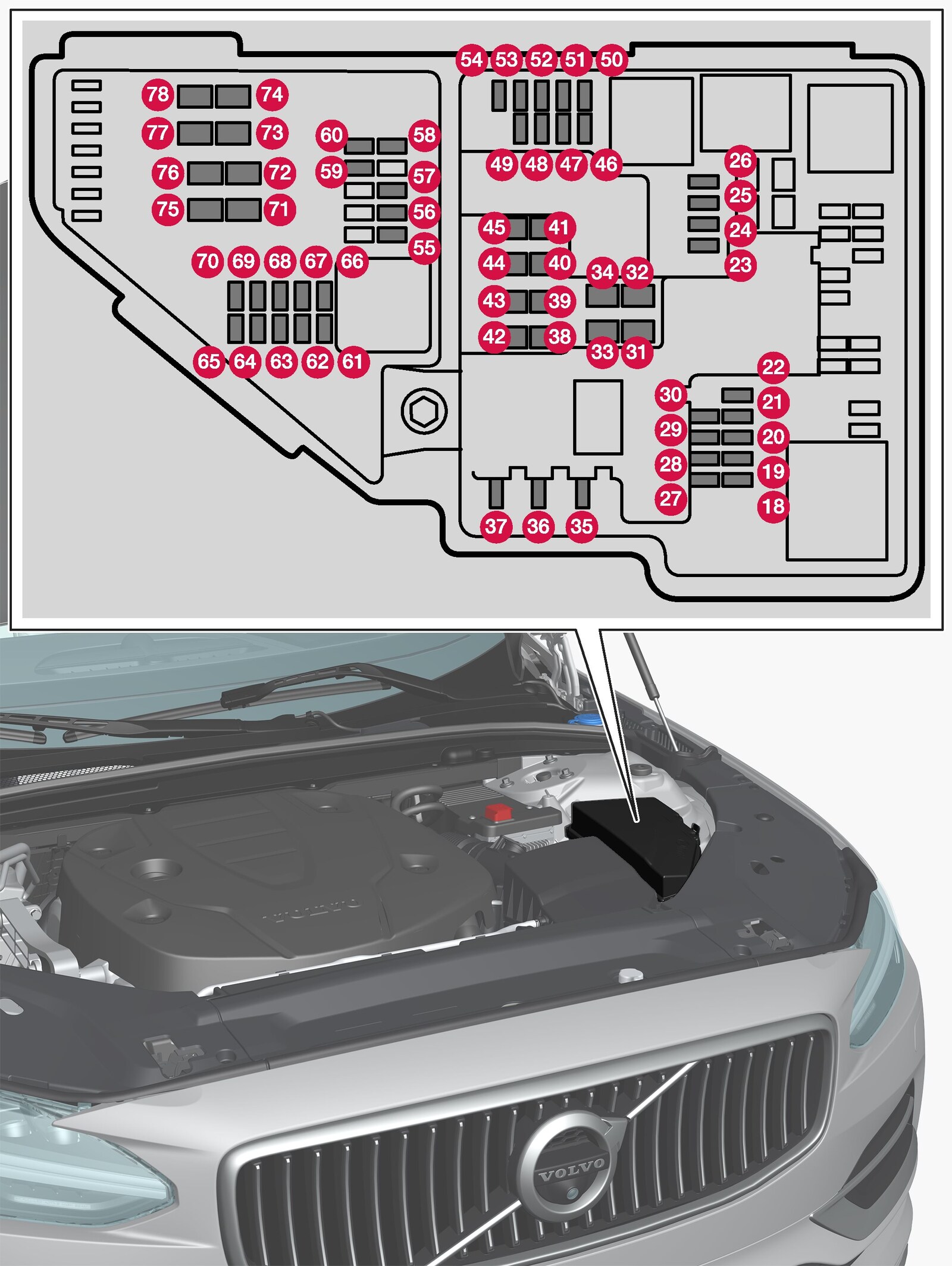

Positions

On the inside of the cover is a label that shows the location of the fuses.

  • Fuses 18-30, 35-37, 46-54 and 55-70 are of the "Micro" type.
  • Fuses 31-34, 38-45 and 71-78 are of the "MCase" type and should be replaced by a workshop1.
Function A2
P5-Icon red circle 18--
P5-Icon red circle 19--
P5-Icon red circle 20--
P5-Icon red circle 21--
P5-Icon red circle 22--
P5-Icon red circle 23USB port in tunnel console, front*5
P5-Icon red circle 2412 V socket in tunnel console, front15
P5-Icon red circle 2512 V socket in tunnel console, by legroom for second seat row15
P5-Icon red circle 26

12 V socket in cargo area*

15
P5-Icon red circle 27--
P5-Icon red circle 28--
P5-Icon red circle 29--
P5-Icon red circle 30--
P5-Icon red circle 31Heated windscreen* left-hand sideShunt
P5-Icon red circle 32Heated windscreen* left-hand side40
P5-Icon red circle 33Headlamp washers*25
P5-Icon red circle 34Windscreen washers25
P5-Icon red circle 35--
P5-Icon red circle 36Horn20
P5-Icon red circle 37Siren*5
P5-Icon red circle 38Control module for brake system (valves, parking brake)40
P5-Icon red circle 39Windscreen wipers30
P5-Icon red circle 40

-

-

P5-Icon red circle 41Heated windscreen* right-hand side40
P5-Icon red circle 42

Parking heater*

20

P5-Icon red circle 43Control unit for brake system (ABS pump)40
P5-Icon red circle 44--
P5-Icon red circle 45Heated windscreen* right-hand sideShunt
P5-Icon red circle 46Supplied when the ignition is switched on: Engine control module; Transmission components; Electric steering servo; Central electronic module; Control module for brake system5
P5-Icon red circle 47--
P5-Icon red circle 48Right-hand headlamp7.5
Right-hand headlamp, certain variants of LED37.5
P5-Icon red circle 49--
P5-Icon red circle 50--
P5-Icon red circle 51Module for controlling battery engagement5
P5-Icon red circle 52Airbags5
P5-Icon red circle 53Left-hand headlamp7.5
Left-hand headlamp, certain variants of LED37.5
P5-Icon red circle 54Accelerator pedal sensor5
P5-Icon red circle 55Transmission control module15
P5-Icon red circle 56Engine Control Module (ECM)5
P5-Icon red circle 57--
P5-Icon red circle 58--
P5-Icon red circle 59--
P5-Icon red circle 60--
P5-Icon red circle 61Engine control module; Actuator; Throttle unit; EGR valve (diesel); Position sensor for turbo (diesel); Valve for turbocharger (petrol)20
P5-Icon red circle 62Solenoids (petrol); Valve; Thermostat for engine cooling system (petrol); EGR cooling pump (diesel); Glow control module (diesel)10
P5-Icon red circle 63Vacuum regulators; Valve; Valve for output pulse (diesel)7.5
P5-Icon red circle 64

Control module for spoiler roller cover; Control module for radiator roller cover; Relay coils for output pulse (diesel)

5
P5-Icon red circle 65--
P5-Icon red circle 66Lambda-sond, front; Lambda-sond, rear (petrol)15
P5-Icon red circle 67Solenoid for engine oil pump; Solenoid clutch A/C; Lambda sond, centre (petrol); Lambda sond, rear (diesel)15
P5-Icon red circle 68--
P5-Icon red circle 69Engine Control Module (ECM)20
P5-Icon red circle 70Ignition coils (petrol); Spark plugs (petrol)15
P5-Icon red circle 71Fuel filter heater (diesel)30
P5-Icon red circle 72--
P5-Icon red circle 73--
P5-Icon red circle 74--
P5-Icon red circle 75--
P5-Icon red circle 76--
P5-Icon red circle 77Starter motorShunt
P5-Icon red circle 78Starter motor40
  1. 1 An authorised Volvo workshop is recommended.
  2. 2 Ampere
  3. * Option/accessory.
  4. 3 LED (Light Emitting Diode)
