Air distribution

The climate control system distributes the incoming air via a number of different vents in the passenger compartment.

Overview of air distribution

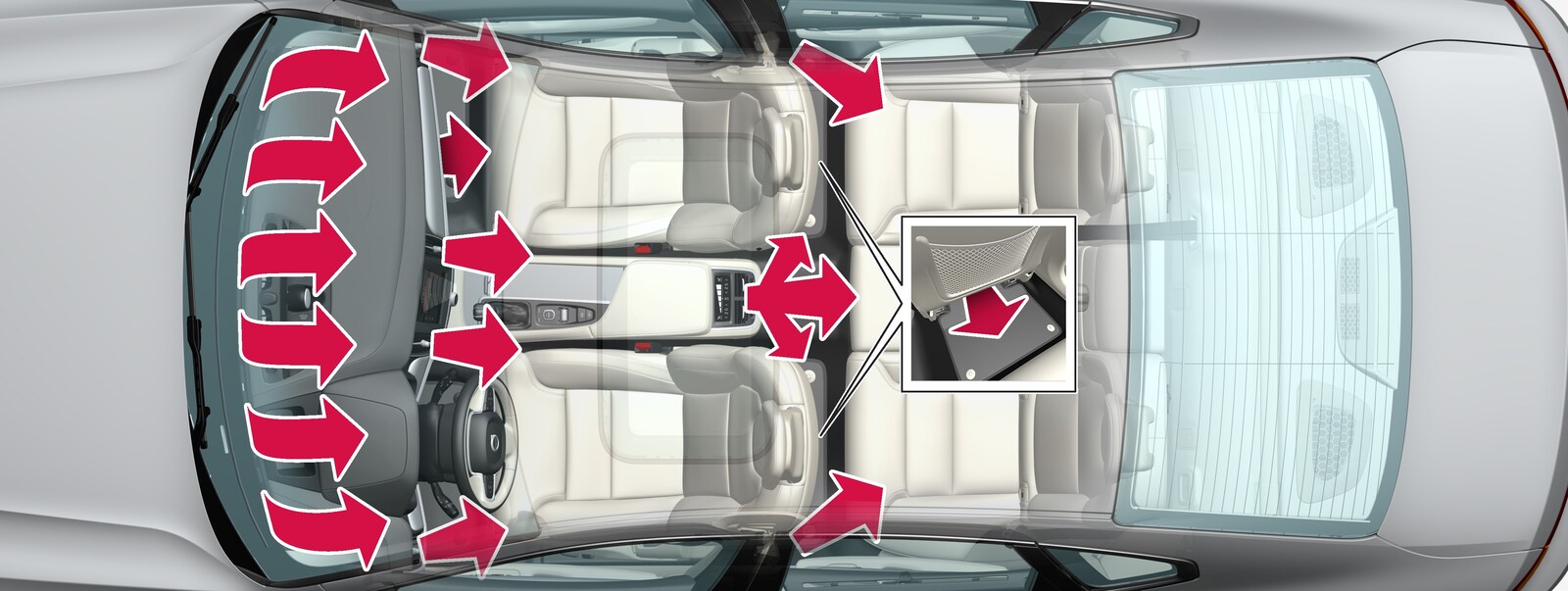

P5-1617-S90/V90–Climate–Air distribution overview
Air distribution in the passenger compartment with 4-zone climate.

Automatic and manual air distribution

With auto-regulated climate running the air distribution takes place automatically. If necessary, the air distribution can be controlled manually.

Adjustable air vents

There are 6 or 8* adjustable air vents in the passenger compartment depending on the climate control system.

P5-1617-S90/V90–Climate–Air vents regulation overview
Location of adjustable air vents in the passenger compartment.
  1. P5-Icon red circle 1With 2-zone climate - four on the instrument panel and one on each of the door pillars between the front and rear doors.
  2. P5-Icon red circle 2Addition with 4-zone climate* - two at the rear of the tunnel console.


Remember that small children may be sensitive to air flows and draughts.
  1. * Option/accessory.
