Lamp replacement - headlamps

All of the headlamp bulbs are replaced via the engine compartment. First loosen and remove the whole headlamp.

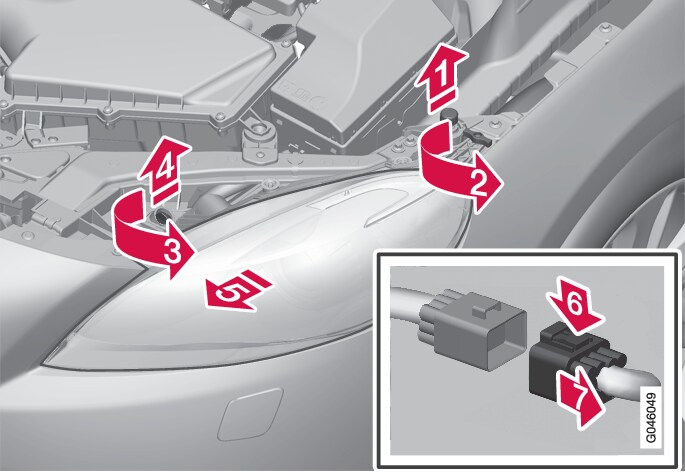

P4-1220-Y55X-Lamphouse removal 1
Ikon röd pil 1 Lift out the bonnet stop.
Ikon röd pil 2 Loosen the screw with a Torx tool, size T30.

Ikon röd pil 3 Turn the locking pin anticlockwise.

Ikon röd pil 4 Pull out the locking pin.

Ikon röd pil 5 Release the headlamp by alternately tilting and pulling it out.


Take care when lifting out the headlamp so as not to damage any parts.

Ikon röd pil 6 Press down the catch.

Ikon röd pil 7 Unplug the connector.

Place the headlight on a soft surface so as not to scratch the lens.


Do not pull the electrical cable, only the connector.
Replace the relevant bulb as instructed.

The headlamp must be fitted and the contact fitted correctly before switching on the lights or changing key position.
