Climate control - sensors

The climate control system has a number of sensors to help control the climate in the car. Do not cover or block the sensors with clothing or other objects.

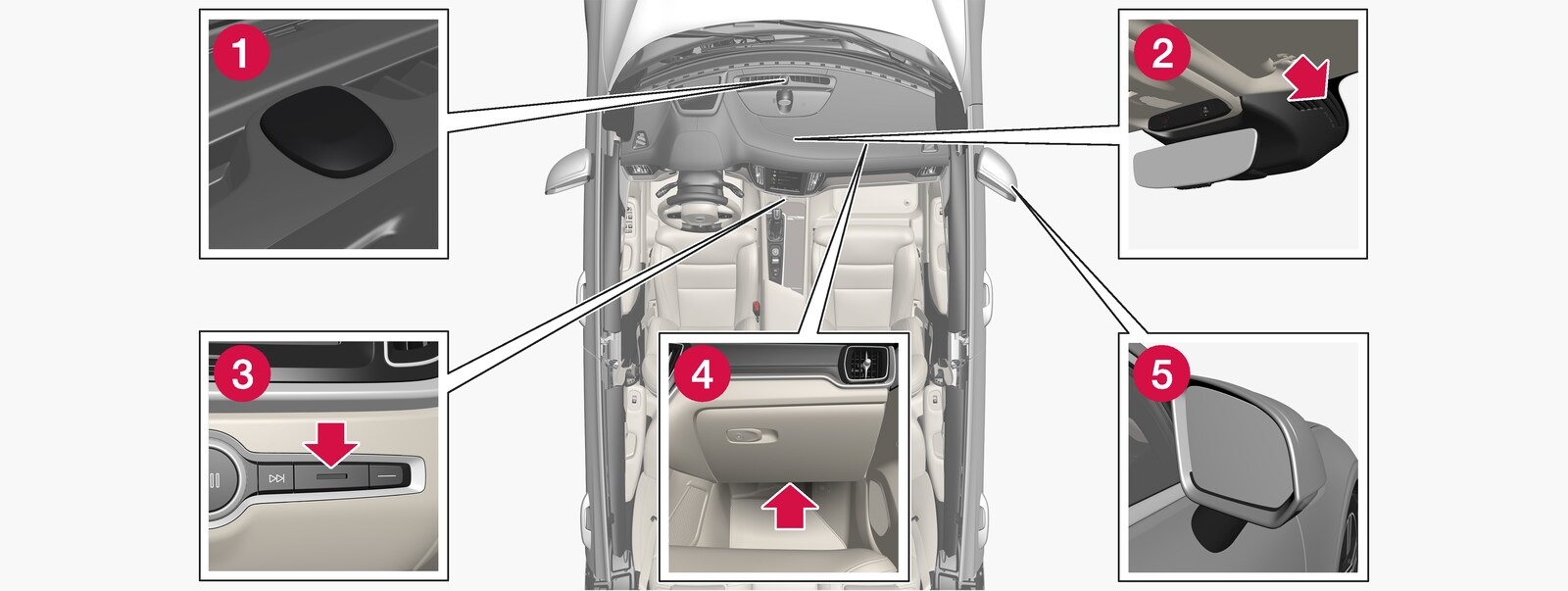

Sensor location

P5-1917-S60/V60–Climate–Sensors China
  1. P5-Icon red circle 1Sun sensor - on the upper side of the instrument panel.
  2. P5-Icon red circle 2Moisture sensor - in the casing by the interior rearview mirror.
  3. P5-Icon red circle 3Temperature sensor for the passenger compartment - by the physical buttons in the centre console.
  4. P5-Icon red circle 4Airborne particulate matter sensor* – on the underside of the glovebox.
  5. P5-Icon red circle 5Outside temperature sensor - in the right-hand door mirror.

With the Interior Air Quality System* there is also an air quality sensor that is fitted into the climate control system air intake.

  1. * Option/accessory.
