Fitting and removing cargo cover*
In the extended position, the cargo cover and the rear panel prevent visual access to the cargo area.
Fitting cargo cover
Insert one of the cargo cover's end pieces in the recess in the side panel in the cargo area.
Then insert the other end piece in the recess in the side panel on the opposite side.
Ensure that the front panel is pointing down behind the backrests before the cassette is put in place.
Press down the end pieces on both sides - one by one.
Installation of the tailgate panel
A panel must be fitted on the tailgate when using the cargo cover.

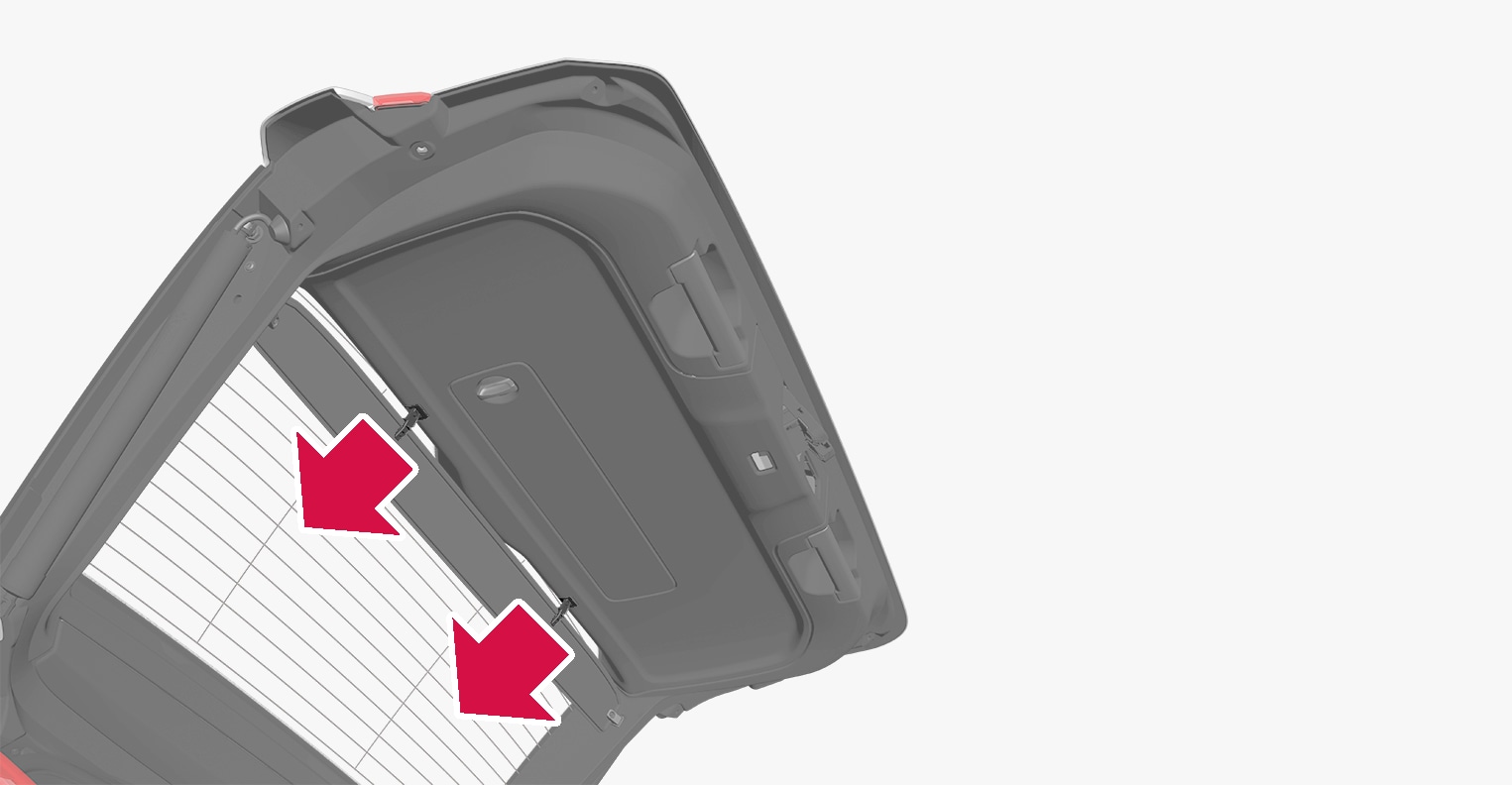

Turn the panel in the right direction with the screw side downward and guide the pin into the bracket on one side of the tailgate.

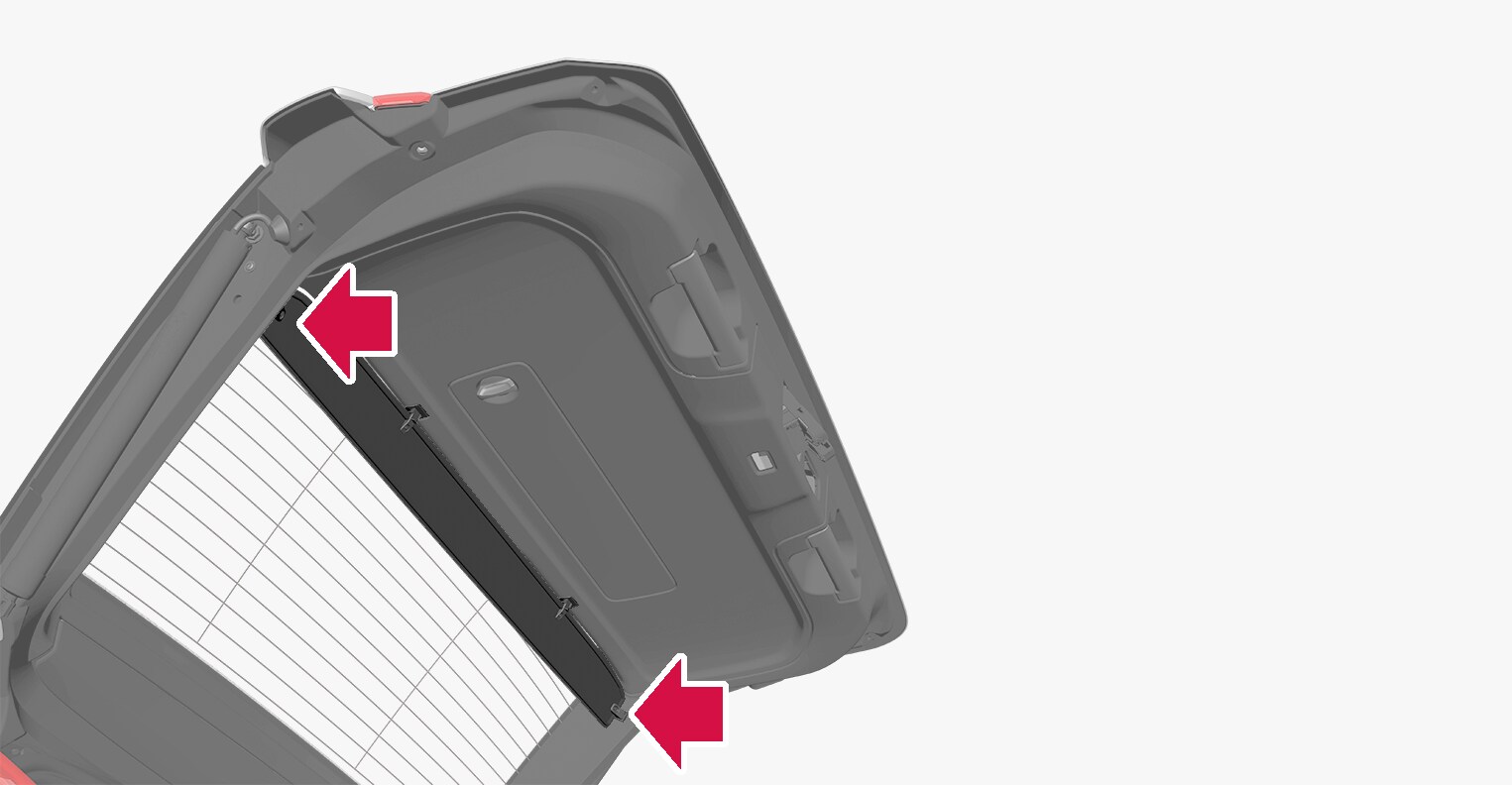

Press the two upper clips into the respective sockets in the tailgate so that they click into place.
Removing cargo cover
Depress the button on one of the retracted cargo cover's end pieces and lift out that end.
Removal of the tailgate panel
If the cargo cover is not in use then the rear panel can be removed.

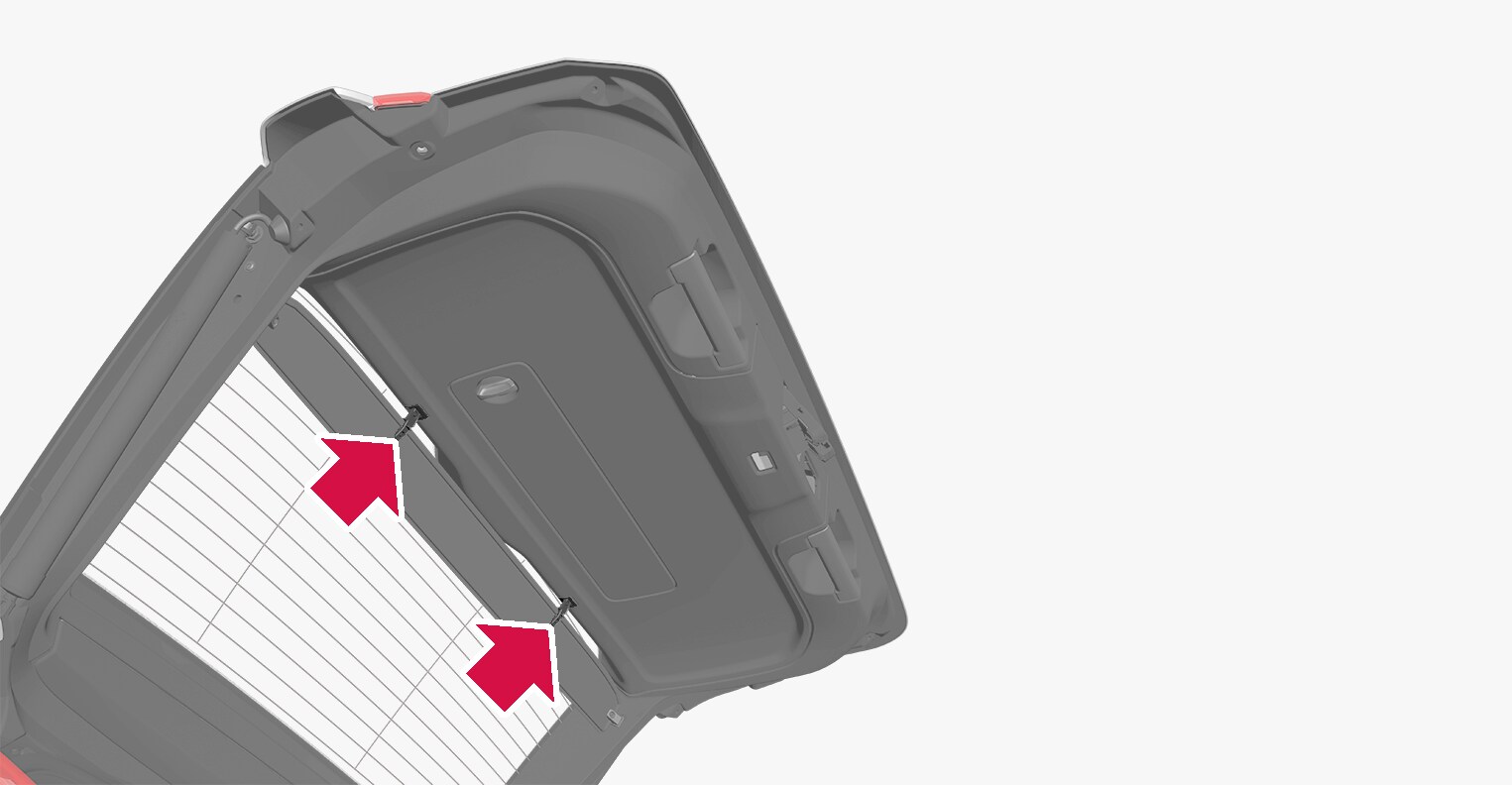

Pull the panel's upper clips straight out from the tailgate.
Carefully pull the panel away from the bracket on one side of the tailgate, and then from the other side. If necessary, clamp the panel slightly so that it is more flexible and to facilitate removal.
