Adjusting the head restraints in the rear seat
Adjust the centre seat head restraint according to the height of the passenger. Fold down the outer seat head restraints* to improve rearward visibility.
Adjust the head restraint for the centre seat
The centre seat's head restraint must be adjusted according to the passenger's height so that, if possible, the whole of the back of the head is covered. Slide it up manually as required.
To lower the head restraint, the button (see illustration) must be depressed while the restraint is carefully moved down.
Fold down the rear seat's outer head restraints via the centre display*
The outer head restraints can be retracted via the centre display. Lowering the head restraint is possible when the car is in Passive usage mode.
Move the head restraint back manually until a click is heard.
Fold down the rear seat's outer head restraints using handles
For cars with electronically controlled head restraint folding*, the outer head restraints can be folded using handles on the top of the seat, see figure . Note that this method also folds the backrests. If only the head restraints shall be folded, e.g. to improve visibility, it can be performed from the centre display instead*.

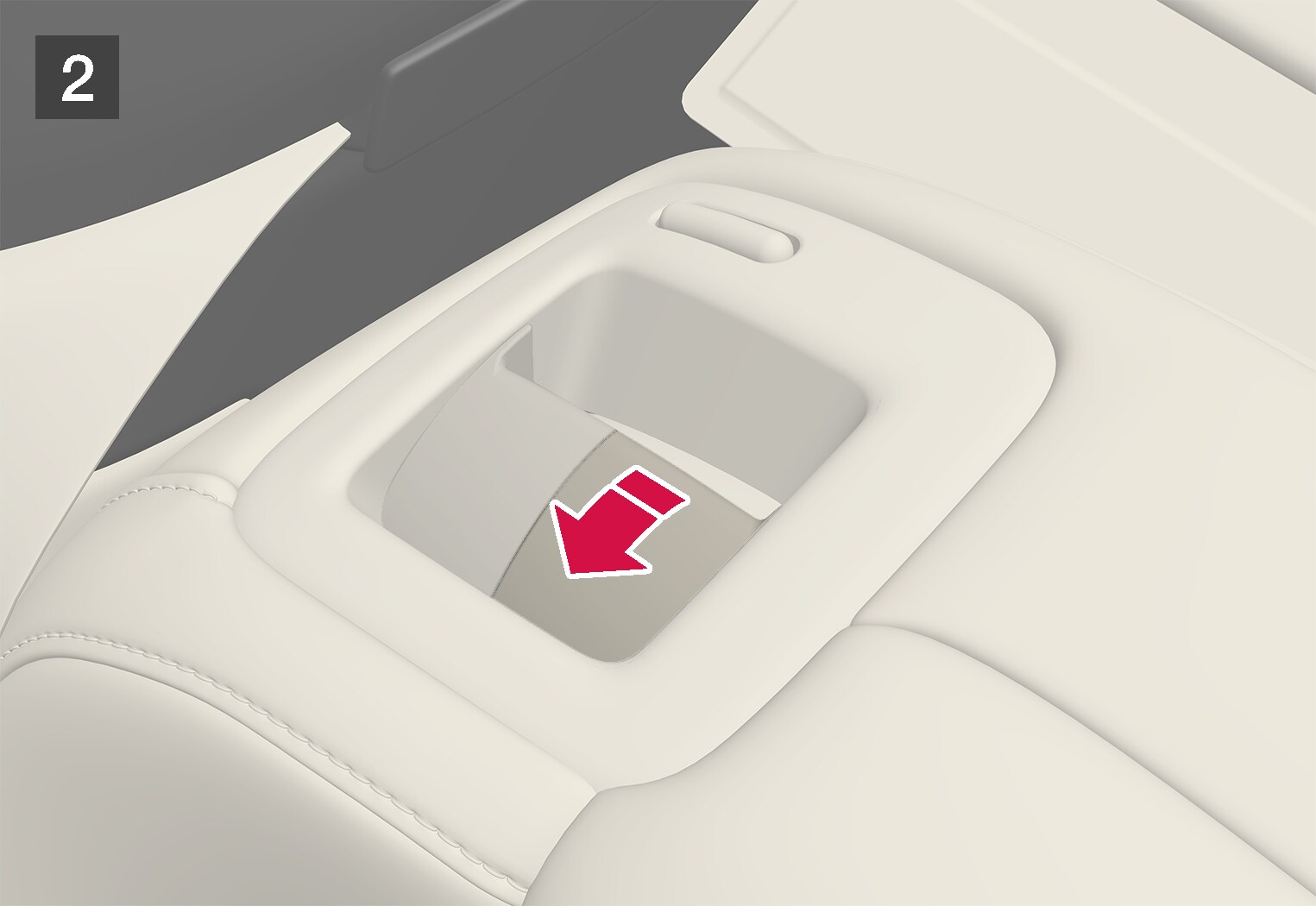

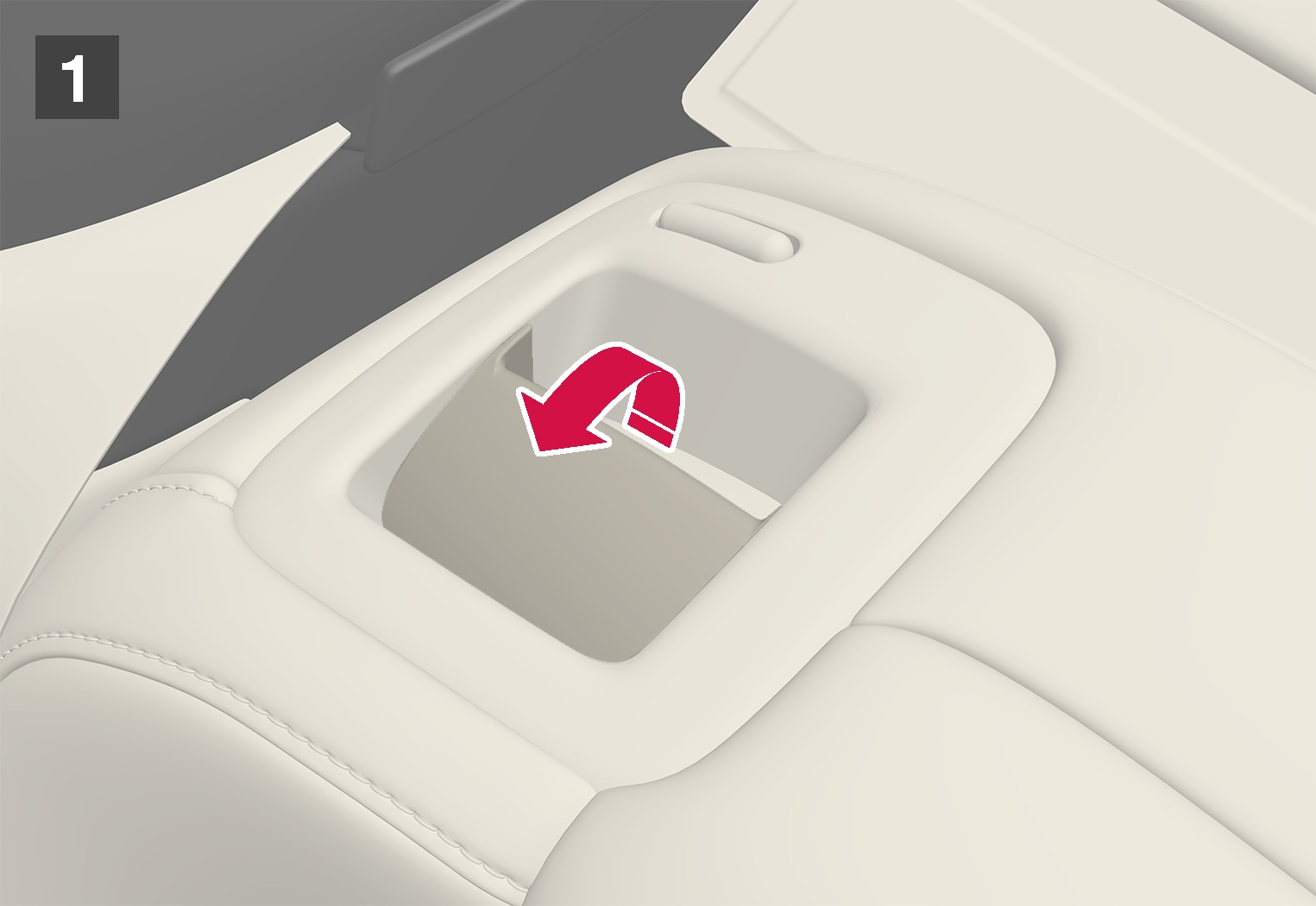

For cars without electronic folding, the outer head restraints are folded manually using the inner control on the upper side of the seat; see figure .
