Fuses - in cargo area

Positions

Box A	Function	A
	Electric parking brake, left	30
	Electric parking brake, right	30
	Rear window defroster	30
	Trailer socket 2*	15
	-	-
	12 V socket, cargo area	15
	-	-
	-	-
	-	-
	-	-
	Trailer socket 1*	40
	-	-

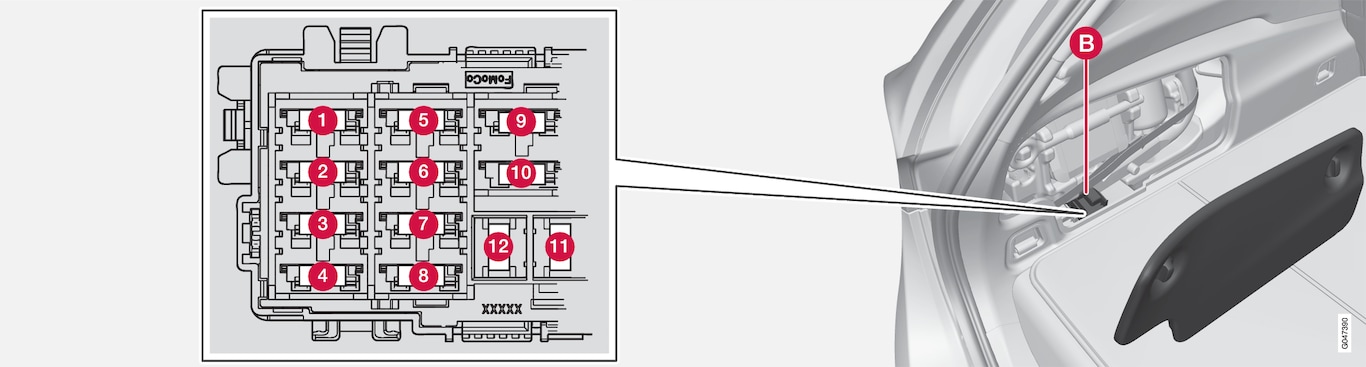

Box B	Function	A
	Coolant pump 1 for hybrid battery; Valve for coolant pumps 1 and 2	10
	Coolant pump 2 for hybrid battery	10
	Charging unit; Voltage converter 400 V-12 V; Control module for hybrid battery	5
	Coolant pump for the cooling system's low temperature circuit	15
	Charging unit; Voltage converter 400 V-12 V; Control module for hybrid battery	10
	Relay coils; High voltage converter for electric motor and integrated starter generator	10
	Disengaging the electric motor from the rear axle	15
	-	-
	High voltage converter for electric motor and integrated starter generator; Control module for hybrid battery	10
	Coolant valves for the cooling system's low temperature circuit; Electric A/C compressor; Valve for heat exchanger; Valve for climate control system	10
	-	-
	-	-
