Dimensions
This section lists your vehicle's most important dimensions.

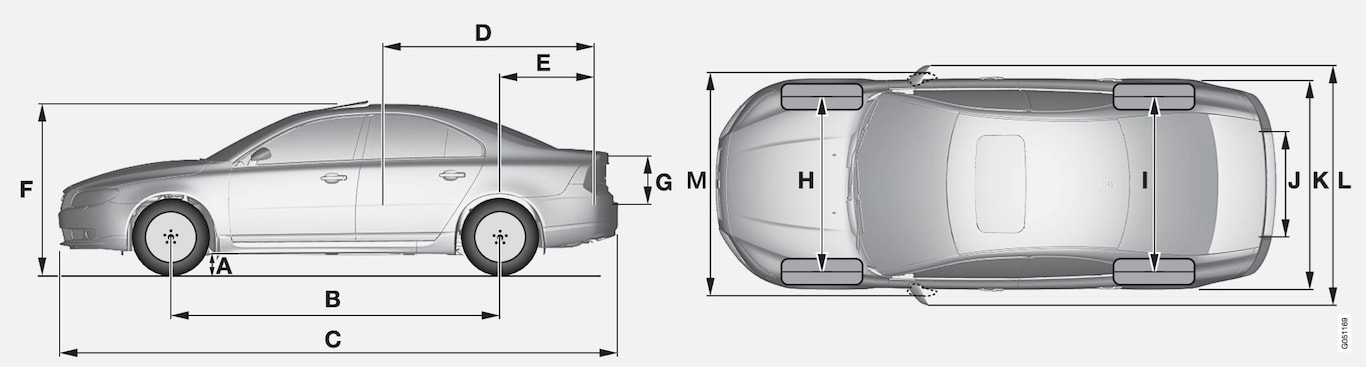

Dimensions–S80
| Position | Dimension | in. (mm) |
|---|---|---|
| A | Ground clearance (curb weight + 2 people)[1] | 5.3 (135) |
| B | Wheelbase | 111.6 (2835) |
| C | Length | 191.1 (4854) |
| D | Load length, floor, seatback down | 75.9 (1927) |
| E | Load length, floor | 43.1 (1094) |
| F | Height | 58.8 (1493) |
| G | Load height | 14.5 (368) |
| H | Track, front | 62.5 (1588)[2] 62.1 (1578)[3] |
| I | Track, rear | 62.4 (1585)[2] 62 (1575)[3] |
| J | Load width, floor | 44.5 (1130) |
| K | Width | 73.3 (1861) 73.9 (1876)[4] |
| L | Width incl. door mirrors (folded out) | 82.9 (2106) |
| M | Width incl. door mirrors (folded in) | 75.1 (1907) |
