Dimensions
This section lists your vehicle's most important dimensions.

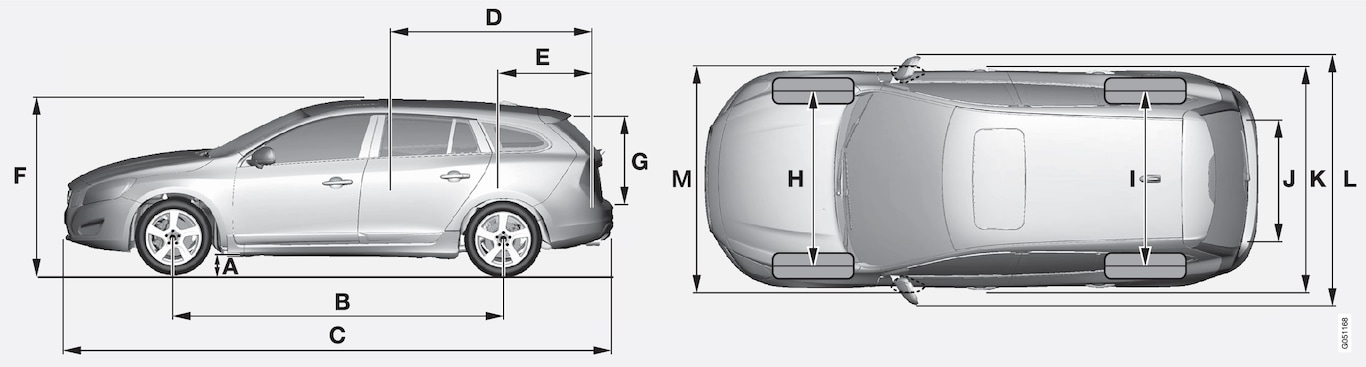

Dimensions–V60
| Position | Dimension | in. (mm) |
|---|---|---|
| A | Ground clearance (curb weight + 2 people)[1] | 4.9 (124) |
| B | Wheelbase | 109.3 (2776) |
| C | Length | 182.5 (4635) |
| D | Load length, floor, seatback down | 68.9 (1749) |
| E | Load length, floor | 38.5 (978) |
| F | Height | 58.4 (1484) |
| G | Load height | 25.9 (658) |
| H | Track, front | 62.5 (1588)[2]/ 62.1 (1578)[3] |
| I | Track, rear | 62.4 (1585)[2]/ 62.0 (1575)[3] |
| J | Load width, floor | 42.6 (1082) |
| K | Width | 73.5 (1866) |
| L | Width incl. door mirrors (folded out) | 82.6 (2097) |
| M | Width incl. door mirrors (folded in) | 74.8 (1899) |
