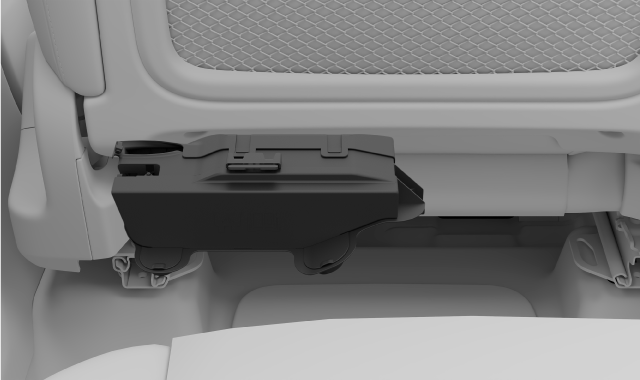

Fuse box underneath the left front seat

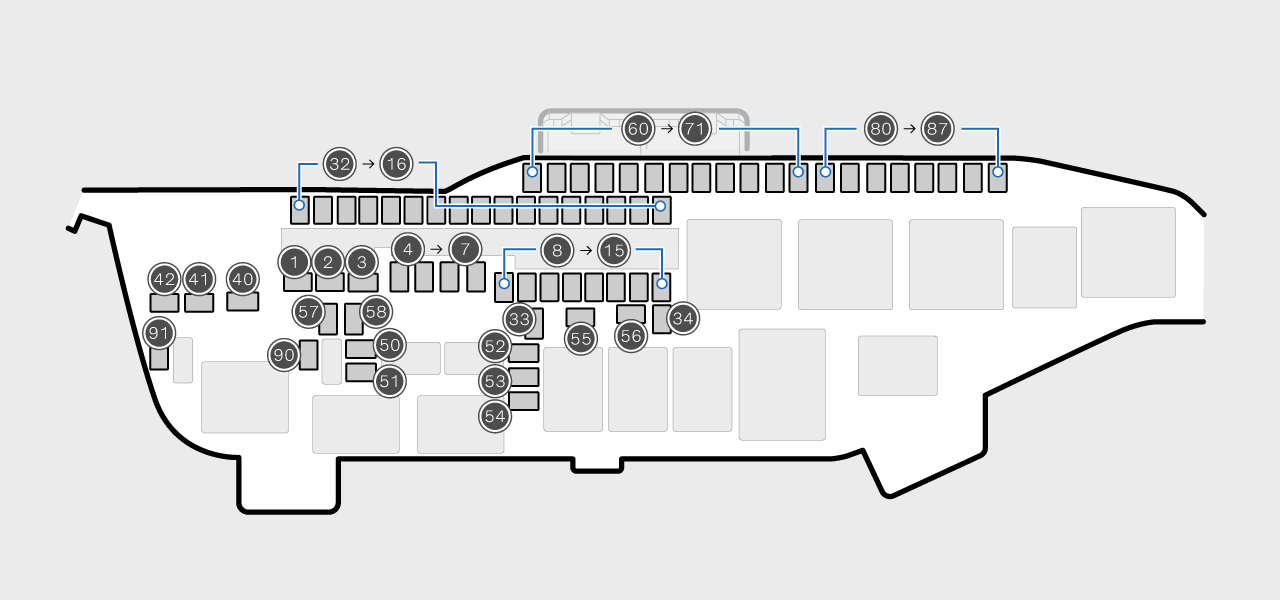

Here you can find fuse positions if you need to change a fuse. The fuses in this box help protect the electronics, for example in the power sockets, displays and doors. There are several fuse boxes in your vehicle.
To access the fuses you need to unclip the box lid.
| Number | Feature | Amperage | Type |
|---|---|---|---|
| 1 | Sound control unit | 40 | MCase+HT[1] |
| 2 | Central Electronic Module (CEM) A | 30 | MCase+HT[1] |
| 3 | Central Electronic Module (CEM) B | 30 | MCase+HT[1] |
| 4 | Fan for front climate | 40 | MCase+HT[1] |
| 5 | Power-operated tailgate | 25 | MCase+[1] |
| 6 | Right front seat | 20 | MCase+[1] |
| 7 | – | – | MCase+[1] |
| 8 | – | – | MCase+[1] |
| 9 | Right rear door module | 20 | Micro |
| 10 | Left rear door module | 20 | Micro |
| 11 | Front left door module | 20 | Micro |
| 12 | Safety module (ASDM) | 5 | Micro |
| 13 | Front right door module | 20 | Micro |
| 14 | Rear seat heating | 15 | Micro |
| 15 | 48 V battery control unit | 5 | Micro |
| 16 | Calculation module | 5 | Micro |
| 17 | Sun sensor | 5 | Micro |
| 19 | Climate | 7.5 | Micro |
| 20 | Interior motion sensors | 5 | Micro |
| 21 | Instrument panel | 5 | Micro |
| 22 | Buttons in the center stack | 5 | Micro |
| 23 | Steering wheel | 5 | Micro |
| 24 | Start knob, Electric gear selector, Parking brake | 5 | Micro |
| 25 | Center display | 5 | Micro |
| 26 | Connected services | 5 | Micro |
| 27 | TCAM antenna | 5 | Micro |
| 28 | Relay coils | 5 | Micro |
| 29 | Foot movement opening of the trunk | 5 | Micro |
| 30 | Infotainment | 15 | Micro |
| 31 | On-board diagnostic port OBDII | 10 | Micro |
| 32 | – | – | Micro |
| 33 | Rear left headrest | 15 | Micro |
| 34 | Rear right headrest | 15 | Micro |
| 40 | Heated rear windshield | 30 | MCase+[1] |
| 41 | Left seat belt pretensioner | 40 | MCase+ HT[1] |
| 42 | Right seat belt tensioner | 40 | MCase+ HT[1] |
| 50 | Humidity sensor, 48 V battery generator and converter | 5 | Micro |
| 51 | Fuel pump | 20 | Micro |
| 52 | Cooling fluid pump | 7.5 | Micro |
| 53 | Heated steering wheel | 15 | Micro |
| 54 | Air humidity sensor, Air particle sensor | 5 | Micro |
| 55 | Headlight washers | 25 | MCase+[1] |
| 56 | Windshield washers | 25 | MCase+[1] |
| 57 | – | – | MCase[1] |
| 58 | – | – | MCase[1] |
| 60 | – | – | Micro |
| 61 | – | – | Micro |
| 62 | – | – | Micro |
| 63 | – | – | Micro |
| 64 | Blind spot information (BLIS) | 5 | Micro |
| 65 | – | – | Micro |
| 66 | Front radar units | 5 | Micro |
| 67 | All-Wheel Drive (AWD) | 15 | Micro |
| 68 | Exhaust system | 5 | Micro |
| 69 | – | – | Micro |
| 70 | – | – | Micro |
| 71 | Air bags and seat belt pretensioners | 5 | Micro |
| 80 | Rear windshield wiper | 15 | Micro |
| 81 | Roof console | 20 | Micro |
| 82 | 360 parking camera | 5 | Micro |
| 83 | Interior lights, Rearview mirror, Rain and light sensors, Panels in rear doors and trunk | 7.5 | Micro |
| 84 | Wireless charging | 5 | Micro |
| 85 | Driver support features | 5 | Micro |
| 86 | – | – | Micro |
| 87 | USB ports | 5 | Micro |
| 90 | – | – | Micro |
| 91 | – | – | Micro |
