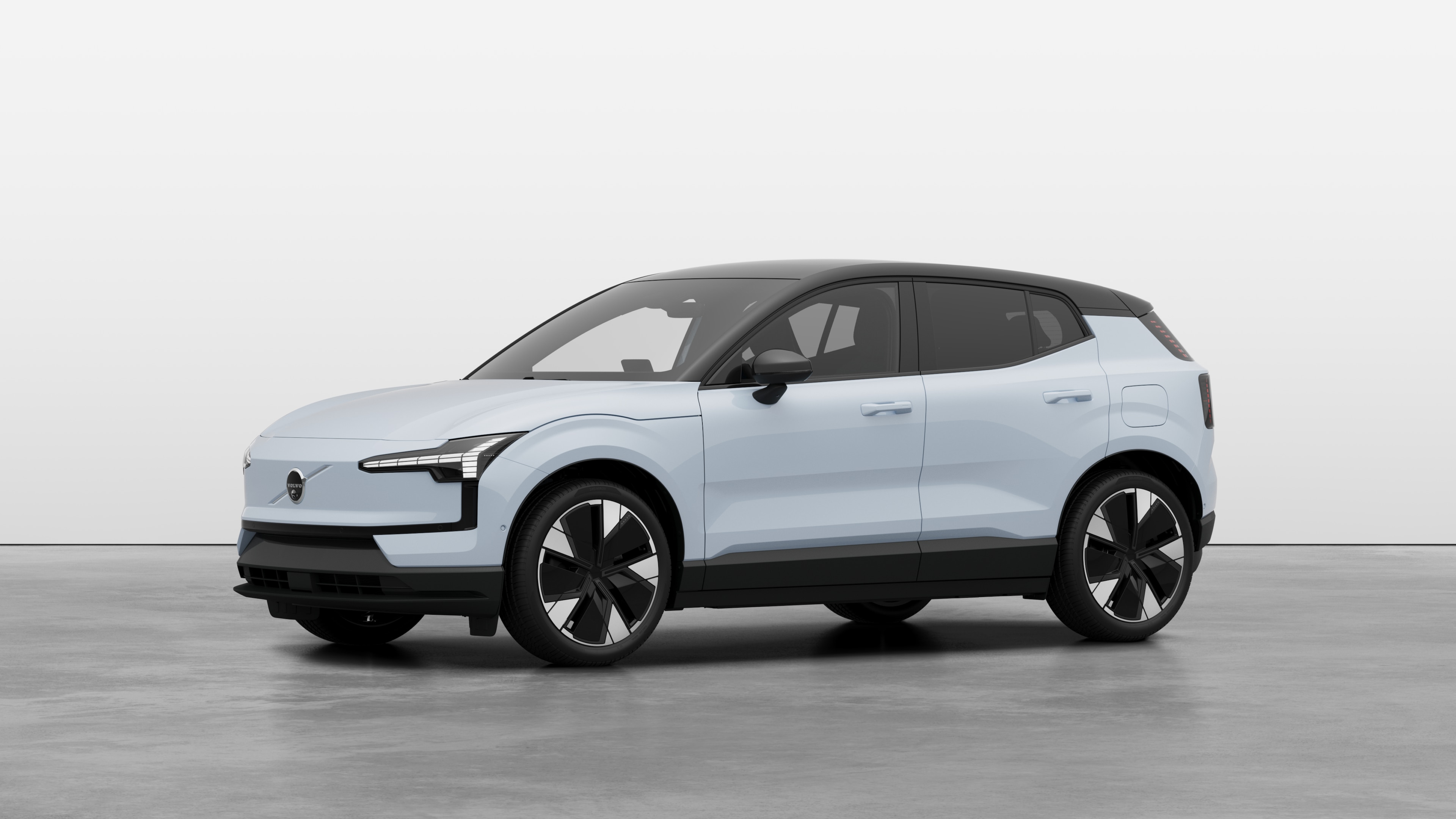

Explore EX30 specifications
Powertrain options. Key dimensions. Standard features and upgrades. All you need to find the right Volvo car for you.
Platform
Platform
Fuel Type
Electric
Driveline
RWD
Transmission
Automatic
Number of seats
5
Weight (Running Order Mass)
1 840 kg
Weight (Max Laden Mass)
2210 kg
Trailer max weight
1 000 kg
Roof load max weight
75 kg
Performance
Electric Range (Combined)
Up to 337 km
Electric Range (City)
Up to 441 km
Electric energy consumption total (WLTP)
17.1 kWh/100km
Electric energy consumption city (WLTP)
13.1 kWh/100km
Power
200 kW / 272 hp
Max torque
343 Nm
0-100 km/h
5.7 s
Top speed
180 km/h
Emissions CO₂ (Combined)
0 g/km
Charging
Battery energy (nominal)
51 kWh
Battery Charging Duration
6 h
Battery Charging Duration
26 m
Fuel Type
Electric
Driveline
RWD
Transmission
Automatic
Number of seats
5
Weight (Running Order Mass)
1 850 kg
Weight (Max Laden Mass)
2240 kg
Trailer max weight
1 600 kg
Roof load max weight
75 kg
Electric Range (Combined)
Up to 476 km
Electric Range (City)
Up to 592 km
Electric energy consumption total (WLTP)
17 kWh/100km
Electric energy consumption city (WLTP)
13.8 kWh/100km
Power
200 kW / 272 hp
Max torque
343 Nm
0-100 km/h
5.3 s
Top speed
180 km/h
Emissions CO₂ (Combined)
0 g/km
Battery energy (nominal)
69 kWh
Battery Charging Duration
8 h
Battery charging duration 10-80% (DC 175kW)
28 m
Fuel Type
Electric
Driveline
AWD
Transmission
Automatic
Number of seats
5
Weight (Running Order Mass)
1 960 kg
Weight (Max Laden Mass)
2335 kg
Trailer max weight
1 600 kg
Roof load max weight
75 kg
Electric Range (Combined)
Up to 450 km
Electric Range (City)
Up to 590 km
Electric energy consumption total (WLTP)
17.5 kWh/100km
Electric energy consumption city (WLTP)
13.3 kWh/100km
Power
315 kW / 428 hp
Max torque
543 Nm
0-100 km/h
3.6 s
Top speed
180 km/h
Emissions CO₂ (Combined)
0 g/km
Battery energy (nominal)
69 kWh
Battery Charging Duration
8 h
Battery charging duration 10-80% (DC 175kW)
28 m
Features and upgrades
Equipment level
Category
Not included
Optional
Included
Car dimensions
Exterior
Vehicle height at kerb weight with one person
1 550 mm
Width (mirrors incl)
2 032 mm
Front track width
1 590 mm
Width
1 838 mm
Width (mirrors folded)
1 940 mm
Rear track width
1 595 mm
Vehicle length
4 233 mm
Wheel base
2 650 mm
Turning circle
11 m
Interior
Max head room front
1 058 mm
Shoulder room rear
1 346 mm
Hip room front
1 379 mm
Head room rear
974 mm
Leg room front
1 063 mm
Hip room rear
1 175 mm
Shoulder room front
1 400 mm
Leg room rear
821 mm
Storage
Cargo floor width between wheel housing
994 mm
Second seatback to tailgate - top of second seatback
566 mm
First seatback to tailgate - top of first seatback
1 355 mm
Cargo capacity (max) - second row up
400 l
Cargo capacity (max) - rows folded
1 000 l
Cargo capacity (front)
7 l
