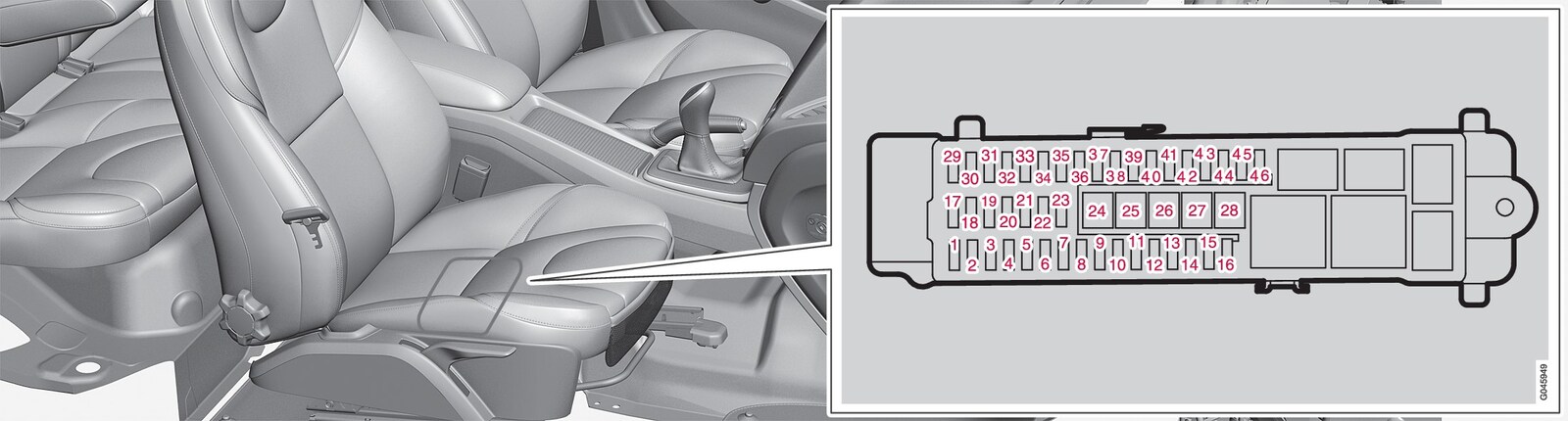

Fuses - under the right-hand front seat
Fuses under the right-hand front seat protect the infotainment system and seat heating, amongst other things.
On the inside of the cover for the fuse box in the engine compartment there are tweezers that facilitate the procedure for the removal and fitting of fuses.
The fuse box in the engine compartment also provides space for several spare fuses.
Positions
- Fuses 24-28 are of "JCASE" type and should be replaced by a workshop 1.
- Fuses 1-23 and 29-46 are of "Mini Fuse" type.
| Function | A2 | |
|---|---|---|
 | - | - |
 | Keyless system* | 10 |
 | Door handles, keyless system* | 5 |
 | Control panel, left front door | 25 |
 | Control panel, right front door | 25 |
 | Control panel, left rear door | 25 |
 | Control panel, right rear door | 25 |
 | Primary fuse for fuses 12-16: Infotainment | 25 |
 | Power seat, left* | 20 |
 | - | - |
 | Internal relay coil | 5 |
 | - | - |
 | - | - |
 | - | - |
 | - | - |
 | - | - |
 | 12 V socket, cargo area | 15 |
 | - | - |
 | - | - |
 | - | - |
 | - | - |
 | - | - |
 | Trailer socket 2* | 20 |
 | Audio control unit (amplifier)* | 30 |
 | - | - |
 | Trailer socket 1* | 40 |
 | Rear window defroster | 30 |
 | - | - |
 | BLIS* | 5 |
 | Parking assistance* | 5 |
 | Parking camera* | 5 |
 | - | - |
 | - | - |
 | Seat heating, front driver's side | 15 |
 | Seat heating, front passenger side | 15 |
 | - | - |
 | - | - |
 | - | - |
 | Seat heating, rear right* | 15 |
 | Seat heating, rear left* | 15 |
 | AWD control module* | 15 |
 | - | - |
 | - | - |
 | - | - |
 | Audio control module (amplifier)*, signal for diagnosis; Audio control module or Control module Sensus3; Infotainment control module or Screen3; Digital radio*; TV* | 15 |
 | Telematics*; Bluetooth* | 5 |
