Operating the panorama roof*
When operating with the control in the roof, the panoramic roof is first opened horizontally to a comfort position.
In ventilation position, the front glass cover in the roof is raised at the rear.
경고
Children, other passengers or objects may be trapped by the panorama roof's moving parts.
- Always operate the panorama roof with caution.
- Do not allow children to play with the controls.
- Remember to always switch off the power supply to the panorama roof by setting the car's electrical system in ignition position 0, and then take the remote control key with you when leaving the car.
중요
In order that the panoramic roof and sun blind can be operated, the car's electrical system must be in at least ignition position I.

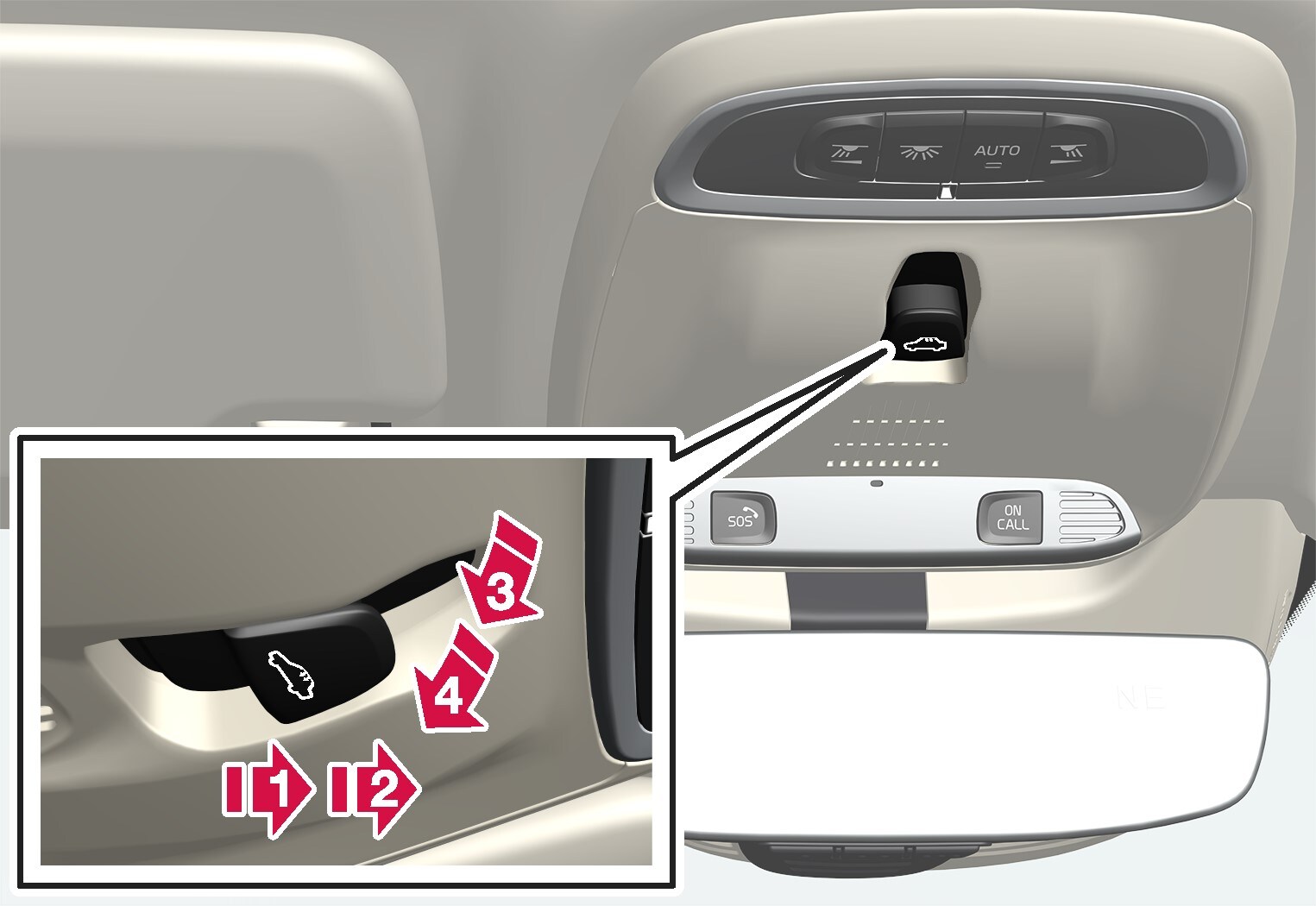

Operating with the control in the roof
Opening, manual
Opening, automatic
Closing, manual
Closing, automatic
Manual operation
Close the roof/blind by repeating the preceding procedure in reverse order - press the control forward/downward to the manual closing position instead.
The movement of the roof is stopped if the control is released or when the glass reaches the comfort position or the maximum opening or closing position.
참고
Automatic operation
Close the roof/blind by repeating the preceding procedure in reverse order - press the control forward/downward to the automatic closing position instead.
The movement of the roof is stopped when the glass reaches the comfort position or the maximum opening or closing position. The movement is also stopped if the control is operated again in the opposite direction to the direction of movement in progress.
The movement of the roof is not stopped when the glass reaches the comfort position when closing from maximum opening position.
Automatic operation - rapid opening/closing
The panorama roof and sun blind can be opened/closed simultaneously:
The movement of the roof is stopped when the glass reaches the comfort position or the closing position. The movement is also stopped if the control is operated again in the opposite direction to the direction of movement in progress.
The movement of the roof is not stopped when the glass reaches the comfort position when closing from maximum opening position. The movement of the blind is never stopped when the roof reaches comfort position.

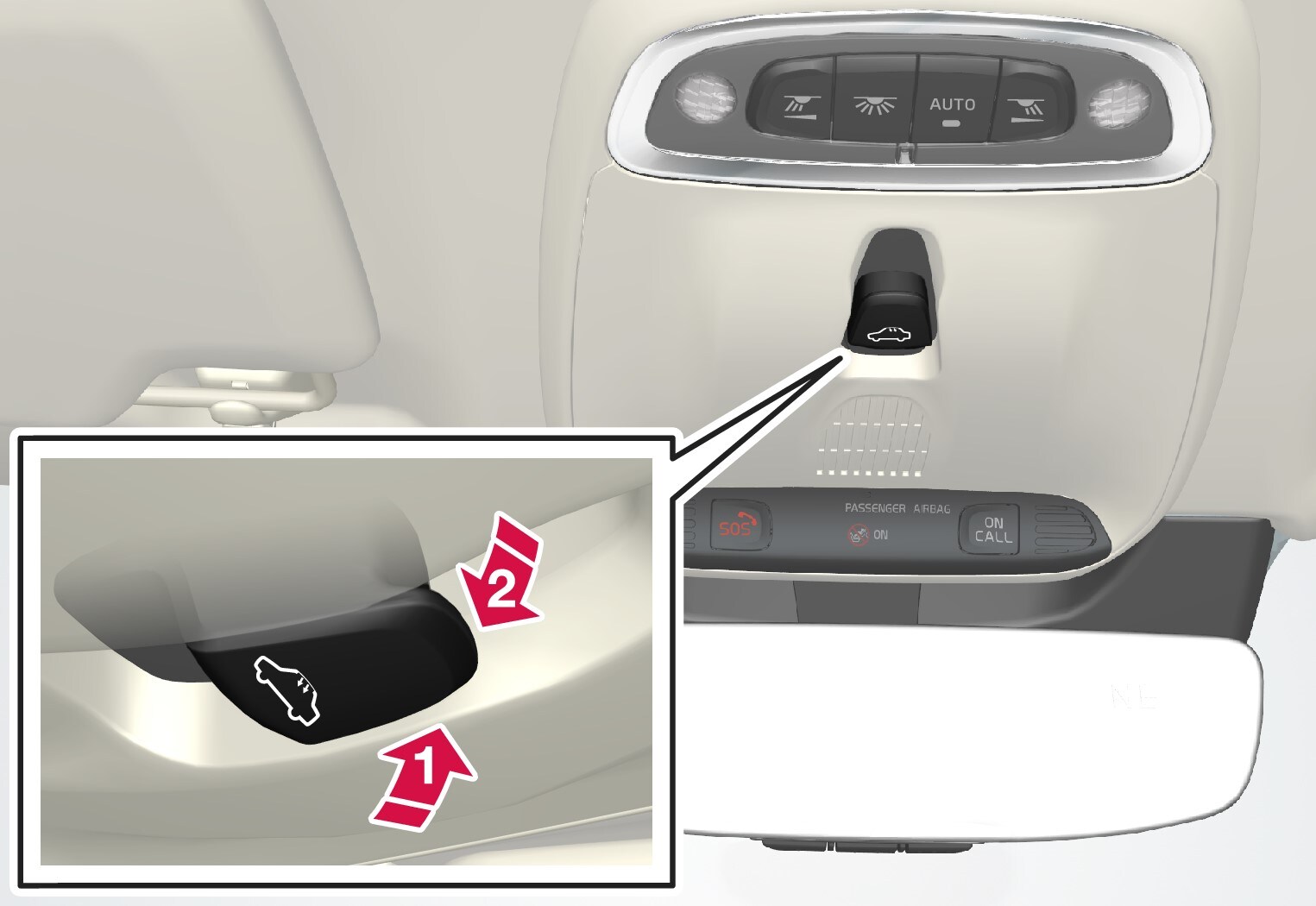

Ventilation position
Ventilation position, vertically at the rear edge.
- Open by pressing the control upward.
- Close by pressing the control forward/downward.
When the ventilation position is selected the front glass cover is raised at its rear edge. If the sun blind is fully closed when ventilation position is selected, then it opens automatically approx. 50 mm.
Automatic closing of the sun blind
When the car is parked in sunny/hot weather, the sun blind closes automatically 15 minutes after the car is locked. This is in order to lower the passenger compartment temperature and protect the car upholstery from being bleached by the sun.
The function is deactivated when the car is supplied from the factory and can be activated/deactivated:
Press .
Select Auto Close Sun Curtain to activate/deactivate.
Closing using the remote control key, central locking button or door handles
Remote control key
until the panorama roof and sun blind start moving towards the closed position. Then release the lock button.Movement stops if the remote control key's lock button is pressed again or when the roof/blind has reached the closed position.

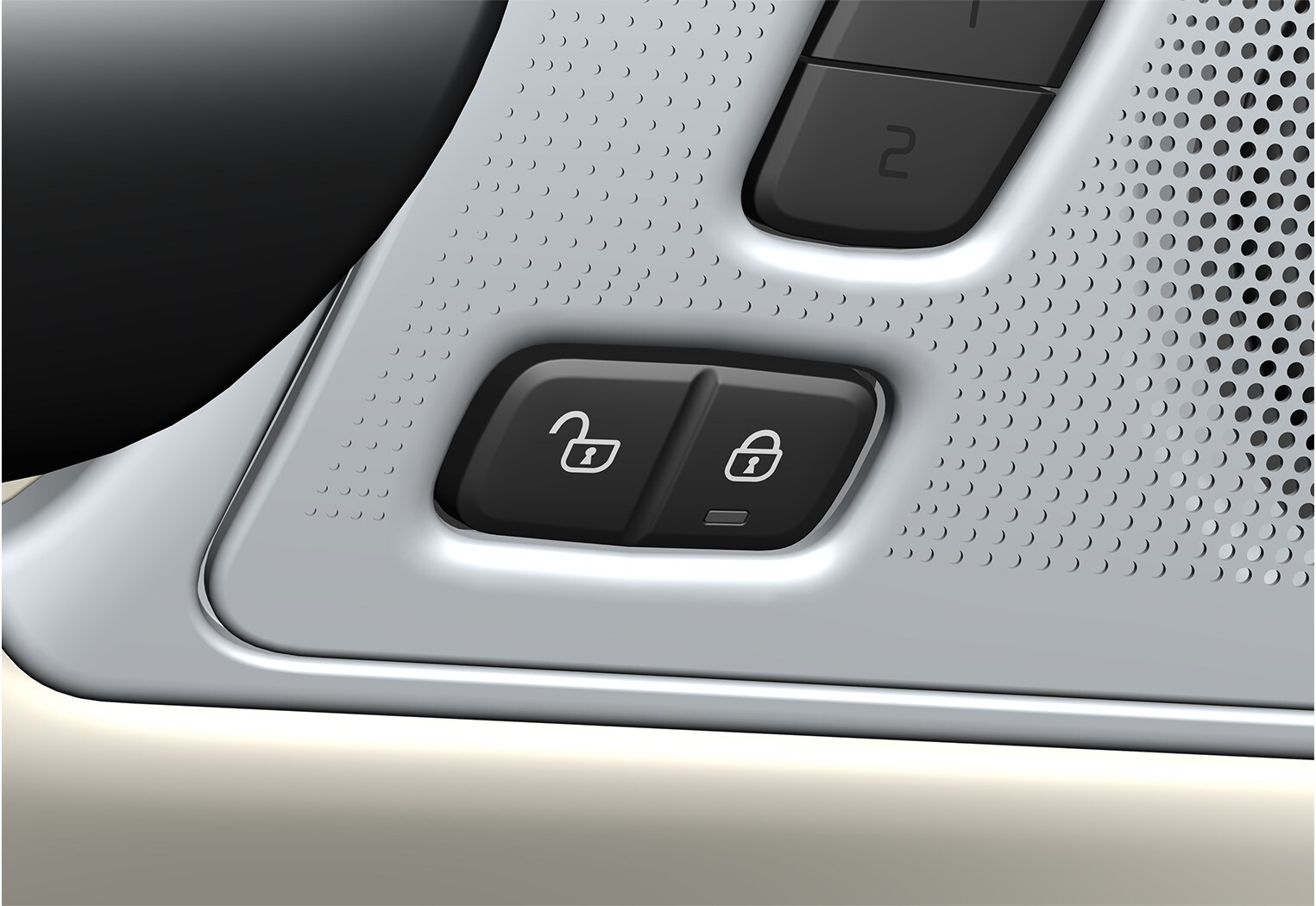

Central locking button
Central locking button.
until the panorama roof and sun blind start moving towards the closed position. Then release the button.Movement stops if the central locking button is pressed again or when the roof/blind has reached the closed position.
Door handle
Cars equipped with keyless locking/unlocking* have a touch-sensitive recess on the outer part of the outside door handle.
Movement stops if you place your finger against the door handle recess again or once the roof/blind has reached the closed position.
경고
중요
Pinch protection
The panorama roof has pinch protection that is triggered if the glass cover or the sun blind is blocked by an object during closing. In the event of blocking, the glass cover or sun blind stops and is then opened automatically to approx. 50 mm from the blocked position (or to full ventilation position). The pinch protection is also active when the glass cover or sun blind is opened.
If the pinch protection has deployed then it is still possible to operate the glass cover and/or sun blind once more in the same direction without pinch protection, if this is done within 10 seconds after pinch protection deployment. It is therefore possible to override the pinch protection when closing has been interrupted e.g. if ice has formed around the glass cover, by continually pressing the control forward/downward until the glass cover and/or sun blind is closed.
