Lamp replacement - headlamps

All of the headlamp bulbs are replaced via the engine compartment. First loosen and remove the whole headlamp.

Removing the headlamp

Set the car's electrical system in key position 0, see Key positions - functions at different levels.

P3-1320-S60/V60/V60H Headlight removal 2

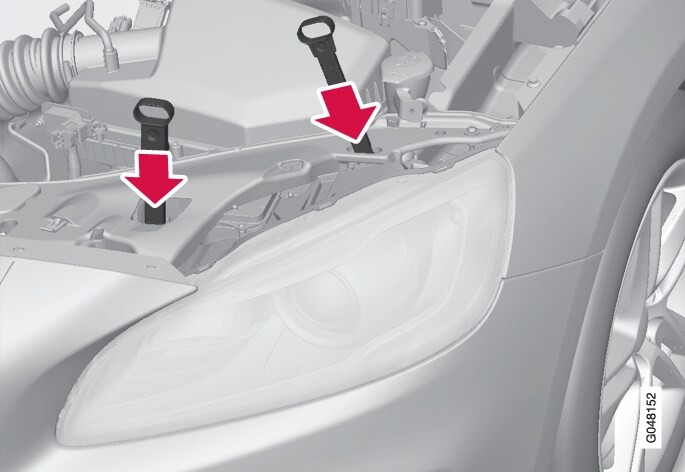

Ikon röd pil 1Pull out the headlamp's locking pins.

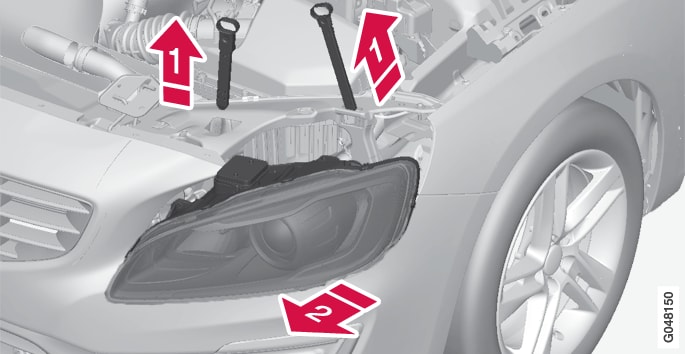

Ikon röd pil 2Release the headlamp by alternately tilting and pulling it out.


Do not pull the electrical cable, only the connector.
P3-1320-S60/V60/V60H Headlight removal 3

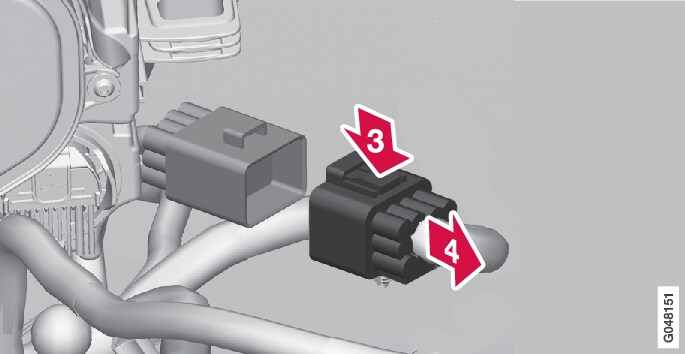

Ikon röd pil 3 Detach the headlamp connector by pressing down the clip with your thumb.
Ikon röd pil 4 At the same time, guide out the connector with your other hand.
5.Lift out the headlamp and place it on a soft surface to avoid scratching the lens.
6.Replace the bulb in question.

Securing the headlamp

P3-1320-S60/V60/V60H Headlight fastening
Plug in the connector, a clicking sound should be heard.

Reinstall the headlamp and locking pins. The short pin is fitted closest to the radiator grille. Check that they are firmly inserted.

Check the lighting.

The headlamp must be mounted and the connector firmly connected before the lighting is switched on or the remote control key is inserted into the ignition switch.
