Detachable towbar - specifications

Detachable towbar - specifications

Specifications for detachable towbar.

Updated 08/06/2023

Specifications

p3007 dragkrok

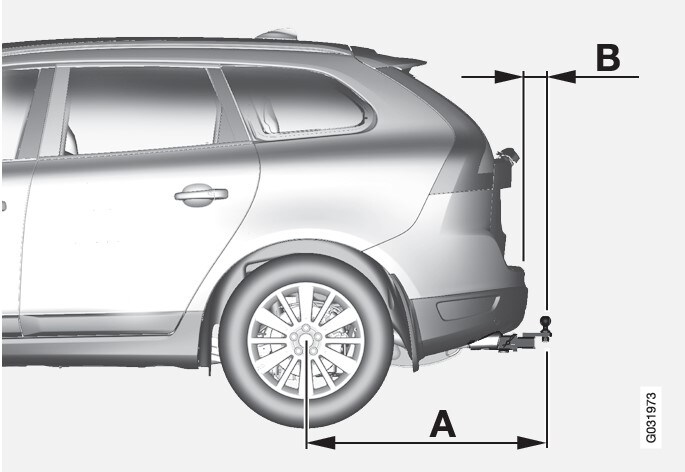

P3-835-xc60 Tow hitch A-B

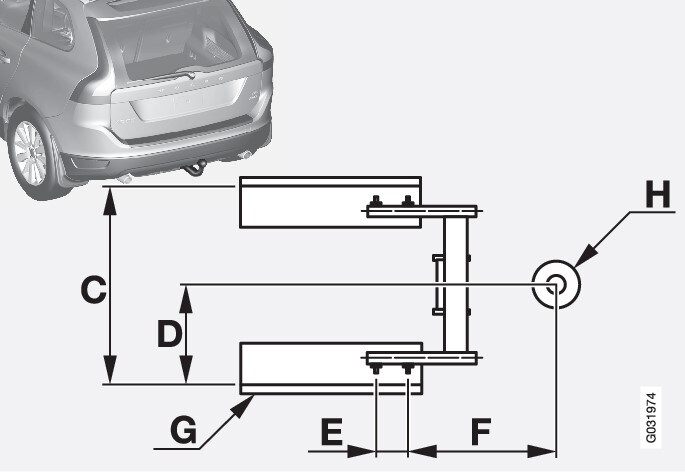

P3-835-xc60 Tow hitch C-H

Dimensions, mounting points (mm)
A	1036
B	111
C	855
D	428
E	109
F	326
G	Side member
H	Ball centre
