Seats, front - electrically operated

The car's front seats have different setting options for optimum seating comfort. The power seat can be moved forward/backward and up/down. The front edge of the seat cushion can be raised/lowered. The backrest angle can be changed.

Power seat*

p3007 elmanövrerad stol
  1. Ikon röd cirkel 1Front edge of seat cushion up/down
  2. Ikon röd cirkel 2Seat forward/backward and up/down
  3. Ikon röd cirkel 3Backrest rake

The power front seats have overload protection which is tripped if a seat is blocked by an object. If this happens, go to key position I or 0 and wait a short time before adjusting the seat again.

Only one movement (forward/back/up/down) can be made at a time.

Power lumbar support*

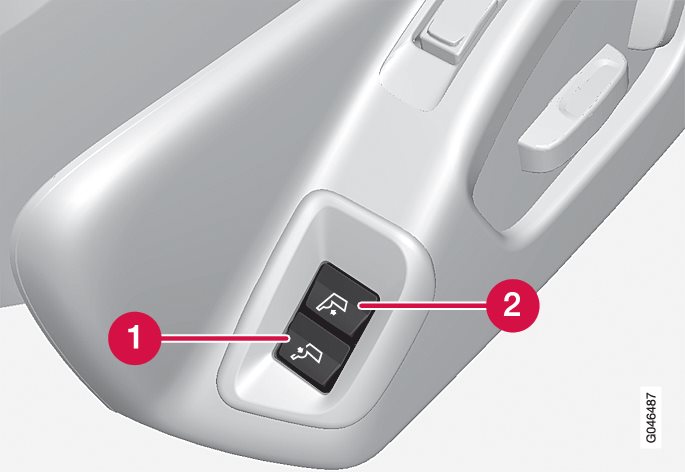

P3-1220-XC60 Electrical operated lumbar support
  1. Ikon röd cirkel 1Lumbar support, increasing
  2. Ikon röd cirkel 2Lumbar support, decreasing


The seats can be adjusted for a certain time after unlocking the door with the remote control key without the key in the ignition switch. Seat adjustment is normally made in key position I and can always be made when the engine is running.

Seat with memory function*

p3007 stol med minnesfunktion

The memory function stores settings for the seat and the door mirrors.

Store setting

Ikon röd cirkel 1Memory button
Ikon röd cirkel 2Memory button
Ikon röd cirkel 3Memory button
Ikon röd cirkel 4Button for storing settings
Adjust the seat and the door mirrors.
Hold the button depressed to store settings while depressing one of the memory buttons.

Using a stored setting

Hold one of the memory buttons depressed until the seat and the door mirrors stop. If you release the button then the movement of the seat will stop.

Emergency stop

If the seat accidentally begins to move, press one of the setting buttons for the seat or memory buttons in order to stop the seat.

Restarting to reach the seat position stored in the key memory is performed by pressing the unlock button on the remote control key. The driver's door must then be open.


Risk of crushing! Make sure that children do not play with the controls. Check that there are no objects in front of, behind or under the seat during adjustment. Ensure that none of the rear seat passengers is in danger of becoming trapped.

Heated seats

For heated seats, see Heated front seats* and Heated rear seat*.

  1. * Option/accessory.
