Fuses - in engine compartment

Fuses in the engine compartment protect engine and brake functions, amongst other things.

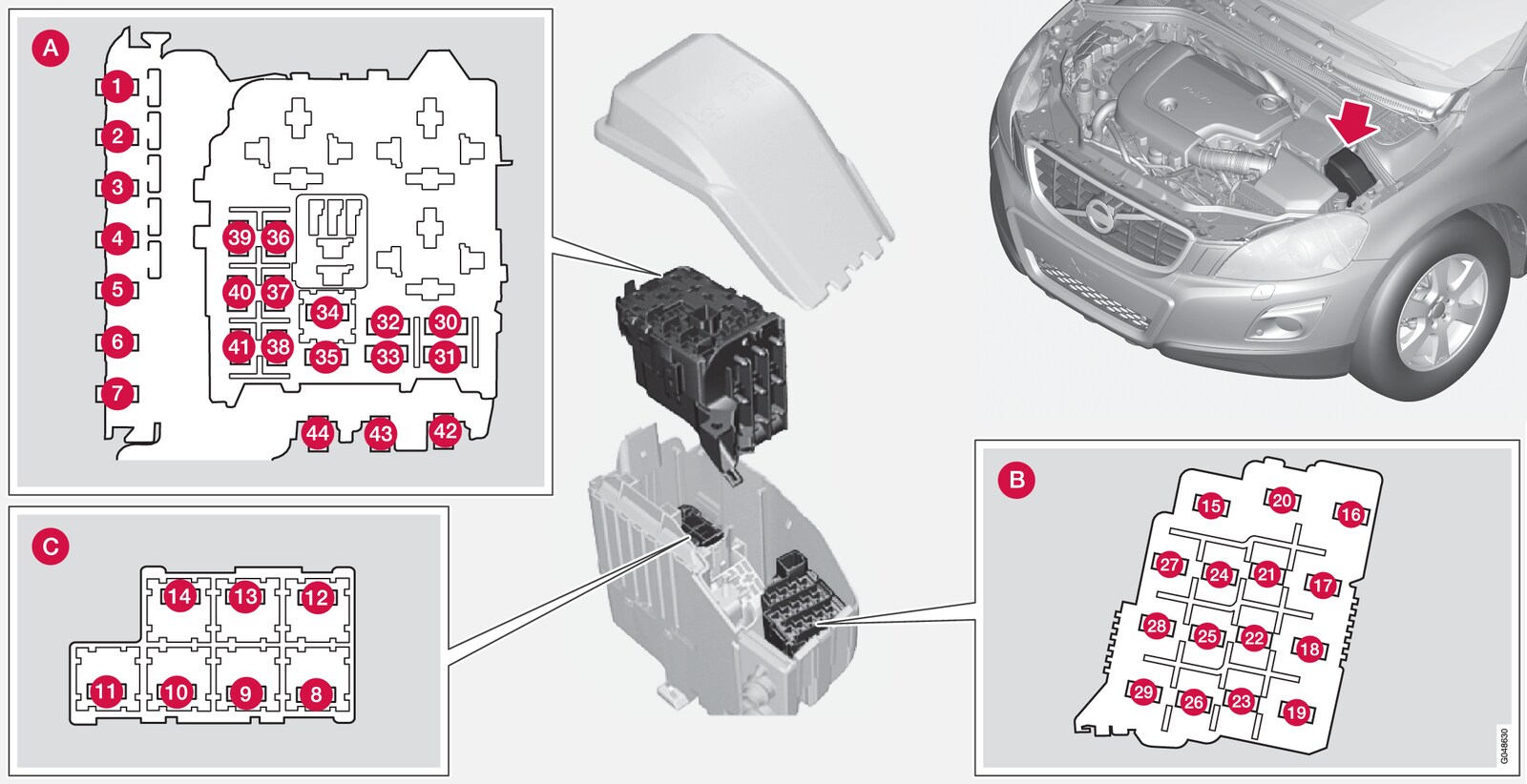

P3-835 XC60 Fusebox in engine compartment

General fuses, engine compartment

On the inside of the cover there are tweezers that facilitate the procedure for the removal and fitting of fuses.

Positions (see preceding illustration)

Ikon röd cirkel AEngine compartment, upper
Ikon röd cirkel BEngine compartment, front
Ikon röd cirkel CEngine compartment, lower

These fuses are all located in the engine compartment box. The fuses in (C) are located under (A).

On the inside of the cover is a label that shows the location of the fuses.

  • Fuses 1-7 and 42-44 are of the "Midi Fuse" type and must only be replaced by a workshop1.
  • Fuses 8-15 and 34 are of the "JCASE" type and should be replaced by a workshop1
  • Fuses 16-33 and 35-41 are of the "Mini Fuse" type.
Ikon röd cirkel 1

Primary fuse for the central electronic module (CEM) under the glovebox2


Ikon röd cirkel 2Primary fuse for the central electronic module (CEM) under the glovebox50
Ikon röd cirkel 3

Primary fuse for central electrical unit in cargo area2


Ikon röd cirkel 4

Primary fuse for relay/fuse box under the glovebox2

Ikon röd cirkel 5

Primary fuse for relay/fuse box under the glovebox2


Ikon röd cirkel 6--
Ikon röd cirkel 7

Electric additional heater*2


Ikon röd cirkel 8

Heated windscreen*, left-hand side


Ikon röd cirkel 9Windscreen wipers30
Ikon röd cirkel 10Parking heater*25
Ikon röd cirkel 11

Ventilation fan2


Ikon röd cirkel 12

Heated windscreen*, right-hand side


Ikon röd cirkel 13ABS pump40
Ikon röd cirkel 14ABS valves20
Ikon röd cirkel 15Headlamp washers*20
Ikon röd cirkel 16Headlamp levelling*; Active Xenon headlamps - ABL*10
Ikon röd cirkel 17Primary fuse for the central electronic module (CEM) under the glovebox20
Ikon röd cirkel 18 ABS5
Ikon röd cirkel 19Adjustable steering force*5
Ikon röd cirkel 20Engine control module; Transmission control module; Airbags10
Ikon röd cirkel 21Heated washer nozzles*10
Ikon röd cirkel 22--
Ikon röd cirkel 23Headlamp control5
Ikon röd cirkel 24--
Ikon röd cirkel 25- -
Ikon röd cirkel 26--
Ikon röd cirkel 27Relay coils5
Ikon röd cirkel 28Auxiliary lamps*20
Ikon röd cirkel 29Horn15
Ikon röd cirkel 30

Relay coil in main relay for engine management system; Engine control module (4-cyl. 2.0 l3, 5, 6-cyl.)

Ikon röd cirkel 31Transmission control module15
Ikon röd cirkel 32

Solenoid clutch A/C (not 4-cyl. 2.0 l4, not 5-cyl. diesel); Supporting coolant pump (4-cyl. 2.0 l diesel)


Ikon röd cirkel 33

Relay coil in relay for solenoid clutch A/C (not 5-cyl. diesel); Relay coil in relay for coolant pump (1.6 l petrol Start/Stop); Relay coils in central electrical unit in engine compartment cold zone (Start/Stop)

Ikon röd cirkel 34

Start relay2

Ikon röd cirkel 35

Ignition coils (1.6 l petrol, engine B4204T7); Glow control module (5-cyl. diesel)

Engine control module (4-cyl. 2.0 l3); Ignition coils (5, 6-cyl. petrol); Capacitor (6-cyl.)20
Ikon röd cirkel 36Engine control module (petrol except 4-cyl. 2.0 l4)10

Engine control module (1.6 l diesel, 5-cyl. diesel)

Engine control module (4-cyl. 2.0 l3)20
Ikon röd cirkel 37

Valves (1.6 l petrol); mass air flow sensor (1.6 l, 4-cyl. 2.0 l3); Thermostat (4-cyl. 2.0 l petrol3); EVAP valve (4-cyl. 2.0 l petrol3); Cooling pump for EGR (4-cyl. 2.0 l diesel)


Mass air flow sensor (5-cyl. diesel, 6-cyl.); Control valves (5-cyl. diesel); Injectors (5, 6-cyl. petrol); Engine control module (5, 6-cyl. petrol)

Ikon röd cirkel 38

Solenoid clutch A/C (5, 6-cyl.); Valves (1.6 l, engine B4204T7, 5, 6-cyl.); Engine control module (6-cyl.); Solenoids (6-cyl. without turbo); Actuator motors, intake manifold (6-cyl. without turbo); Mass air flow sensor (engine B4204T7, 5-cyl. petrol); Oil level sensor (5-cyl. diesel)

Valves (4-cyl. 2.0 l3); Oil pump (4-cyl. 2.0 l petrol3); Lambda-sond, centre (4-cyl. 2.0 l petrol3); Lambda-sond, rear (4-cyl. 2.0 l diesel) 15
Ikon röd cirkel 39

Lambda-sonds (1.6 l petrol, engine B4204T7); Lambda-sond (5-cyl. diesel); Control module, radiator roller cover (1.6 l diesel, 5-cyl. diesel)

Lambda-sond, front (4-cyl. 2.0 l3); Lambda-sond, rear (4-cyl. 2.0 l petrol3); EVAP valve (5, 6-cyl. petrol); Lambda-sonds (5, 6-cyl. petrol)15
Ikon röd cirkel 40

Coolant pump (5-cyl. petrol); Crankcase ventilation heater (5-cyl. petrol); Oil pump automatic gearbox (5-cyl. petrol Start/Stop)

Ignition coils (4-cyl. 2.0 l petrol3)15

Diesel filter heater (diesel)

Ikon röd cirkel 41

Control module, radiator roller cover (5-cyl. petrol)


Solenoid clutch A/C (4-cyl. 2.0 l petrol3)


Crankcase ventilation heater (5-cyl. diesel); Oil pump automatic gearbox (5-cyl. diesel Start/Stop)

Solenoid clutch A/C (4-cyl. 2.0 l diesel); Glow control module (4-cyl. 2.0 l diesel); Oil pump (4-cyl. 2.0 l diesel)15
Ikon röd cirkel 42Coolant pump (4-cyl. 2.0 l petrol3)50

Glow plugs (diesel)

Ikon röd cirkel 43Cooling fan (1.6 l, 4-cyl. 2.0 l petrol, 5-cyl. petrol)60

Cooling fan (6-cyl., 4-cyl. 2.0 l diesel, 5-cyl. diesel)

Ikon röd cirkel 44Power steering100
  1. 1 An authorised Volvo workshop is recommended.
  2. 2 For cars with the Start/Stop function this fuse location is empty - see instead Fuses - in the engine compartment's cold zone.
  3. * Option/accessory.
  4. 3 Does not apply to the B4204T7 engine.
  5. 4 However, does apply to the B4204T7 engine.
