XC90 Twin Engine


Warning triangle

Use the warning triangle to warn other road users if the car is stationary in traffic.

Also activate the hazard warning flashers.

Storage spaces

The warning triangle is located in the compartment on the inside of the tailgate.

Folding up the warning triangle

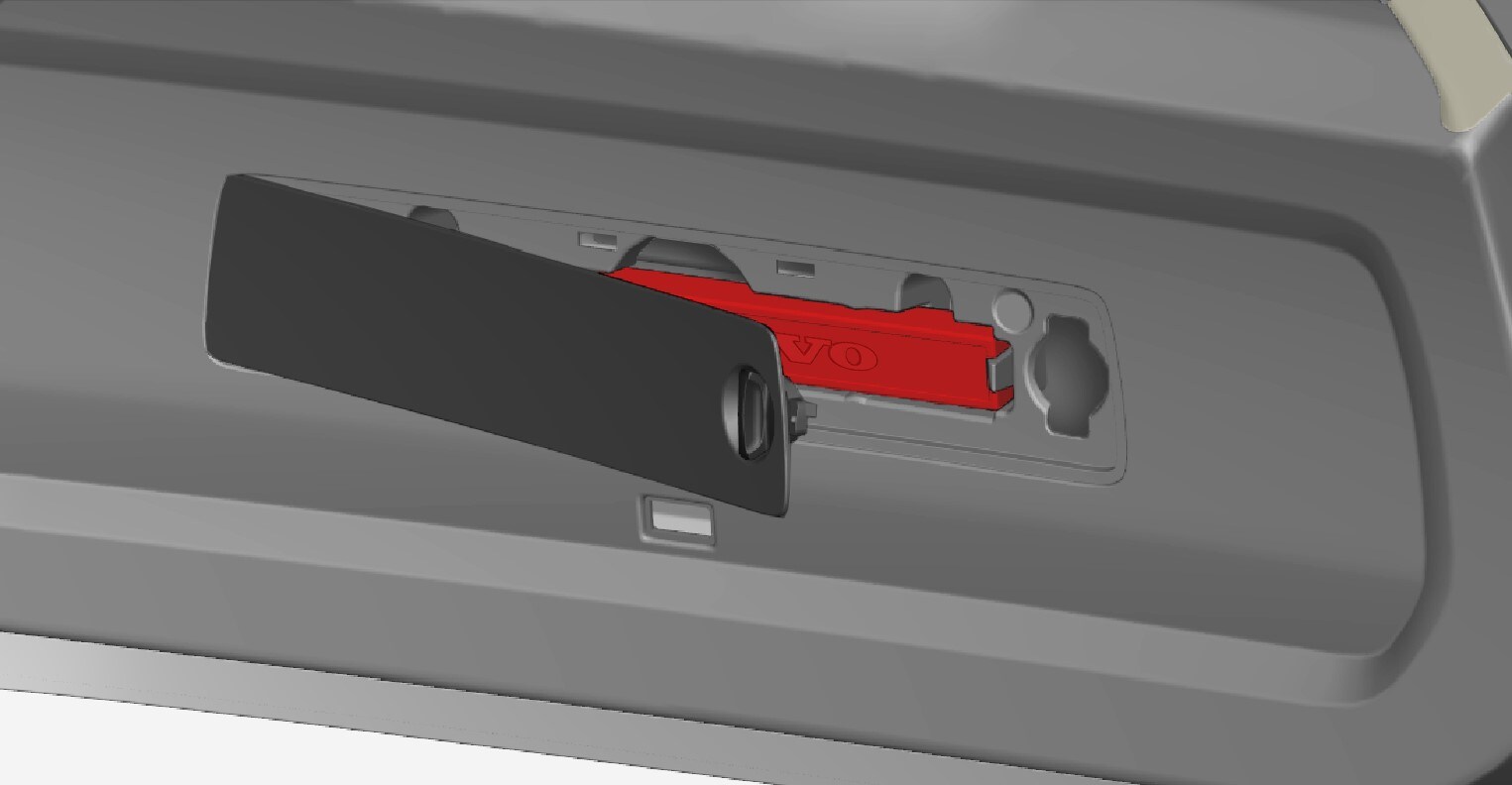

Open the hatch by first turning the knob 90 degrees and then pulling the hatch from its attachment in the top and bottom edges.

Press the latch that secures the warning triangle slightly to the right and remove the case.

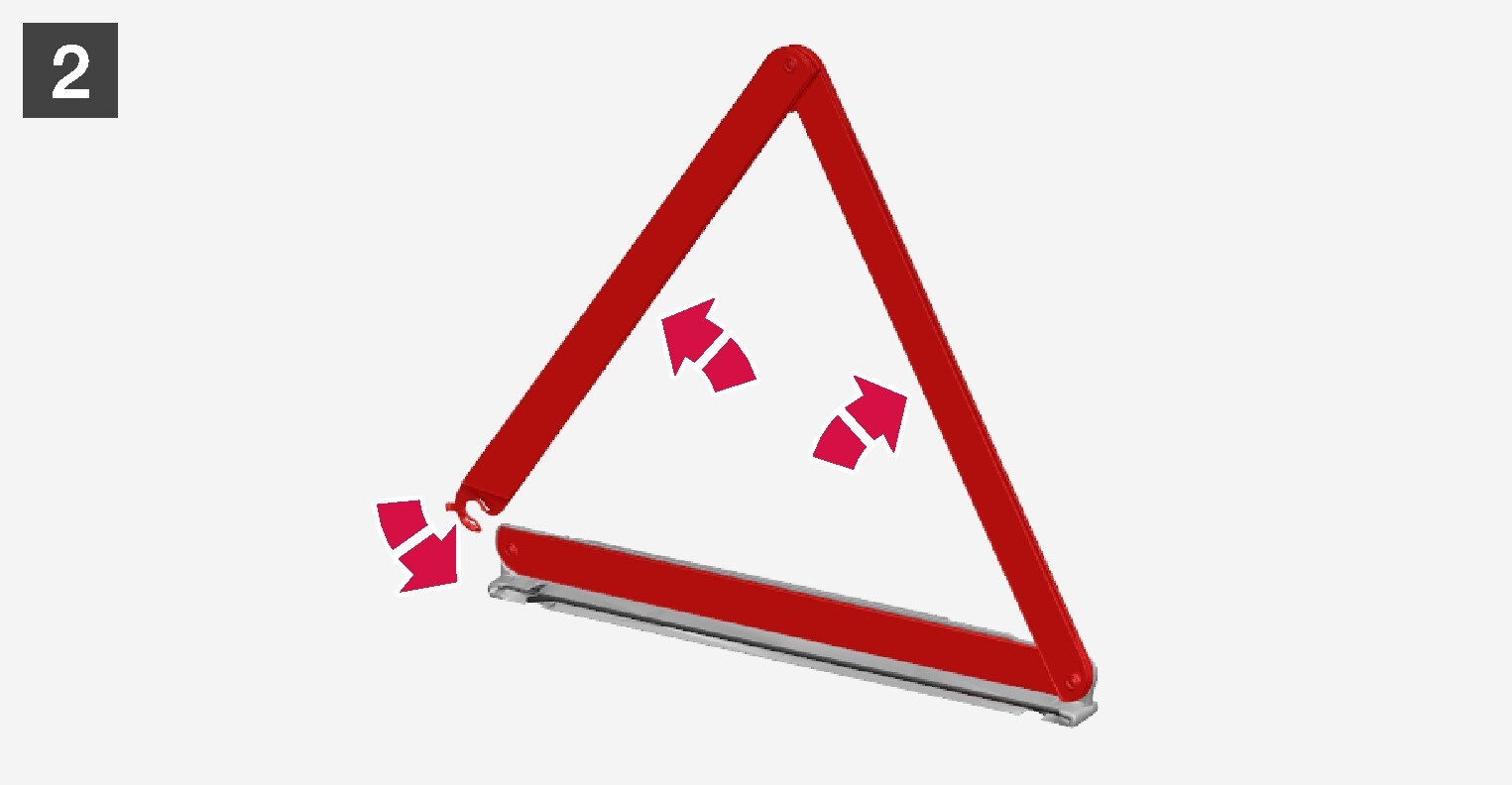

Remove the warning triangle from the case, unfold it and put the ends together.

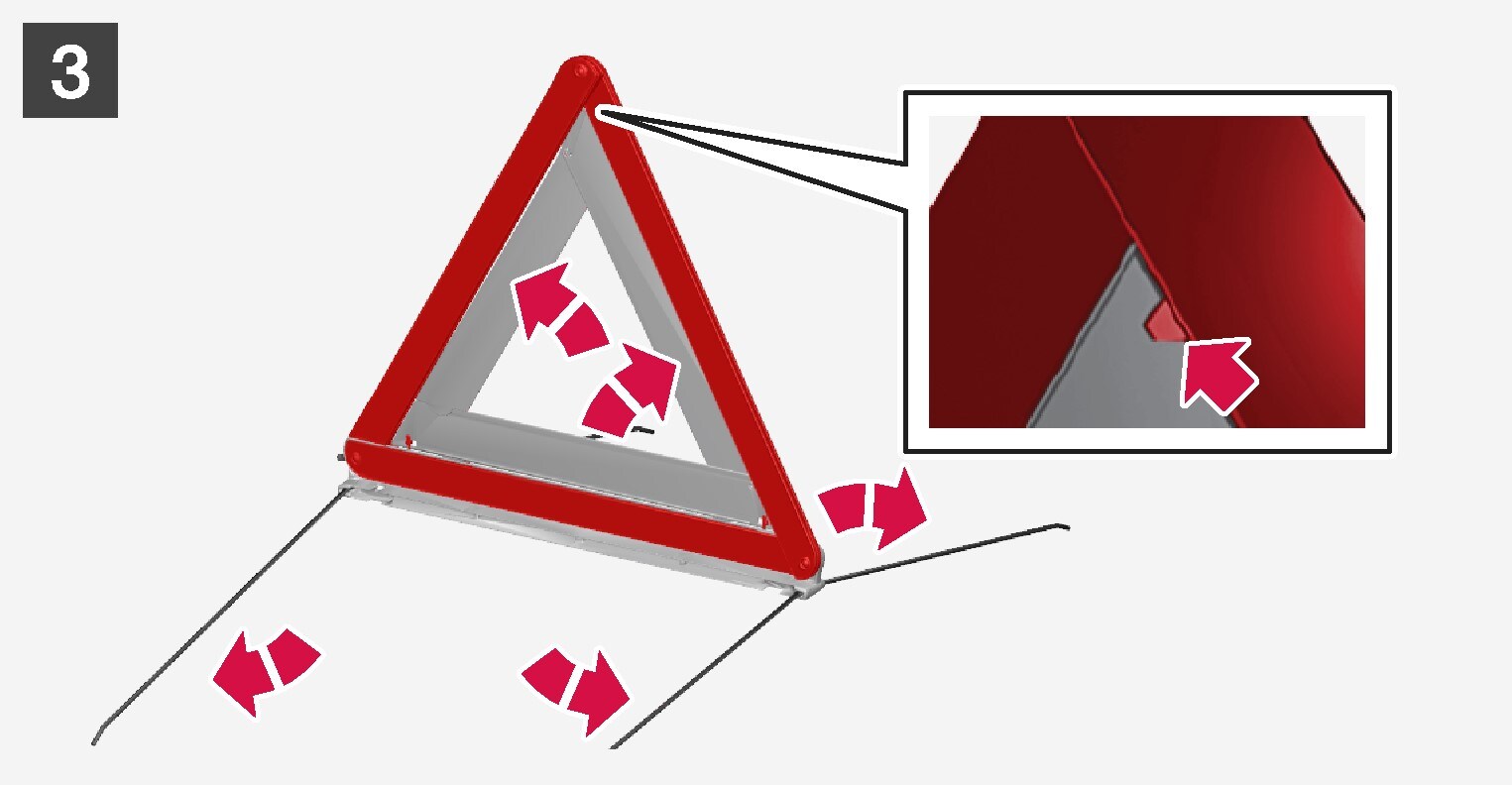

Fold out the warning triangle's support legs.

Follow the regulations for the use of a warning triangle. Position the warning triangle in a suitable place with regard to traffic.

Make sure that the warning triangle and case are properly secured in their storage space and that the hatch is fully closed after use.
