Locate the measurement you're looking for in the images first, then check the corresponding letter in the table below.
| Measurement | Millimeters | Inches | |
|---|---|---|---|
| A | Load length, floor, folded seat | 1821 | 71.7 |
| B | Load length, floor | 1033 | 40.7 |
| C | Wheelbase | 2875 | 113.2 |
| D | Length | 4787 | 188.5 |

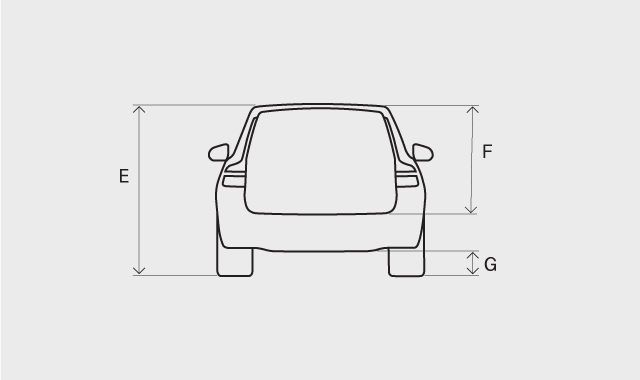

| E | Height1 | 1499 | 59.0 |
| F | Load height | 644 | 25.4 |
| G | Ground clearance1 | 197 | 7.8 |
| H | Width including folded-out wing mirrors | 2040 | 80.3 |
| I | Width including folded-in door mirrors | 1916 | 75.4 |
| J | Front wheel track | 1636–16492 | 64.4–64.92 |
| K | Rear track | 1621–16332 | 63.8–64.32 |
| L | Load width, floor | 1064 | 41.9 |
| M | Width | 1893 (18503) | 74.5 (72.83) |
