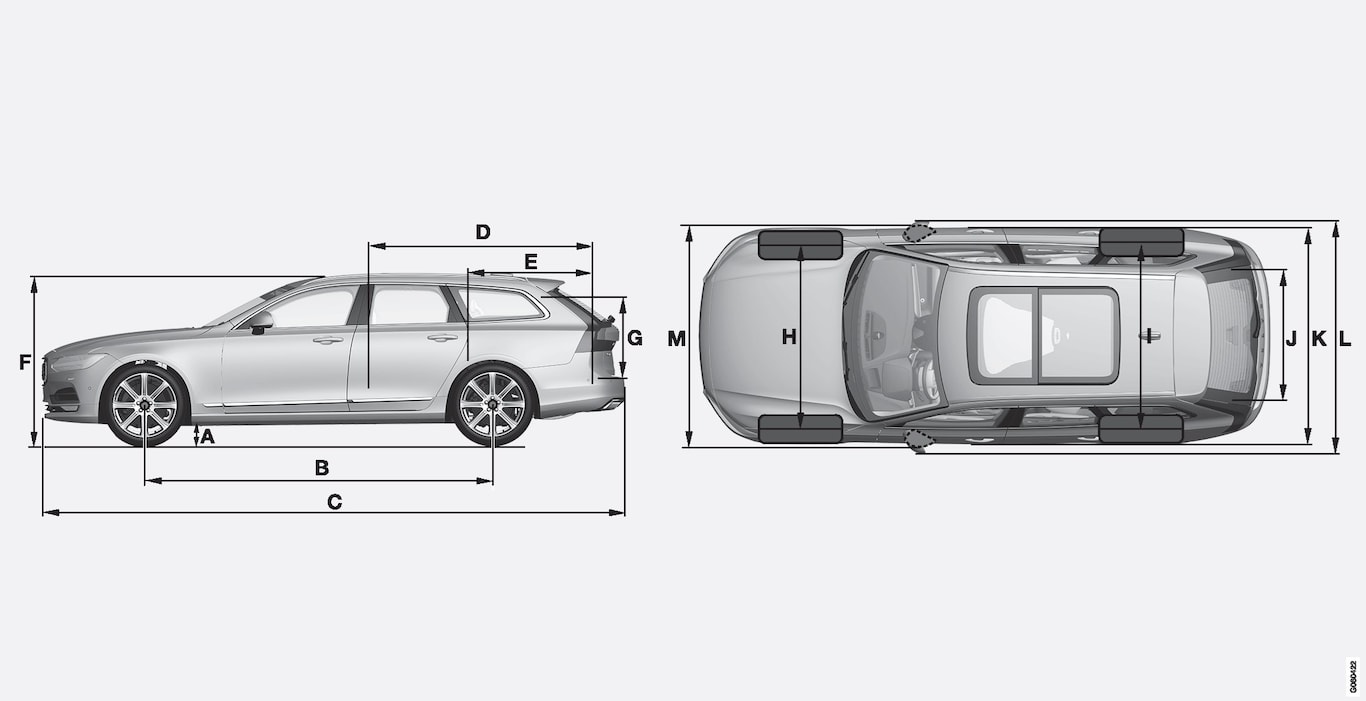

| Dimension | In. (mm) | |
|---|---|---|
| A | Ground clearance (curb weight + 2 people)1 | 7.8 (198) |
| B | Wheelbase | 115.8 (2941) |
| C | Length | 194.4 (4939) |
| D | Load length, floor, seatback down | 78.3 (1988) |
| E | Load length, floor | 45.4 (1153) |
| F | Height | 60.7 (1543) |
| G | Load height | 27.7 (704) |
| H | Track, front | 65.0 (1652)2 65.2 (1655)3 |
| I | Track, rear | 64.7 (1643)2 64.8 (1645)3 |
| J | Load width, floor | 44.5 (1130) |
| K | Width | 74.9 (1903)4 74.0 (1879)5 |
| L | Width incl. door mirrors (folded out) | 80.8 (2052) |
| M | Width incl. door mirrors (folded in) | 75.9 (1929) |
